QDMECH

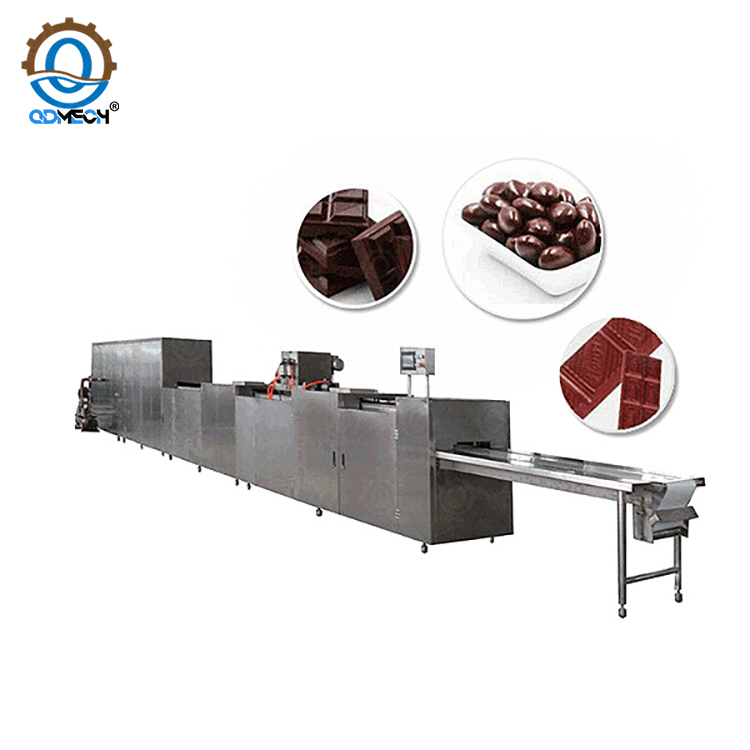

As a premier manufacturer and global supplier of advanced confectionery equipment, we proudly introduce our industrial-grade chocolate production line. Engineered for commercial-scale operations, this fully automated system transforms raw ingredients into flawless chocolate blocks with unparalleled efficiency and consistency. Designed to meet the rigorous demands of modern manufacturing facilities, it offers a seamless integration of processing stages to elevate your output capabilities.
End-to-end automated processing from feeding to demoulding
High-precision PLC and servo-driven control mechanisms
Modular architecture supporting diverse add-on devices
Robust construction tailored for continuous, high-capacity production
Step into the future of confectionery manufacturing with a system meticulously engineered to produce visually stunning and acoustically crisp chocolate blocks. From the moment the rich, aromatic cocoa paste enters the feeding mechanism, every phase is orchestrated with absolute precision. The deep, intoxicating scent of melting chocolate fills your facility as the advanced tempering unit meticulously aligns the cocoa butter crystals. This critical process ensures that each finished bar boasts a mirror-like, glossy finish and delivers that satisfying, sharp "snap" when broken, instantly signaling premium quality to the consumer.
The continuous, rhythmic hum of the servo-driven depositing heads guarantees that every mold is filled with flawless accuracy, eliminating inconsistencies and drastically reducing raw material waste. As the molds glide smoothly through the rapid cooling tunnels, the liquid gold solidifies into perfectly formed blocks, releasing effortlessly during the demoulding stage. This seamless integration of processes not only maximizes your daily output but also elevates the sensory experience of your final product, ensuring your customers enjoy a smooth, velvety, melt-in-the-mouth texture with every single bite.
| System Feature | Specification Details |
|---|---|
| Control System | Full automatic PLC controlled, Servo system |
| Automation Level | Fully Automatic |

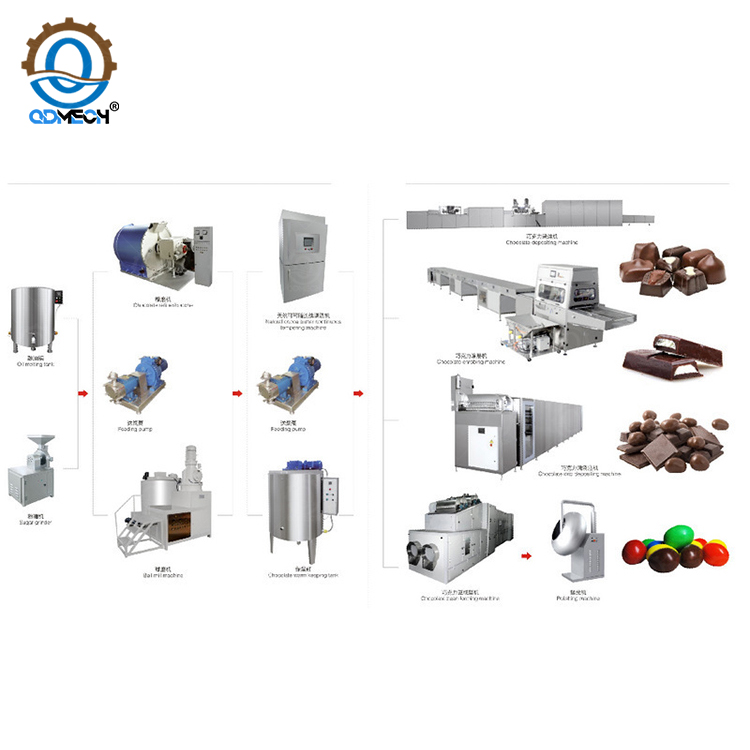

| Core Process | Feeding -> Tempering -> Depositing -> Cooling -> Demoulding |
| Add-on Devices | Auto Biscuits Feeder, Auto Wafer Feeder, Auto Sprinkler, etc. |

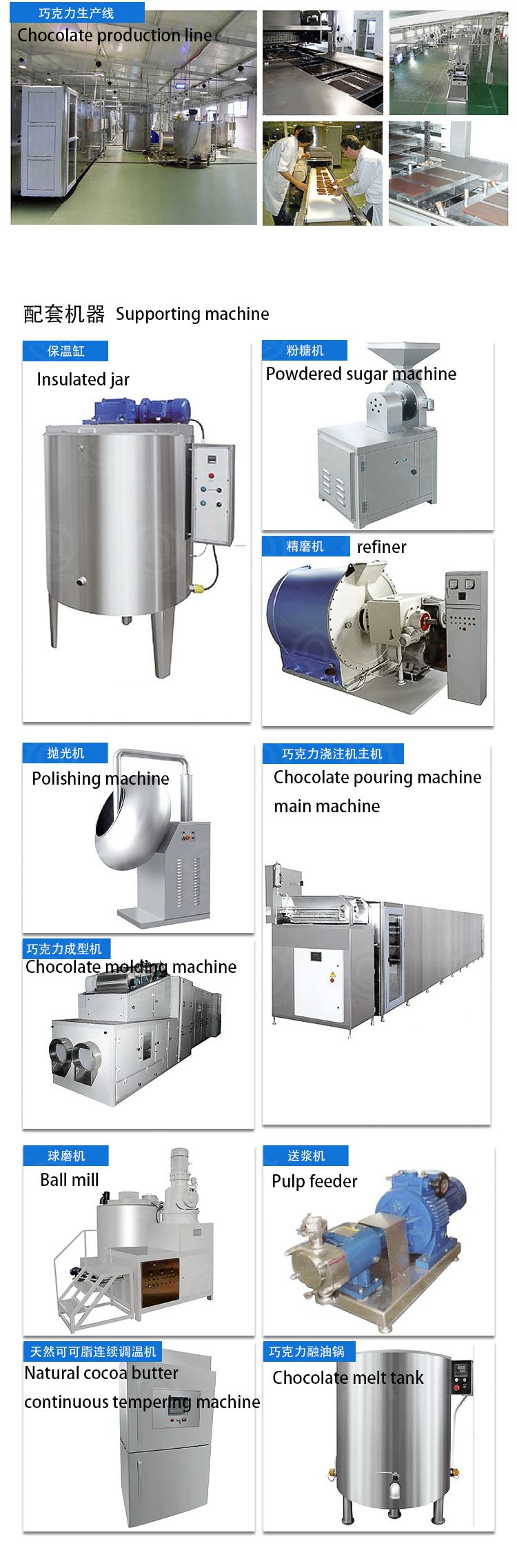

| Product Name | Size | Power | Weight |
|---|---|---|---|
| Sugar Grinding Machine | 1250*1000*1750 mm | 7.5KW | 500kg |
| Melting Machine | Φ1200*1300mm | 9KW | 700kg |
| Conche and Refiner | 3320*2000*1950mm | 37KW | 7000Kg |
| Thermal Cylinder | d1700*2100mm | 3KW | 1500Kg |
Elevate your facility's capabilities with machinery designed for unparalleled reliability and operational excellence. This production line is not just a collection of mechanical parts; it is a synchronized ecosystem that streamlines your entire workflow, significantly reducing downtime while maximizing profitability and product consistency.
Flawless Consistency: The advanced servo-driven mechanisms ensure that center fillings are larger, more stable, and perfectly centered, completely preventing product contamination during the injection phase.
Reduced Maintenance: The highly stable, fully automatic PLC control framework minimizes mechanical wear and tear, drastically cutting down on long-term maintenance costs and unexpected operational halts.
Adaptable Architecture: Easily integrate new modules as your product catalog expands. Customers can choose add-on devices accordingly and change them for new products whenever needed.
Optimized Resource Utilization: Despite its massive production capabilities, the system is engineered to utilize power and space efficiently, allowing for better factory layout planning and reduced overhead.
Sourcing multiple machines from different vendors often leads to integration nightmares, software conflicts, and inflated costs. Our comprehensive turnkey solution eliminates these headaches by providing a fully unified ecosystem that handles every single step of the journey, from raw material processing to the finished, demoulded delight.
Seamless Integration: Every module, from the sugar grinding and melting tanks to the rapid cooling tunnels, communicates flawlessly, preventing bottlenecks and ensuring a continuous flow of chocolate paste.
Cost Efficiency: Purchasing a complete, unified line significantly reduces procurement, shipping, and installation expenses compared to piecing together disparate equipment.
Single-Point Accountability: Rely on one dedicated supplier for all your operational needs, simplifying troubleshooting, maintenance, and future upgrades.
In high-volume manufacturing, precision is the dividing line between profit and loss. By harnessing state-of-the-art automation, this system completely removes human error from the equation, delivering consistent excellence while drastically lowering your facility's labor overhead.
Intelligent PLC Interface: An intuitive touchscreen allows operators to monitor and adjust complex parameters in real-time with minimal training required.
Servo-Motor Accuracy: Achieve pinpoint accuracy in depositing weights, ensuring every single chocolate block meets strict quality and dimensional standards.
Maximized Yield: The automated precision minimizes spills, overfills, and rejected batches, translating to a significantly higher yield of premium-grade products.
Data-Driven Consistency: The system remembers specific recipe profiles, allowing for instant switch-overs with guaranteed repeatability across different production shifts.
The secret to premium chocolate lies entirely in the precise crystallization of cocoa butter. Our advanced tempering technology guarantees that your chocolate achieves the perfect crystalline structure, resulting in a product that looks, feels, and tastes extraordinary to the end consumer.
Mirror-Like Gloss: Precise, multi-stage temperature management ensures a flawless, shiny surface that instantly attracts consumers on the retail shelf.
The Perfect Snap: Controlled cooling environments create a crisp, satisfying acoustic snap when the chocolate is broken, a hallmark of expertly tempered cocoa.
Effortless Demoulding: Optimal crystallization prevents the chocolate from sticking to the molds, ensuring smooth release, reducing product defects, and speeding up the overall cycle time.
Consumer tastes evolve rapidly, and your production capabilities must keep pace to remain competitive. This highly flexible platform empowers you to pivot your product offerings swiftly without the need to invest in entirely new production lines.
Multi-Product Capability: Effortlessly switch between manufacturing pure chocolate blocks, center-filled bars, dual-color treats, and complex nut-mixed varieties.
Plug-and-Play Add-ons: Quickly attach the Auto Biscuits Feeder, Auto Wafer Feeder, or Auto Sprinkler to instantly diversify your product portfolio with textured inclusions.
Future-Proof Design: The modular architecture ensures that as market trends shift towards new flavors or formats, your facility is always ready to adapt and conquer the demand.
Maintaining impeccable hygiene is absolutely non-negotiable in the food processing industry. We have meticulously engineered every inch of this machinery to exceed international safety standards, protecting your brand's reputation and ensuring total consumer safety.
Premium SUS304 Stainless Steel: All core contact parts are crafted from high-grade, food-safe, corrosion-resistant stainless steel, completely preventing rust and contamination.
Sanitary Construction: Smooth surfaces and crevice-free welding eliminate potential bacterial hiding spots, ensuring the pure, unadulterated flavor of your cocoa remains intact.
Rapid Cleaning Protocols: Quick-release mechanisms and easily accessible components allow for fast, thorough washdowns between different production runs or allergen changes.
Compliance Ready: The structural integrity and material choices are designed to seamlessly pass rigorous CE and ISO hygiene audits.
Whether you are scaling up from artisanal batches or outfitting a massive, high-output industrial facility, this equipment adapts to your specific volume requirements. We tailor the configuration to match your exact spatial constraints and output ambitions.
Flexible Output: Capable of handling diverse production volumes, the system smoothly scales to meet the demands of intense, daily commercial manufacturing.
Custom Layouts: We expertly design the physical footprint of the line to integrate seamlessly into your existing factory floor plan, optimizing your available space.
Tailored Processing: Adjust cooling tunnel lengths, tempering stages, and depositing head configurations based on your unique recipe rheology and cycle time requirements.
Investing in heavy industrial machinery requires absolute confidence in post-installation support. We stand firmly behind our equipment with a comprehensive service package designed to keep your operations running smoothly year after year, eliminating downtime anxiety.
Global On-Site Installation: Our expert engineers are available to travel to your facility to install, calibrate, and commission the entire line to perfection.
Comprehensive Training: We provide in-depth operational and maintenance training for your on-site staff to ensure optimal, safe machine handling.
Continuous Parts Supply: Enjoy total peace of mind with a guaranteed, long-term supply of genuine replacement components and consumables.
24/7 Remote Diagnostics: Access round-the-clock technical support for rapid troubleshooting, ensuring any operational hiccups are resolved instantly.
Selecting the right equipment partner is a critical strategic decision for your manufacturing future. We combine decades of heavy engineering expertise with a deep, nuanced understanding of confectionery science to deliver solutions that drive real, measurable growth for your facility.
Proven Reliability: Our machines are rigorously stress-tested under heavy-duty conditions to ensure they withstand the relentless demands of continuous, 24-hour operation.
Innovation-Driven Engineering: We continuously refine our PLC algorithms and mechanical designs to keep you at the absolute forefront of food manufacturing technology.
Dedicated Partnership: From the initial factory layout consultation to post-installation support, we act as an extension of your operational team, deeply committed to your long-term success.
To assist you in your procurement process, we have compiled answers to the most common technical inquiries regarding our chocolate production systems.
The servo system provides exact, programmable control over the depositing pistons. This eliminates the mechanical lag found in traditional pneumatic systems, allowing for a larger volume of center filling to be injected with perfect centering, completely preventing the filling from leaking or contaminating the outer chocolate shell.
Yes, the system is designed with versatility in mind. By integrating the Auto Sprinkler or utilizing specialized depositing plates, the line can seamlessly process and distribute various inclusions, ensuring an even spread of nuts, crisps, or fruits throughout the chocolate blocks without clogging the nozzles.
The power requirements are distributed based on the mechanical intensity of each phase. The Sugar Grinding Machine requires 7.5KW, the Melting Machine operates at 9KW, the heavy-duty Conche and Refiner utilizes 37KW for ultra-fine milling, and the Thermal Cylinder maintains temperature at an efficient 3KW.
Fat bloom occurs when cocoa butter crystallizes improperly, leaving white streaks on the surface. Our tempering unit uses precise, multi-stage heating and cooling zones to force the cocoa butter into the stable 'Form V' crystal structure. This rigorous thermal control permanently locks the fat in place, ensuring a long shelf life and a flawless, glossy appearance.
Not at all. The production line features a quick-release mold tracking system and a highly intuitive PLC interface. Operators can physically swap out the polycarbonate molds in minutes and select the corresponding pre-saved recipe profile on the touchscreen, allowing for rapid product changeovers with virtually zero downtime.
