Automatic Conveyor Meat Slicer Meat Slicing and Portioning Machine

The HLK-160A Meat Slicing and Portioning Machine is a high-performance industrial solution engineered for the continuous slicing and portioning of fresh meat, cheese, vegetables, and fruits. Designed for meat processing plants, central kitchens, and frozen food factories, this machine streamlines production lines with its efficient two-tier conveyor belt feeding system, ensuring high output and seamless integration with assembly line operations. It features a robust 1.25KW motor and precision components—including an imported German-made slicing blade, servo motor, and PLC controller—to guarantee sharp, consistent cuts and long-term durability.

Quantity:
Size:	940(L)680(W)1460(H)mm
Material:	stainless steel
Availability:





Inquiry Add to Cart AliExpress

Model:
HLK-160A
Brand:
QDMECH
Code:
AM-260529-002

Meat slicing machine Meat Portioning Machine Meat slicer meat cutter Meat Slicing and Portioning Machine Industrial Meat Slicer automatic meat slicer Adjustable Meat Slicer Conveyor Meat Cutter Touch Screen Meat Slicer

Product Advantage

Technical Parameters

Application Scenarios

Product Video

Product Advantage

1. This machine features a two-tier conveyor belt feeding system, enabling continuous production with high output and compatibility with assembly line operations.

2. Equipped with touchscreen controls and digital calibration, the machine ensures precise and consistent standards. Key components—such as the gearbox, servo motor, and PLC controller—are all imported to guarantee product quality. The German-made slicing blade is sharp and durable, ensuring high-quality slices.

3. The machine is equipped with a speed control system that allows adjustment of both cutting speed and conveyor belt speed. It features portioning and stacking functions to meet diverse customer requirements.

4. Utilizes conveyor belts for both feeding and discharge, ensuring neat product cuts and convenient operation, while enabling rapid packaging of finished products: Infeed conveyor belt width: 160 mm; Feed height: 90 mm.

5. Slice thickness can be adjusted from 1 mm to 30 mm according to customer requirements; cutting temperature range: -3°C to +15°C; capable of portioning or continuous slicing as required.

Technical Parameters

Item	Specification
Model	HLK-160A
Voltage	380V
Motor Power	1.25KW
Slicing Thickness	1–30mm (adjustable)
Cutting Temperature	-3℃ ~ +15℃
Infeed Conveyor Width	160mm
Infeed Height	90mm
Conveyor Size	1530(L)360(W)990(H)mm
Main Machine Size	940(L)680(W)1460(H)mm
Total Combined Size	2280(L)680(W)1460(H)mm
Net Weight	Approx. 390kg

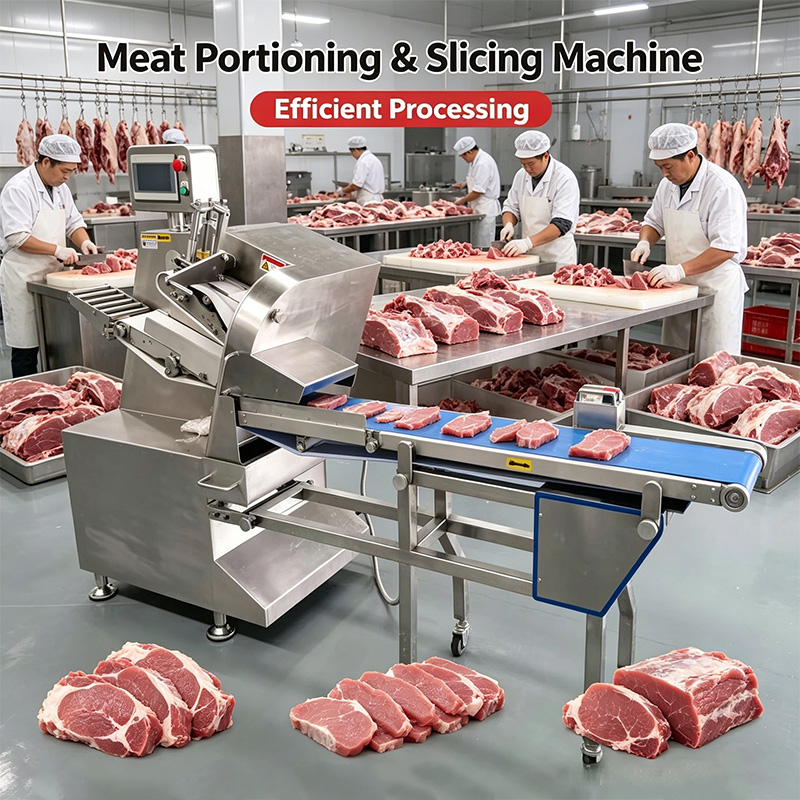

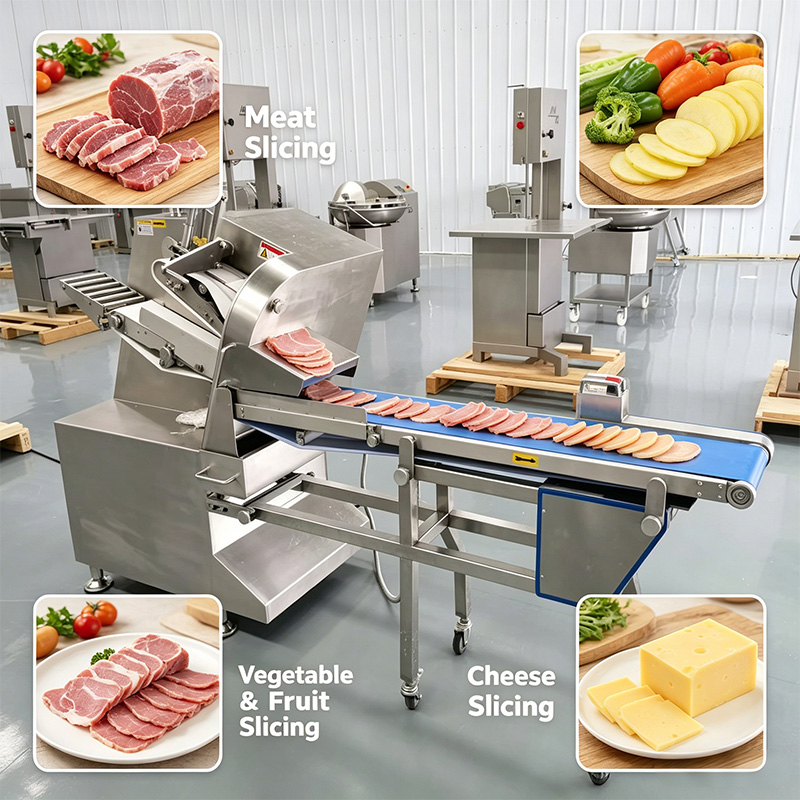

Application Scenarios

This HLK-160A automatic fresh meat slicer is specially designed for continuous portioning and slicing of fresh meat, and is also suitable for cheese, vegetables and fruits. It is widely used in meat processing plants, central kitchens, catering factories, frozen food factories and food production lines. With high efficiency and precise cutting, it supports streamlined production and fast packaging, meeting industrial and commercial large scale processing requirements.

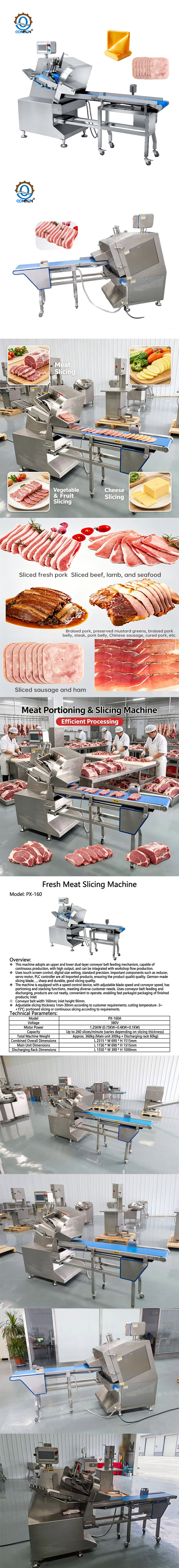

详情页

Product Video

FAQ

Q: What types of products can the HLK-160A process?

A: While primarily designed for fresh meat, this machine is also highly suitable for slicing cheese, vegetables, and fruits, making it a versatile addition to various food production lines.

Q: What is the adjustable range for slice thickness?

A: The slicing thickness can be precisely adjusted from 1mm to 30mm to meet diverse customer requirements, whether for thin deli slices or thicker portions.

Q: What is the operating temperature range for the product?

A: The machine is designed to operate effectively with products ranging from -3°C to +15°C, accommodating both chilled and slightly frozen items.

Q: Does the machine come with imported components?

A: Yes, key components such as the gearbox, servo motor, PLC controller, and the German-made slicing blade are all imported to ensure superior product quality and reliability.

Q: What are the dimensions of the full setup?

A: The total combined size of the machine, including the conveyors, is 2280mm (Length) x 680mm (Width) x 1460mm (Height). The main machine unit itself measures 940mm x 680mm x 1460mm.
