Precision Adjustable Horizontal Meat Slicer with Floating Conveyor Belt Design

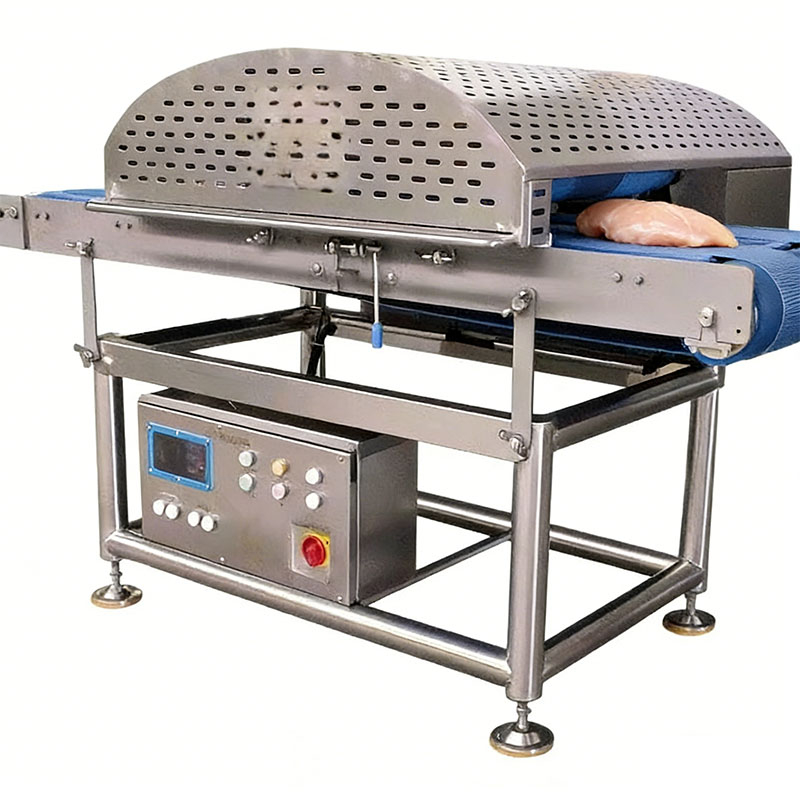

The Fresh Meat Slicer is a high-capacity industrial machine designed for precision horizontal slicing of fresh meat. Available in single (QD200-01) and dual (QD200-02) channel configurations, this slicer delivers exceptional throughput and versatility for demanding food production environments.

Quantity:
Size:	22009001430MM
Material:	stainless steel
Availability:





Inquiry Add to Cart AliExpress

Model:
QD200-01 QD200-02
Brand:
QDMECH
Code:
AM-260430-004

automatic fresh meat slicer Horizontal Meat Slicer Commercial Meat Slicing Machine High-Output Meat Slicer Floating Conveyor Belt Meat Slicer Precision Meat Slicer meat processing machine Industrial Meat Slicer automatic meat cutter Meat Slicing Equipment

Product Advantage

Technical Parameters

Application Scenarios

Product Video

Product Advantage

1. Floating conveyor belt design, suitable for meat cuts of varying thicknesses; can be configured with multiple layers of different thicknesses

2. Dual-channel operation for high output

3. Features non-slip belts for extended service life and precise cutting at the bottom layer

4. Features a lightweight tilting mechanism for easier blade replacement and cleaning

5. Reduces costs and improves production efficiency

6. Accurate cutting thickness

7. Can be connected to a strip-cutting machine to produce both strip and block-shaped products

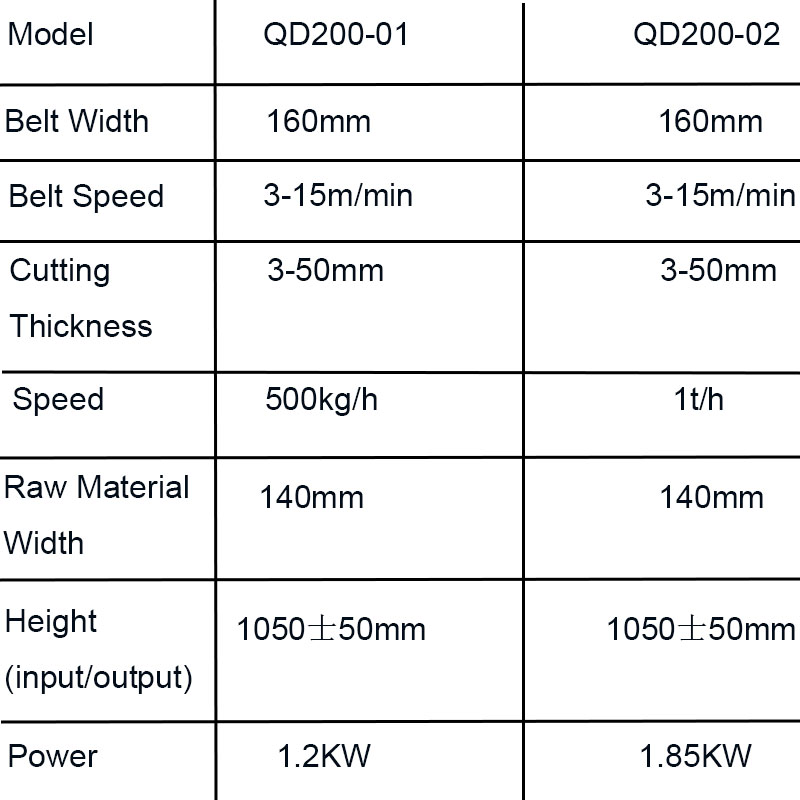

Technical Parameters

Model	QD200-01	QD200-02
Belt Width	160mm(single)	160mm(dual belt)
Belt Speed	3-15m/min	3-15m/min
Cutting Thickness	3-50mm	3-50mm
Cutting Speed	60pcs/min	120pcs/min
Raw Material Width	140mm	140mm
Height(input/output）	1050士50mm	1050士50mm
Power	1.2KW	1.85KW
Dimension	22009001430mm	220011501430mm

Application Scenarios

The fresh meat slicer is a versatile machine designed to cut meat into multiple horizontal slices. It is suitable for slicing fresh ingredients such as pork, beef and poultry into thin slices, and can also be used to butterfly chicken breasts.

Product Video

FAQ

Frequently Asked Questions (FAQ)

Q1: What is the main difference between the QD200-01 and QD200-02 models?

A: The primary difference is the number of cutting channels. The QD200-01 is a single-belt model with a cutting speed of 60 pieces per minute, while the QD200-02 is a dual-belt model that can process 120 pieces per minute, making it ideal for higher-volume production needs.

Q2: Can this machine handle different types of meat?
A: Yes, the QD200 series is designed to slice a variety of fresh meats, including pork, beef, and poultry. Its floating conveyor belt design allows it to accommodate meat cuts of varying thicknesses effectively.

Q3: How precise is the cutting thickness?

A: The machine offers highly accurate cutting thickness, adjustable from 3mm to 50mm. This allows you to produce slices that meet your exact specifications for different dishes or products.

Q4: Is the machine easy to clean and maintain?

A: Yes, it features a lightweight tilting mechanism that makes blade replacement and cleaning much easier. The non-slip belts are also designed for extended service life, reducing maintenance frequency.

Q5: Can this slicer be integrated with other equipment?

A:Absolutely. The QD200 series can be connected to a strip-cutting machine, allowing you to produce both strip and block-shaped products, which adds significant flexibility to your production line.
