Product Advantage

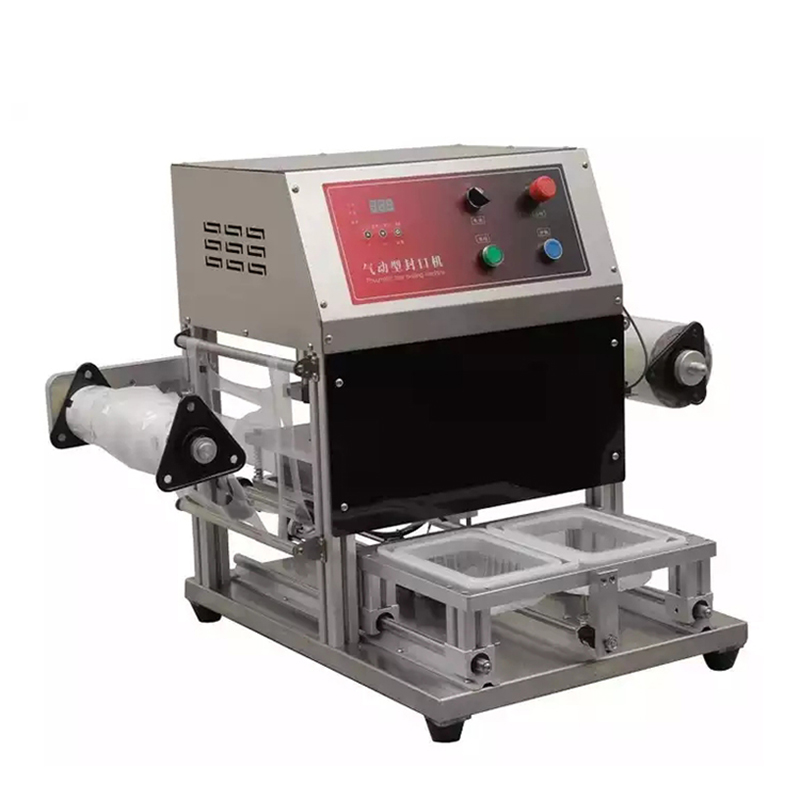

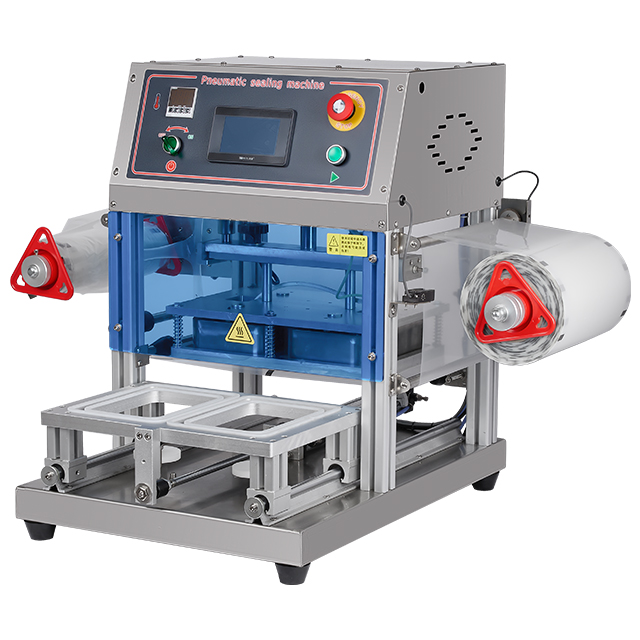

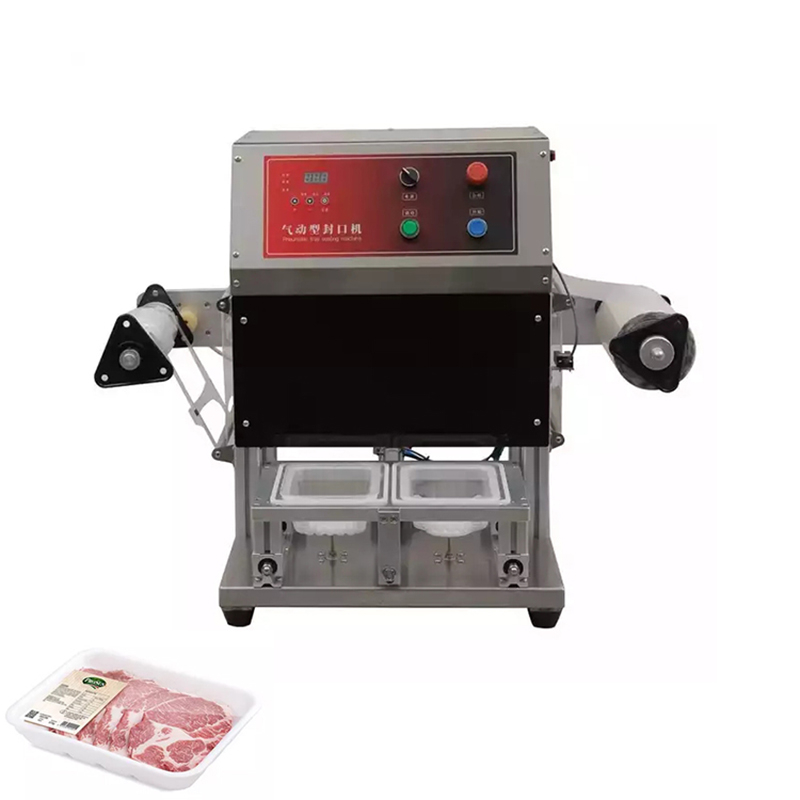

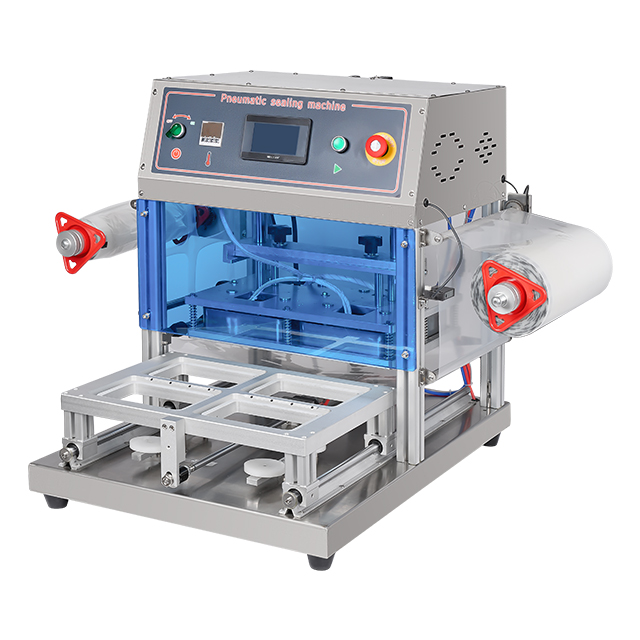

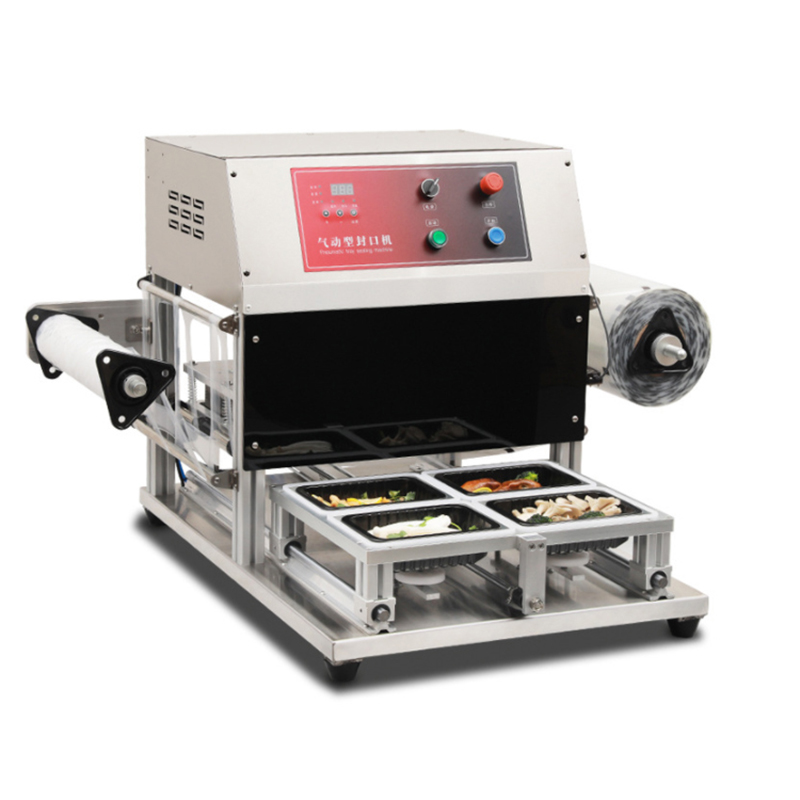

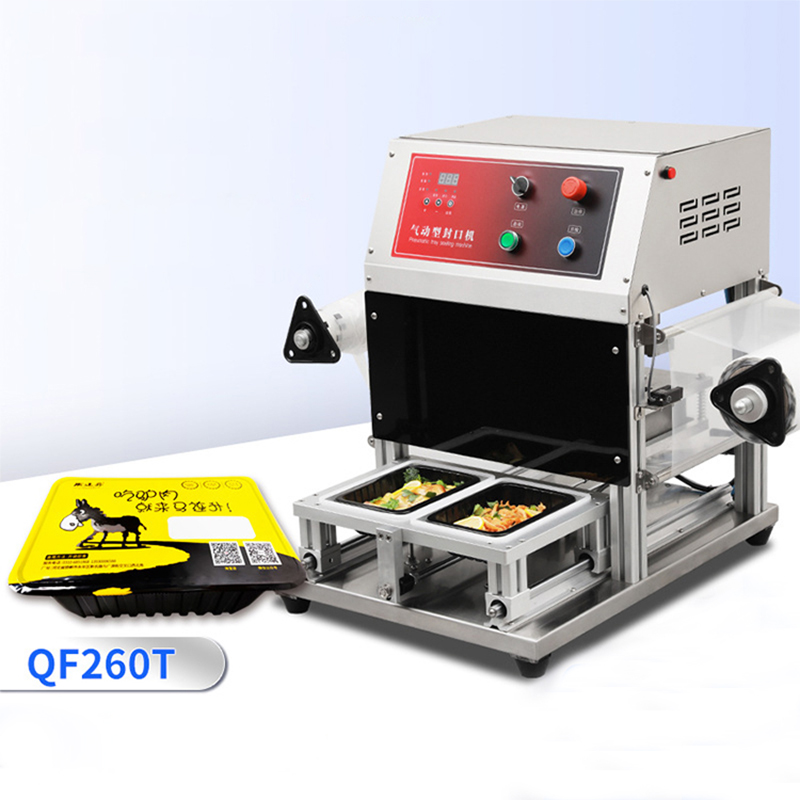

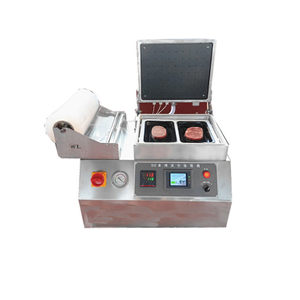

The Semi-Automatic Tray(Cup) Sealer has the following characteristics.
1. Stainless steel construction.
2. Mould is available to be changed.
3. Electronic temperature controller.
4. Friendly and simply in operation for user.
5. Mould in customized dimension is acceptable to be made according to your own tray.
Technical Parameters
| Desktop pneumatic sealing and packaging machine | |||
| style | 封口Sealing | 封口Sealing | 封口Sealing |
| 出厂价不含税运 | 930USD | 1500USD | 1800USD |
| 设备型号model | YH-280-T | YH-400-T | YH-520-T |
| 卷膜最大宽度(mm)Maximum width of roll film | 260 | 370 | 430 |
| 卷膜最大直径(mm)Maximum diameter of roll film | 200 | 200 | 200 |
| 气体置换率Gas replacement rate | ——— | ——— | ——— |
| 配气精度（%）Gas distribution accuracy (%) | ——— | ——— | ——— |
| 包装速度(times/min)Packaging speed | 5～6 | 5～6 | 5～6 |
| 产能（盒/小时）出1Production capacity (box/hour) output 1 | ≈360 | ≈360 | ≈360 |
| 产能（盒/小时）出2Production capacity (box/hour) output 2 | ≈640 | ≈640 | ≈640 |
| 产能（盒/小时）出4Production capacity (box/hour) output 4 | ——— | ≈1200 | ≈1200 |
| 电源(v/hz)source | 220/50 | 220/50 | 220/50 |
| 总功率(kw)Total power | 1.1 | 2.1 | 2.5 |
| 工作气压(Mpa)Working air pressure | 0.6～0.8 | 0.6～0.8 | 0.6～0.8 |
| 设备重量(kg)Equipment weight | 65 | 100 | 130 |
| 设备尺寸L×W×H(mm)Equipment size | 950×780×660 | 1020×950×660 | 1100×1130×740 |
| 包装毛重体积折算(kg)Conversion of packaging gross weight and volume | 115 | 135 | 165 |
| 包装箱尺寸L×W×H(mm)Packaging box size | 980×860×850 | 1080×1020×740 | 1350×1200×1000 |
| 托盒最大尺寸(mm)出1aximum size of tray (mm) out of 1 | 310×200×60（×1） | ||
| 托盒最大尺寸(mm)出2Maximum size of tray (mm) out of 2 | 200×140×60（×2） | 310×200×60（×2） | 340×260×110（×2） |
| 托盒最大尺寸(mm)出4Maximum size of tray (mm) out of 4 | ——— | 200×140×60（×4） | 260×170×110（×4） |
| 实际毛重Actual gross weight | 105 | 114 | 160 |
| 外包毛尺寸Outer hair size | 980*850*850 | 1100*1100*860 | 1350*1200*1000 |
| 设备图片 |  |  |  |
