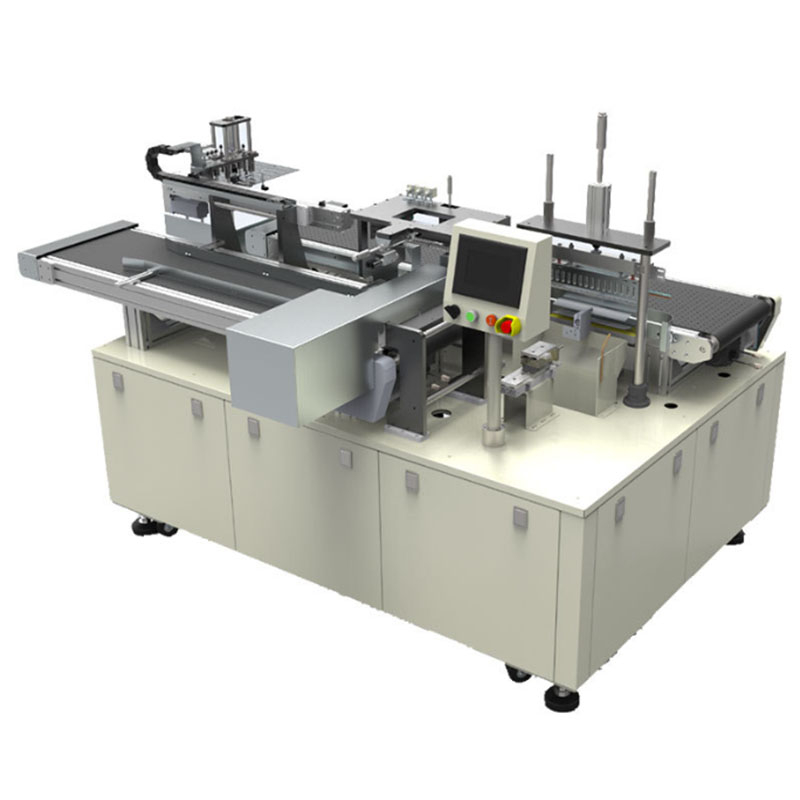

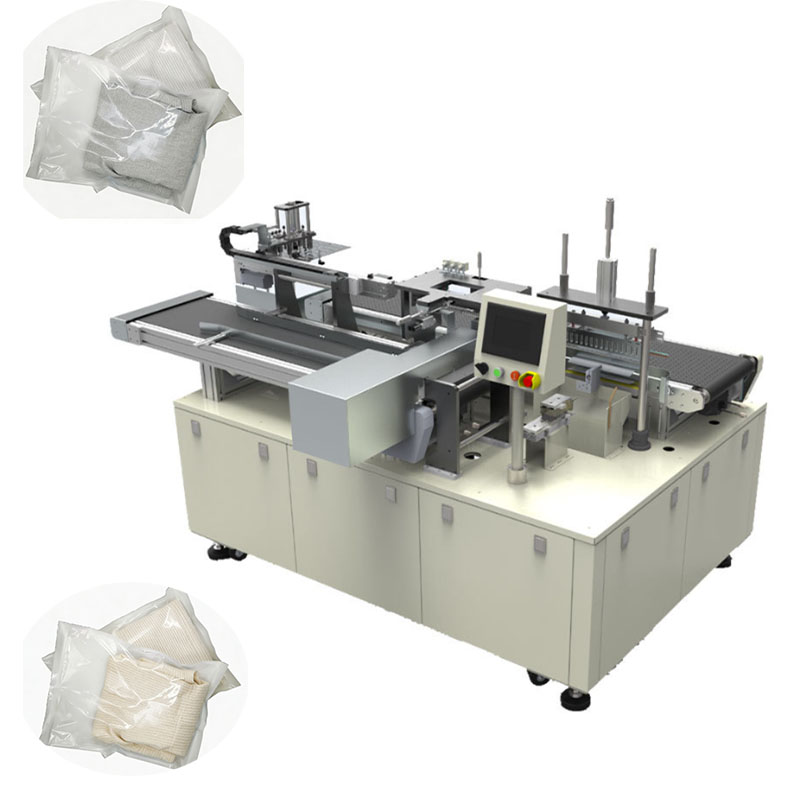

Intelligent PID Temperature Control Full Automatic Opening Filling Sealing Vacuum Bagging Machine

The machine is a high-performance, fully automatic bagging machine engineered for efficiency and precision in industrial packaging lines. Capable of processing 700-900 pieces per hour, this machine is designed to handle PP, PE, and OPP flat bags with ease. It features a robust all-in-one mechanism that automates bag opening, product insertion, sealing, and vacuuming.

Quantity:
Size:	1200* 800 *1020MM
Material:	stainless steel
Availability:





Inquiry Add to Cart Amazon

Model:
QD-820001
Brand:
QDMECH
Code:
AM-260522-002

Automatic Bagging Machine Pre-made Pouch Packing Machine High Speed Bagging Equipment Vacuum Sealing Bagging Machine PP PE OPP Flat Bag Packer Self-adhesive Bag Packaging Machine Box Wrapping Bagging Machine Servo Motor Driven Bagging System PLC Controlled Bagging Machine Intelligent PID Temperature Control Bagger

Product Advantage

Technical Parameters

Application Scenarios

FAQ

Product Advantage

1.High Precision & Stability: Equipped with servo motors for front and rear transport and high-performance PLC control, ensuring precise positioning and stable operation during high-speed packaging.

2.Intelligent Temperature Control: Features smart PID temperature controllers that maintain consistent heat for strong, neat, and aesthetically pleasing seals, preventing leakage or burning.

3.User-Friendly Operation: Designed with a human-machine interface (HMI) touch screen for easy parameter setting and monitoring, allowing operators to manage the machine with minimal training.

4.Durable Construction: Built with high-strength molds and corrosion-resistant materials for key components, ensuring long-term durability and resistance to wear in industrial environments.

Technical Parameters

Model	QD-820001
N.W	600kg
Power	4KW
Output Voltage	220V、1∮、 50-60Hz
Air Pressure	0.5-0.7Mpa
Dimension	L2690 X W1580X H1510mm
Applicable Product Size	Length:100-200mm Width:50-150mm Height:10-40mm
Types of Prefabricated Bags	PP、PE、OPP flat pockets
Efficiency	700-900pcs/h

Application Scenarios

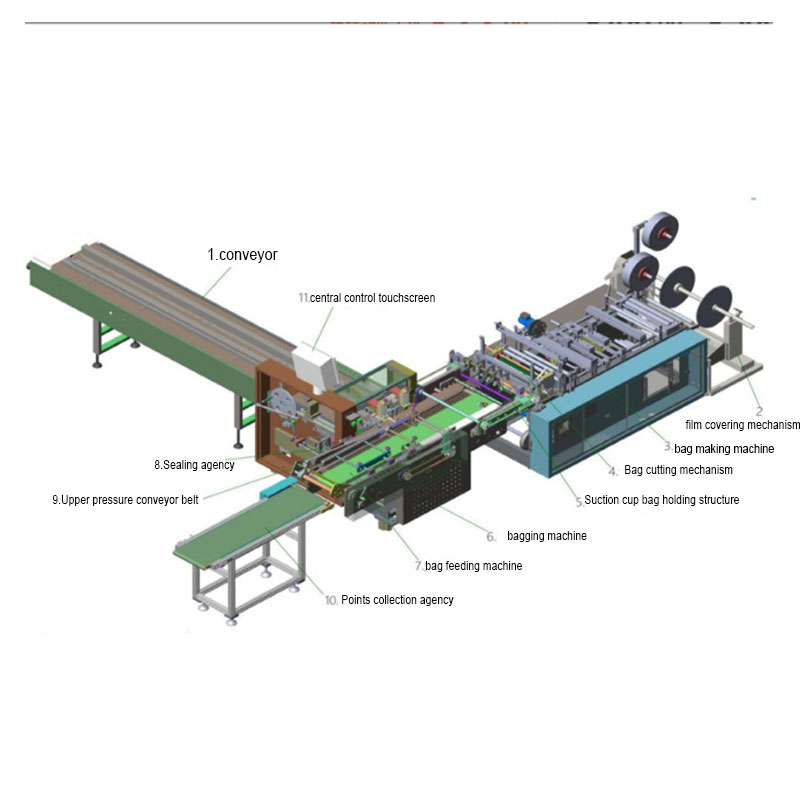

This high-speed automatic bagging machine is designed for the efficient packaging of various products into PP, PE, and OPP flat pockets. Ideal for food processing plants, pharmaceutical factories, hardware manufacturers, and daily chemical industries, this machine automates the entire process of bag opening, product loading, sealing, and vacuuming (if required). With a production efficiency of 700-900 pieces per hour, it significantly enhances packaging throughput for small to medium-sized items ranging from 100-200mm in length, making it a perfect solution for businesses seeking to streamline their packaging line and reduce labor costs.

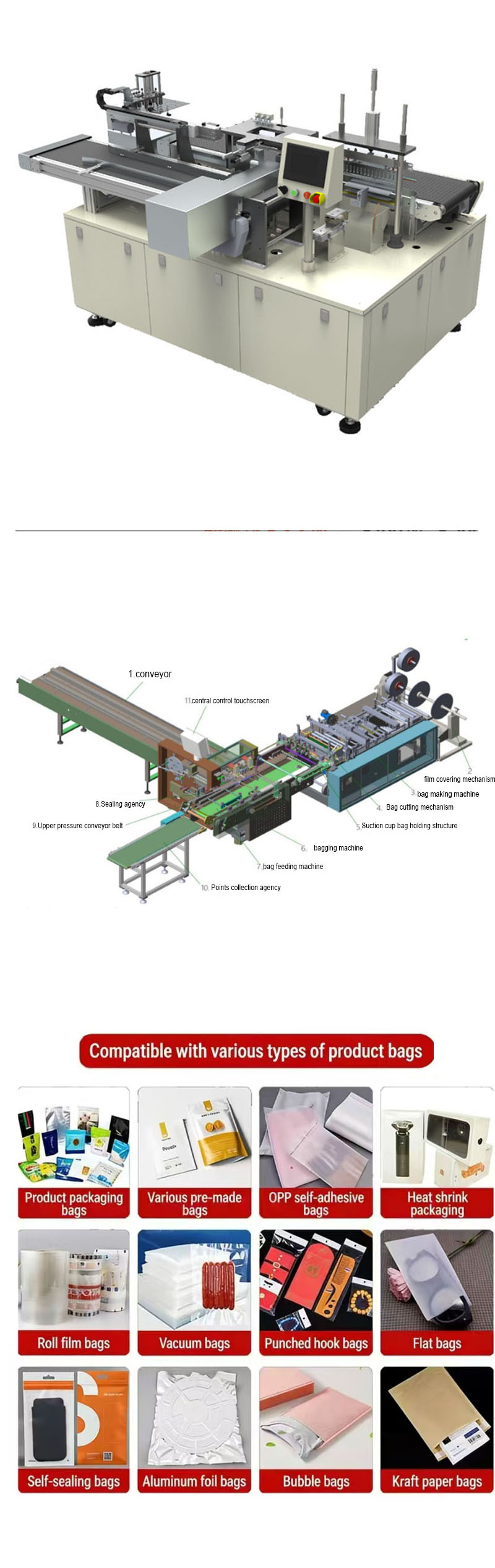

详情页1

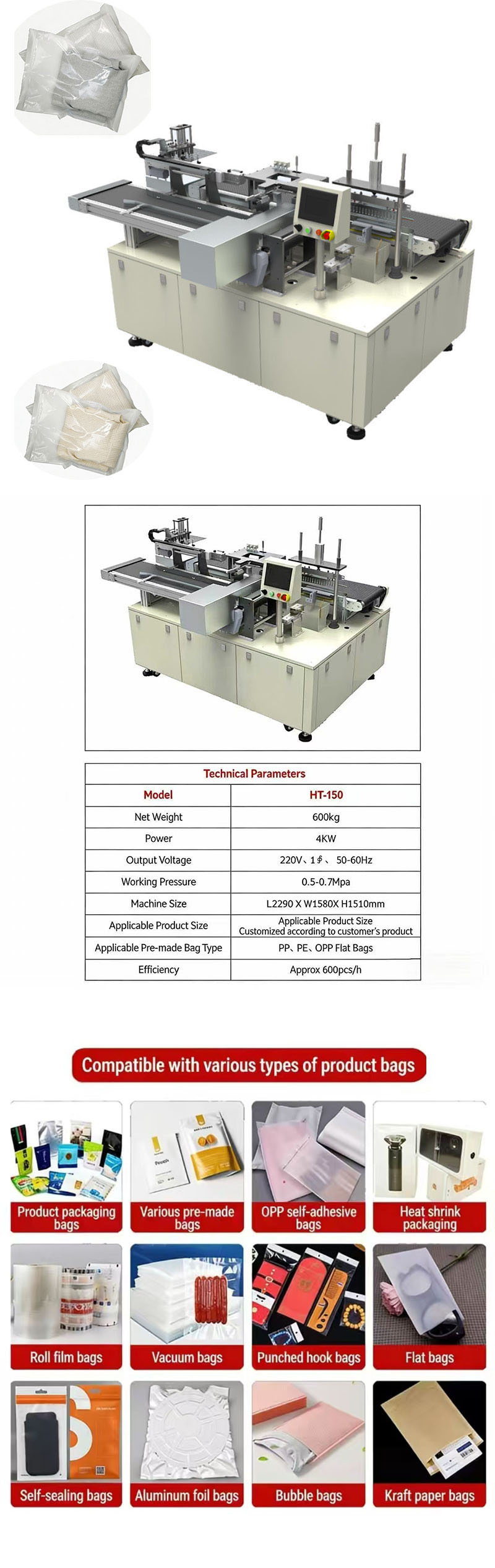

详情页2

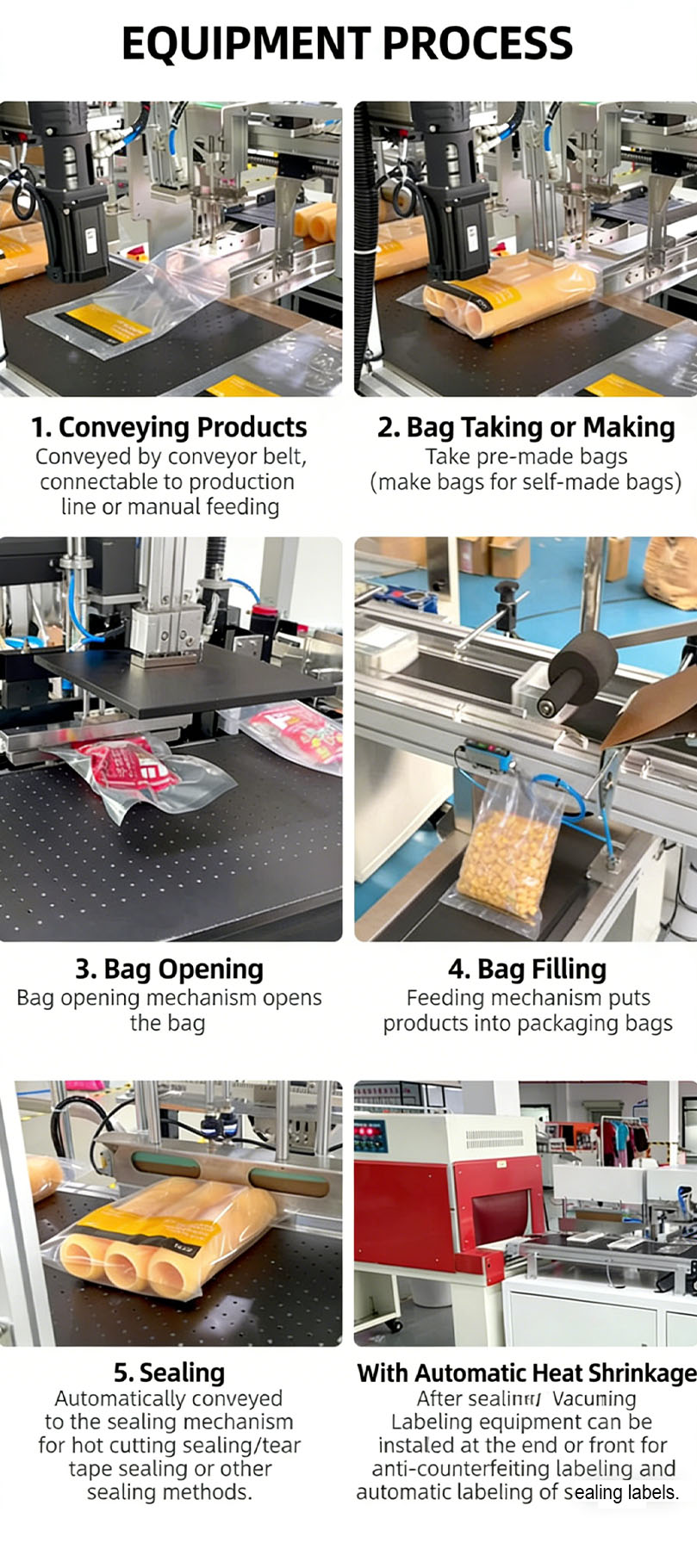

详情页3

FAQ

Q1: What types of packaging bags are compatible with this machine?

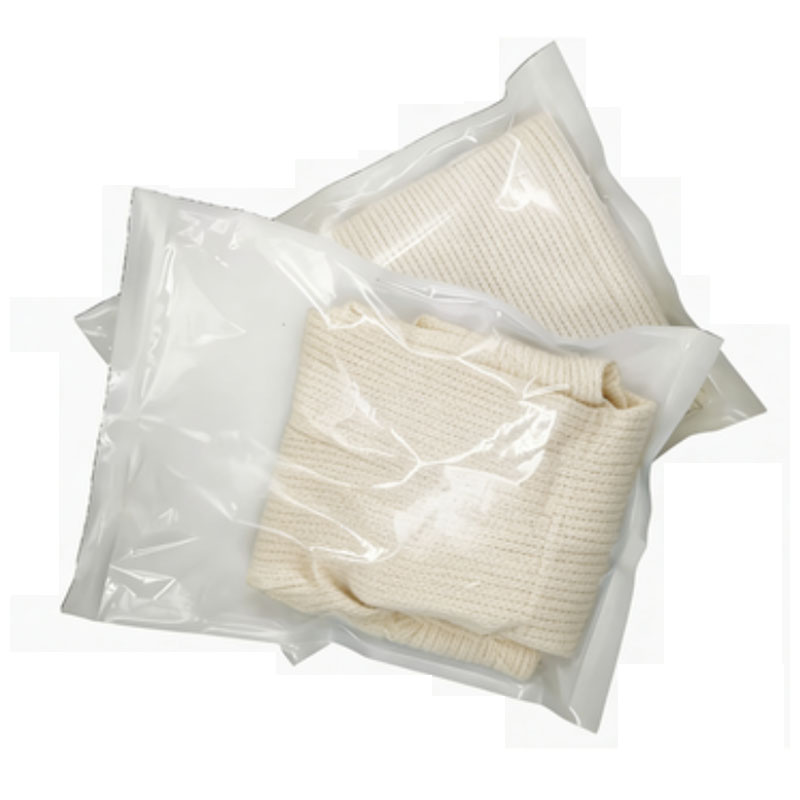

A: This machine is specifically designed to work with flat bags made from PP (Polypropylene), PE (Polyethylene), and OPP (Oriented Polypropylene) materials.

Q2: What is the production capacity of the QD-820001?

A: The machine operates at a high speed, achieving an efficiency rate of approximately 700 to 900 pieces per hour, depending on the specific product and bag size.

Q3: What are the dimensions of the products this machine can handle?

A: It is suitable for products within the following size range:

Length: 100 - 200 mm
Width: 50 - 150 mm
Height: 10 - 40 mm

Q4: How does the machine ensure the quality of the seal?

A: The machine utilizes a high-strength mold steel hot sealing knife with a special "Teflon" double-layer oil-resistant non-stick coating imported from the USA. Additionally, it features an intelligent PID temperature controller to maintain precise heat levels, ensuring the seal is firm, neat, and aesthetically pleasing without burning the bag.

Q5: Is the machine easy to operate for new staff?

A: Yes. It is equipped with a human-machine interface (touch screen) that makes operation simple and visual. The high-performance PLC control system manages the complex movements automatically, reducing the need for extensive manual training.

Q6: What are the power and air pressure requirements?
A:Power: Single-phase 220V, 50/60Hz (Total power ≤ 4KW).

Air Pressure: 0.5 - 0.7 Mpa.

Q7: What components are used to ensure stability?
A: The machine uses premium components including Schneider sensors, Omron intermediate relays, Delta touch screens, and AirTAC cylinders.The transmission system uses servo motors + stepper motors for accurate positioning during the bagging process.
