The QD-160 Automatic Pillow Packing Machine is a versatile packaging solution engineered to handle a wide range of products, from food items to industrial goods. With a film width of 340mm and bag width adjustable between 30-160mm, it offers flexibility in packaging different-sized items. The machine’s compact design (3600×745×1470mm) and lightweight construction (450kg) make it suitable for both small-scale operations and large production lines. Operating on a 220V/50Hz power supply with a 2.6kW power consumption, it balances energy efficiency with high performance.
Designed for speed and precision, the QD-160 can produce 30-200 bags per minute, ensuring optimal output even in high-pressure environments. Its compatibility with film roll diameters up to 380mm reduces downtime, allowing continuous operation. This machine is ideal for industries such as food processing, pharmaceuticals, cosmetics, and electronics, where consistent and reliable packaging is essential.
The QD-160's 30-200 bags per minute capability makes it a top choice for businesses aiming to boost productivity. Its advanced motor control system ensures smooth and stable operation at high speeds, minimizing errors and waste.
With a bag width range of 30-160mm and machine height adjustable between 35-55mm, the QD-160 accommodates diverse product sizes. This adaptability eliminates the need for multiple machines, reducing operational costs.
Equipped with a PLC touchscreen control panel, the machine allows operators to easily adjust settings, monitor performance, and troubleshoot issues. The intuitive interface requires minimal training, enhancing efficiency.
The 340mm film width and 380mm film roll diameter compatibility ensure seamless film feeding and tension control. This prevents wrinkles and tears, resulting in professional-looking packaging.
The QD-160 prioritizes operator safety with emergency stop buttons, protective covers, and automatic error detection. These features comply with international safety standards, reducing workplace risks.

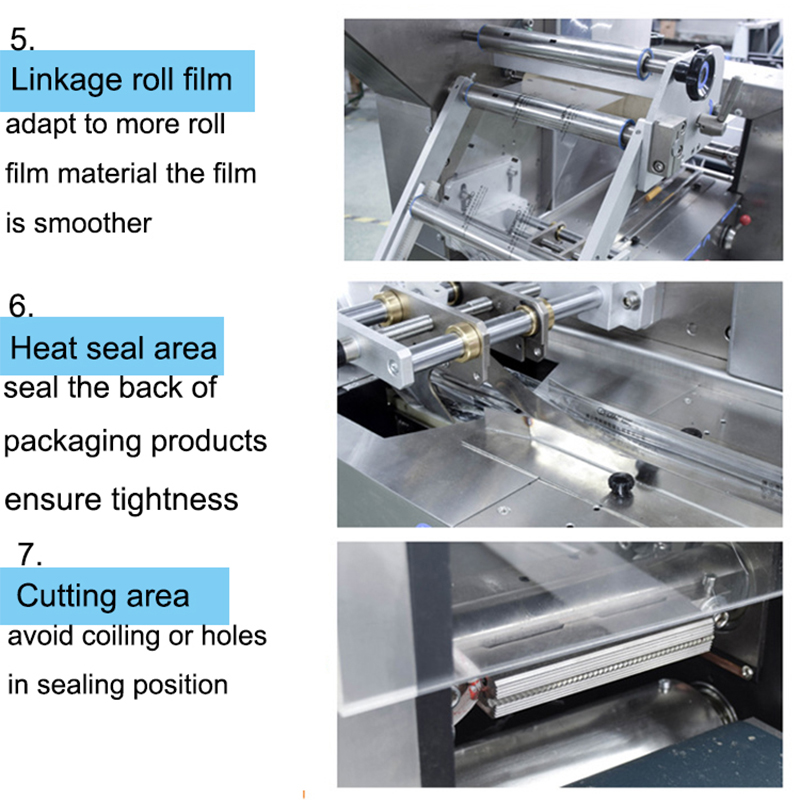

The QD-160 integrates sensor technology and servo motors to achieve precise product positioning and film sealing. The process begins with film unwinding, followed by product feeding, forming, sealing, and cutting—all executed in a single, continuous operation.

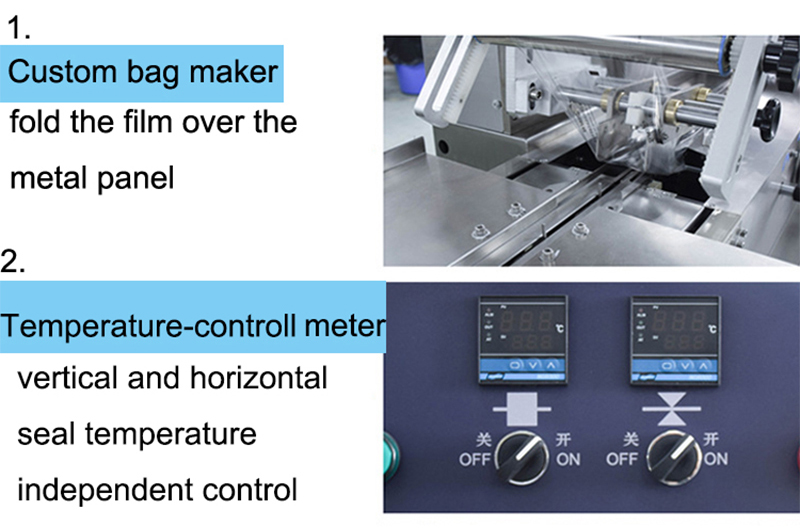

The machine supports various sealing methods, including heat sealing and impulse sealing, allowing customization based on product requirements. This versatility ensures compatibility with different packaging materials, such as plastic, foil, and laminated films.

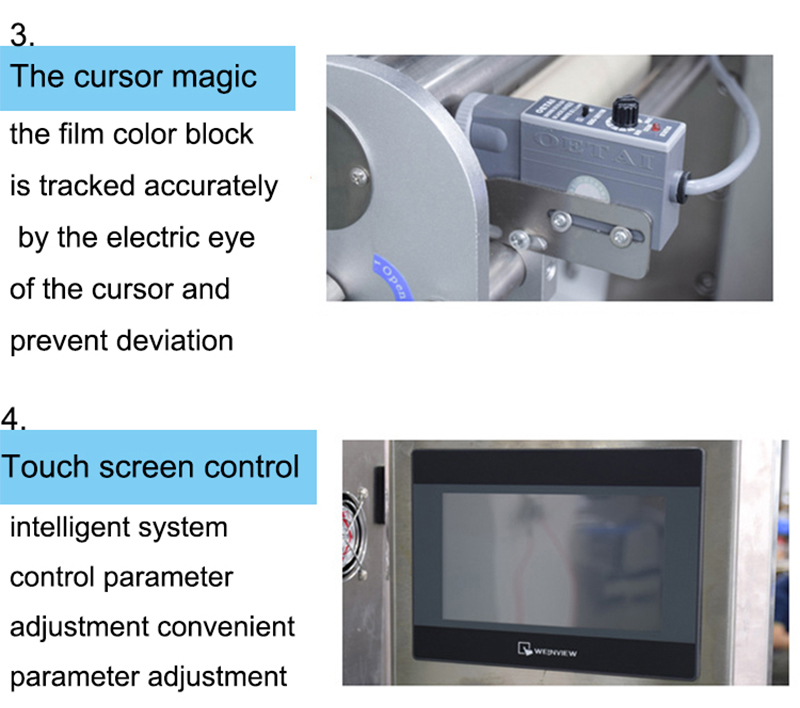

A built-in film tracking system ensures accurate alignment of printed films, maintaining brand consistency. This feature is particularly valuable for businesses with detailed labeling needs.
The 2.6kW power consumption and 220V/50Hz power supply make the QD-160 cost-effective to operate. Its energy-saving mode further reduces electricity usage during idle periods.
Pillow Packing Machine | |
Model | QD-160 |
Film width | 340mm |
Bag width | 30-160mm |
Machine height | 35-55mm |
Size | 3600*745*1470mm |
Weight | 450kg |
Power Supply | 220v/50hz |
Power | 2.6kw |
Speed | 30-200bag/min |
Film roll diameter | 380mm |
Here are four specific application scenarios of Pillow Packing machine.
1. Pillow Packing machine is suitable for packing snack bar, bread, cookies, ice lolly cake, chocolate bar, ice cream bar and so on.
2. Pillow type packing machine can be used for food factory, hardware parts, daily supplies, hotel supplies.
We understand that every business has unique packaging needs. Our team of engineers works closely with clients to customize the QD-160 for specific product dimensions, production speeds, and packaging materials. Whether you require a larger film roll diameter or specialized sealing mechanisms, we provide tailored solutions.
Our dedicated support team offers 24/7 assistance for installation, maintenance, and troubleshooting. We also provide comprehensive training programs to ensure your staff can operate the machine efficiently.
To minimize downtime, we maintain a stock of genuine spare parts for the QD-160. This ensures quick replacements and extends the machine's lifespan.
As technology evolves, we offer software and hardware upgrades to keep your machine up-to-date. This allows businesses to adapt to changing market demands without replacing the entire system.
