Product Advantage
1.High-Efficiency Slag Removal, Outperforms Manual Labor
The machine achieves a working speed of 4-8m/min, which is 5-10 times faster than manual slag cleaning. It thoroughly removes molten slag from the gaps of the sword grilles, ensuring a clean and smooth cutting bed, greatly improving workshop production efficiency and reducing labor costs.
2.Wide Compatibility, Strong Adaptability
It supports a maximum slag width of 28mm and is suitable for sword grilles with a thickness of 3-8mm, compatible with most mainstream laser cutting machine worktables on the market, meeting the slag removal needs of different specifications of cutting beds.

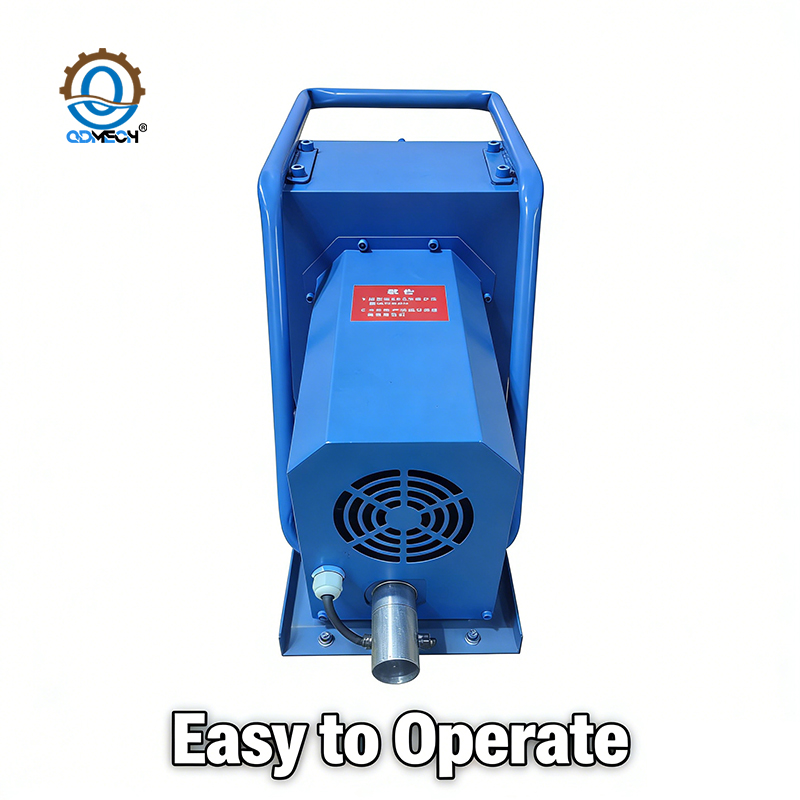

3.Easy Operation & Labor-Saving Design
The portable push-type structure with a handle is simple to operate, requiring no professional training. Operators can easily push the machine to complete slag removal, reducing the physical labor intensity of workers and improving the working environment.
4.Stable Performance & Long Service Life
Equipped with a 220V/50Hz power supply, it supports 1 hour of continuous working time, with a sturdy and durable body and high-quality core components, ensuring stable operation in long-term industrial production and low failure rate.
5.Thorough Cleaning, Protects Cutting Quality
It completely removes residual slag from the sword grilles, avoiding the impact of slag on the flatness of the cutting bed, ensuring the stability of laser cutting precision, reducing defective products caused by uneven worktables, and extending the service life of the cutting bed.
6.Compact Structure & Flexible Movement
The small and portable design with a push handle is easy to move in the workshop, suitable for different positions of the laser cutting worktable, and does not occupy too much production space.

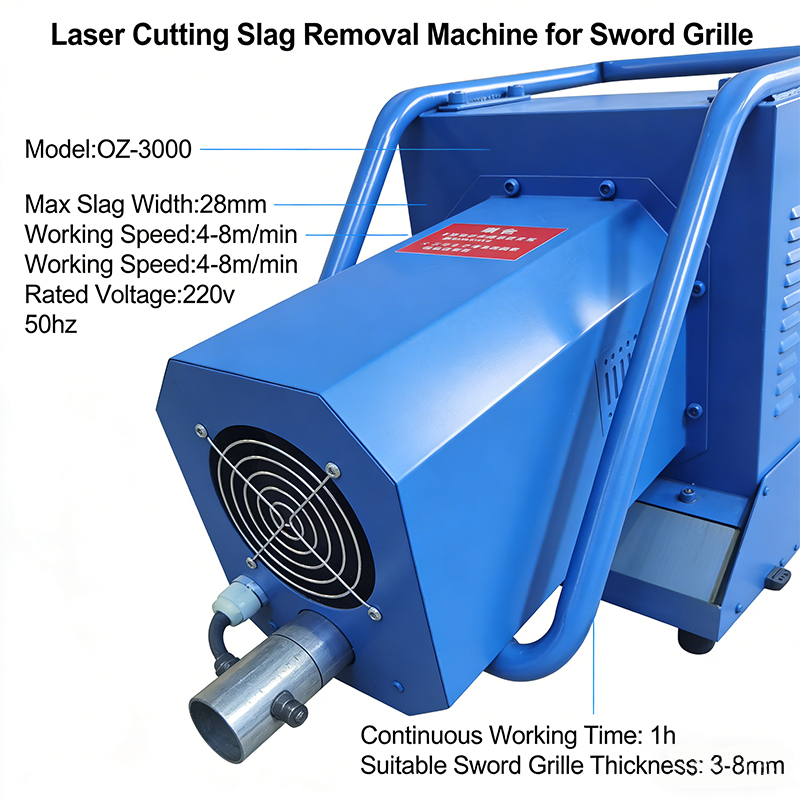

Model: OZ-3000 | Product Name: Laser Cutting Slag Removal Machine for Sword Grille
Key specifications include: Max slag width of 28mm, working speed ranging from 4-8m/min, rated voltage of 220V/50Hz, and a powerful 2800W motor. It supports 1 hour of continuous working time, is suitable for sword grilles with a thickness of 3-8mm, and has a net weight of approximately 30kg. The compact overall dimensions measure 70cm × 35cm × 25cm, ensuring efficient and portable slag removal for laser cutting worktables.
Item | Specification |
Product Name | Laser Cutting Slag Removal Machine for Sword Grille |
Model | OZ-3000 |
Max Slag Width | 28mm |
Working Speed | 4-8m/min |
Rated Voltage | 220V / 50Hz |
Motor Power | 2800W |
Continuous Working Time | 1h |
Suitable Sword Grille Thickness | 3-8mm |
Net Weight | Approx. 30kg |
Overall Dimension | 70cm × 35cm × 25cm |

A1: It is universally compatible with most mainstream fiber laser cutting machines and CO₂ laser cutters on the market. Specifically adapted for sword grilles with a thickness of 3-8mm and can clean slag with a maximum width of 28mm, meeting the slag removal needs of different specification laser cutting worktables in industrial workshops.
A2: This machine has a high working speed of 4-8m/min, which is 5-10 times more efficient than manual slag cleaning. Equipped with a 2800W high-power motor and 220V/50Hz rated voltage, it supports 1 hour of continuous stable working, greatly improving the daily maintenance efficiency of laser cutting worktables and reducing labor costs.
A3: Yes, it adopts a humanized hand-pushed portable structural design with a dedicated handle, no professional training is required for operation—operators can complete slag removal by simple pushing. With a net weight of only about 30kg and compact overall dimensions of 70cm×35cm×25cm, it is easy to move in the workshop, suitable for slag removal at different positions of the laser cutting platform, and does not occupy excessive production space.
