High Precision Small Vibrating Sieve Machine Particle Screening Separator

Name: High Precision Small Vibrating Sieve Machine Particle Screening Separator
Brand: QDMECH
Rating: 5.0 (20 reviews)

This vibrating screen separator is specially designed for industrial production scenarios (such as ore processing plants, food processing factories, chemical processing enterprises, building material factories). It is mainly used to automatically separate materials into different specifications according to particle size (including powder, granular, block materials, etc.). By replacing the screen mesh, it can meet the separation needs of different types of materials, is suitable for mass production, and improves separation efficiency.

Quantity:
Availability:





Inquiry Add to Cart AliExpress

Brand:
QDMECH
Code:
XM-260310-001

Vibrating Sifter vibrating sifter machine vibrating sieve sifter vibrating flour sifter vibrating sifter food grade vibrations machine vibrating screen machine vibrator screen sorting machine vibrating powder screen machine Particle Screening Separator

Product Advantage

Technical Parameters

Application Scenarios

Product Video

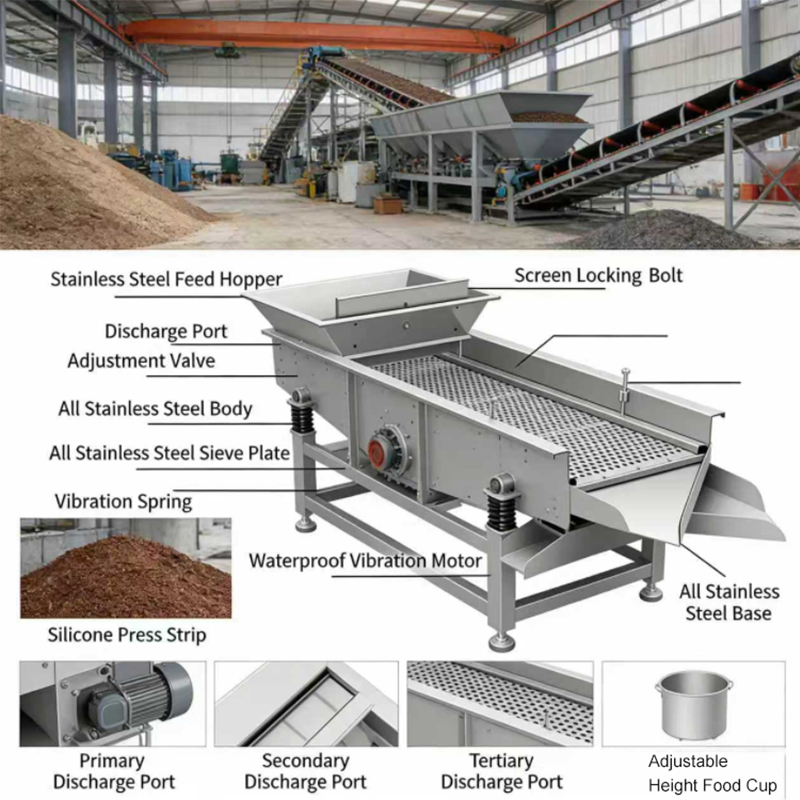

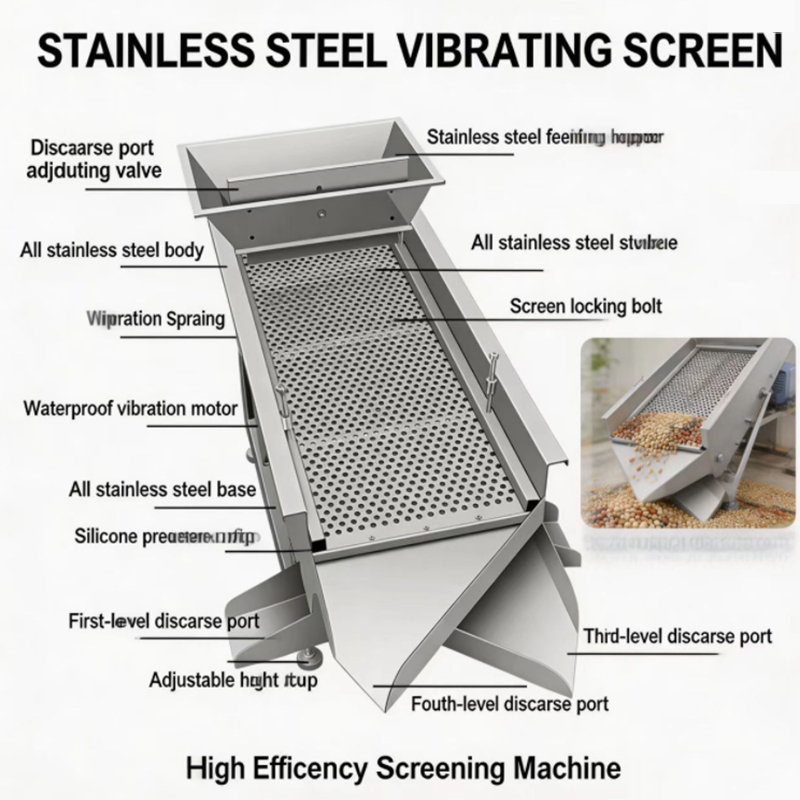

This high-precision mini vibrating screen is specifically designed for screening and separating fine particles, suitable for various industries such as chemical, food, and pharmaceutical. The machine utilizes high-frequency vibration technology to effectively screen particles of different sizes, ensuring product quality and consistency. Its compact design is ideal for spaces with limited space, enabling efficient material separation and making it widely applicable in small-batch production and laboratory applications requiring precise screening.

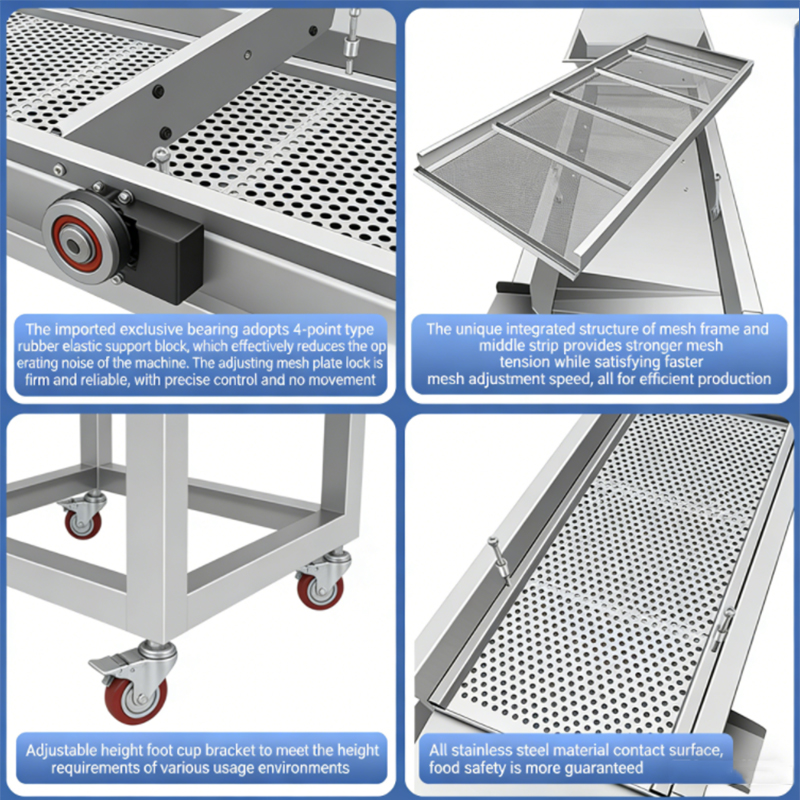

Product Advantage

1. Multifunctional & Replaceable Screens: Supports replaceable and customized screens, enabling the separation of various materials (powder, granular, block) into different specifications to meet diverse industrial needs.

2. High Efficiency & Stable Operation: Equipped with a high-performance vibration motor, it realizes rapid material separation, with high screening efficiency and stable operation, suitable for large-scale industrial production.each hour can separate 1-3 ton of products.

3. Stainless Steel & Durable Design: The main body is made of high-quality industrial stainless steel, corrosion-resistant and wear-resistant, easy to clean, and meets industrial production safety standards.

4. User-Friendly Operation: Featuring intelligent frequency adjustment, simple operation interface and stable performance, it can be operated by a single person, effectively reducing labor intensity.

5. Practical Auxiliary Functions: Equipped with automatic material feeding and anti-blocking functions, which keeps the screening process smooth and maintains a clean production environment.

6.High-precision screening: This vibrating screen utilizes advanced vibration technology to achieve precise particle screening, ensuring that every batch of product meets quality standards. It is widely used for the fine separation of powders and granular materials.

7.Compact design: The machine features a compact structure, ideal for space-constrained laboratories or small-scale production lines, providing efficient screening capabilities while saving space.

8.Wide application: This equipment is suitable for various industries, including chemical, pharmaceutical, and food processing, effectively separating materials of different particle sizes to meet the diverse screening equipment needs of different industries.

9.Energy-efficient and high-performance: The equipment's efficient vibration design results in lower energy consumption while maintaining stable operation for extended periods, offering excellent economic benefits.

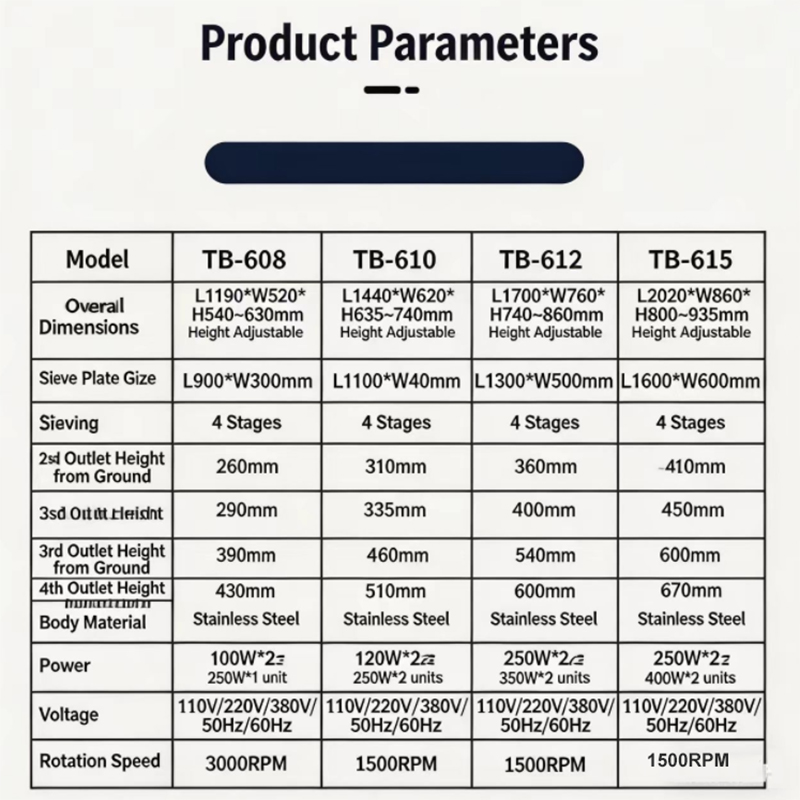

Technical Parameters

This Stainless Steel Vibrating Screen Separator has overall dimensions of 1100*470*540mm, a mold length of 165, and a weight of 23kg. It offers multiple power options: 100W, 120W, 250W, and 350W, with a voltage of 220/380V. Made of stainless steel, it delivers an output of 1–3 t/h, ensuring stable and efficient screening performance.

Product Name	Stainless Steel Vibrating Screen Separator
Overall Dimensions	1100470540mm
Power	100W/120W/250W/350W（Kw）
Voltage	220/380V
Mold Length	165
Output	1-3（t/h）
Material	Stainless Steel
Weight	23kg

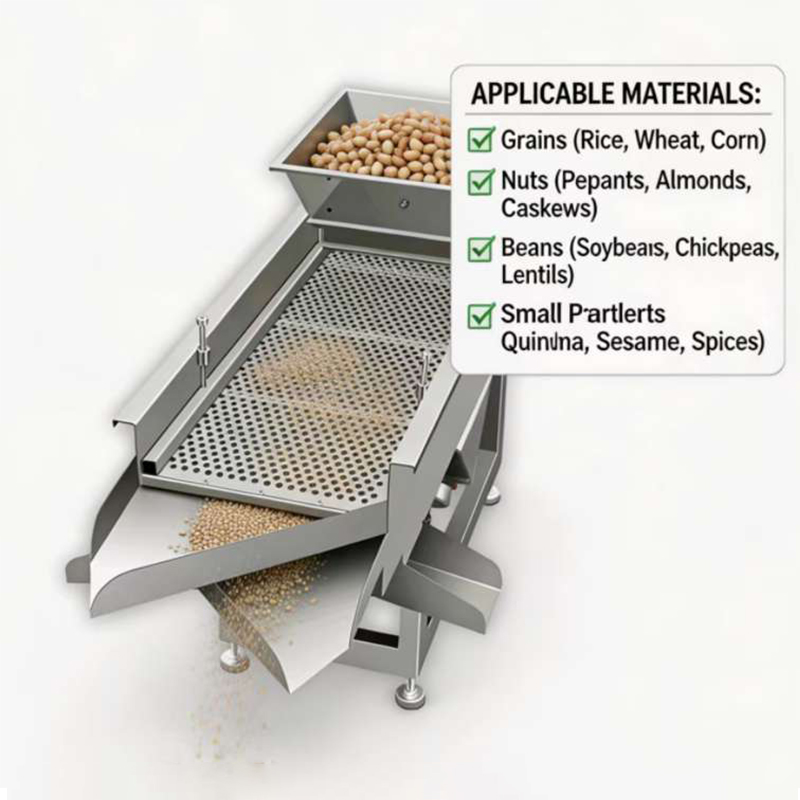

Application Scenarios
1. Food industry: Suitable for screening flour, starch, condiment powder and other food materials.
2. Pharmaceutical industry: Applied to the classification and filtration of medicinal powder and granules.
3. Chemical industry: Used for screening chemical powder, pigment, filler and fine materials.
4. Cosmetics industry: Ideal for screening cosmetic raw powder, mica powder and other ingredients.
5. Agricultural processing: Suitable for screening grain powder, feed powder and agricultural fine materials.
6. Powder coating industry: Used for filtering and sieving powder coating to ensure uniform fineness.
7.Laboratory Applications: Small vibrating screens are ideal for laboratory use, enabling precise sample screening. They are particularly suitable for research and testing environments, providing reliable experimental data support.
8.Mining and Metallurgy: They can be used in the mining industry for screening ores, powders, and metallurgical products, effectively separating materials of different particle sizes and ensuring efficiency and safety in the production process.

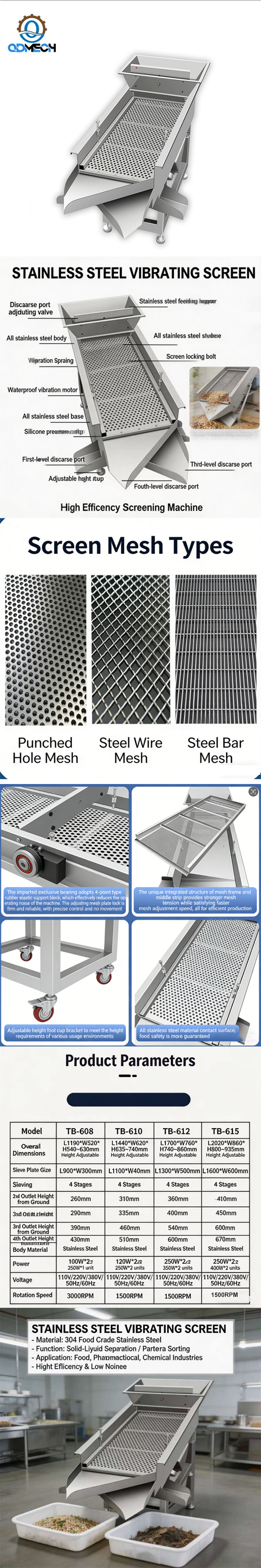

详情页1

Product Video

FAQ

Q1: What particle size range can this vibrating sifter handle?

A1: It is designed for fine powder screening, suitable for particles with a size range of 20-400 mesh. It effectively separates impurities and classifies powders to meet precise processing requirements.

Q2: Is this sifter suitable for food contact applications?

A2: Yes. The whole machine is made of 304 stainless steel, which meets food-grade and pharmaceutical hygiene standards, non-toxic and odorless, safe for screening food, medicinal and cosmetic powders.

Q3: How to clean and maintain the vibrating sifter daily?

A3: Its smooth stainless steel surface and simple structure allow easy cleaning—just wipe with a damp cloth or rinse with clean water. Regularly check the vibration motor and screen mesh for wear to ensure long-term stable operation.

Q4: Can it work continuously for a long time?

A4: Absolutely. Equipped with a high-quality motor (power options: 100W/120W/250W/350W), it features low energy consumption, low noise and reliable performance, supporting 8-12 hours of continuous operation to meet small-to-medium scale production needs.

Q5: What voltage options are available for this sifter?

A5: It supports dual voltage supply of 220V/380V 50Hz, which can be flexibly matched with different power grids, suitable for both home workshops, small factories and commercial processing sites.

Q6: Can the screen mesh be replaced for different screening needs?

A6: Yes. The screen mesh is detachable and replaceable. You can choose meshes of different specifications according to powder fineness requirements, realizing multi-purpose screening for various materials. Q7: What is the output capacity of this vibrating screen separator?
