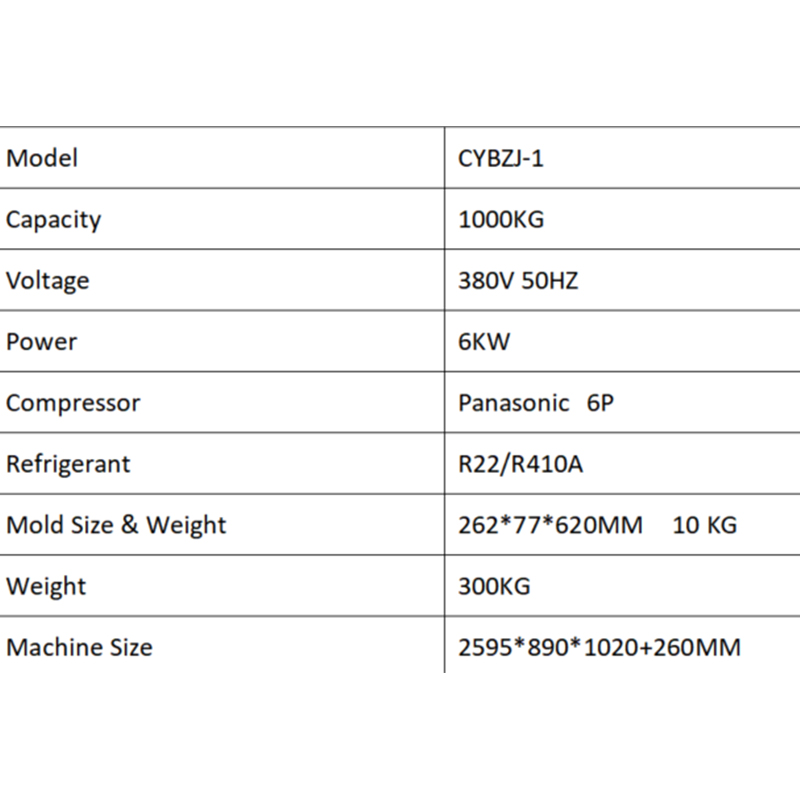

Technical Parameters

Application

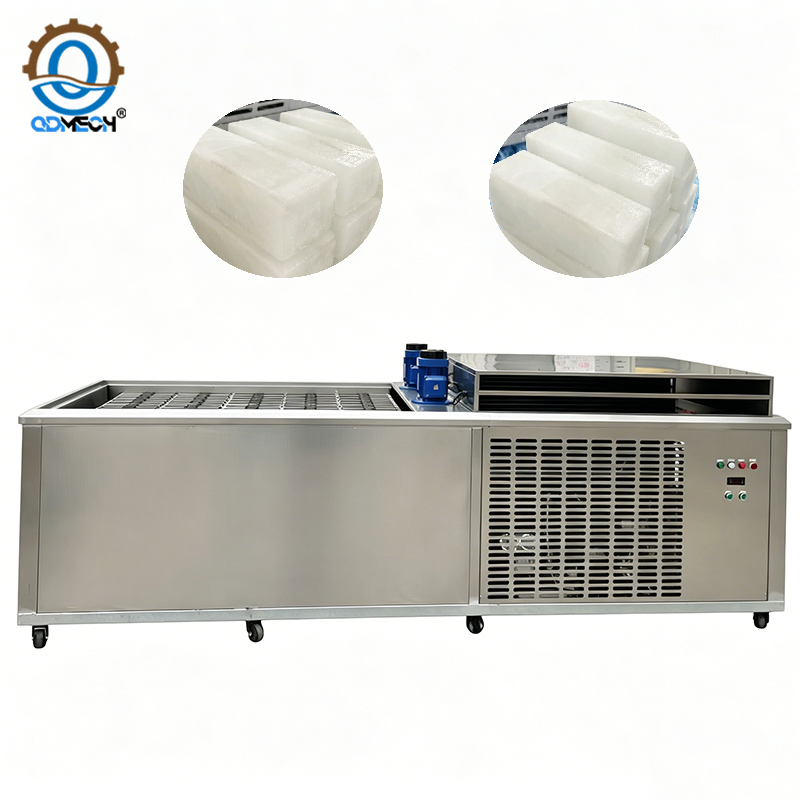

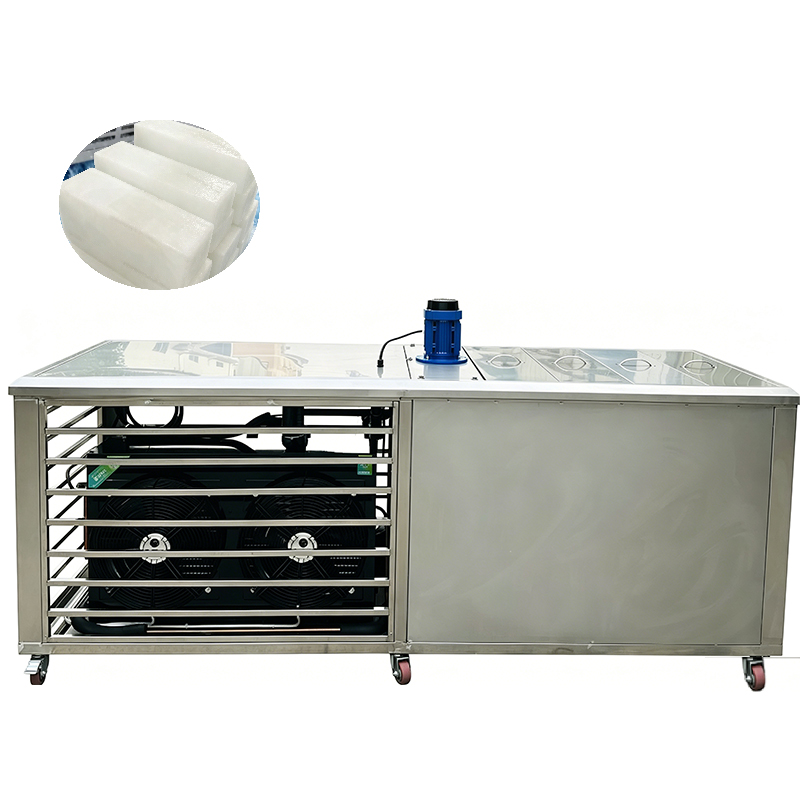

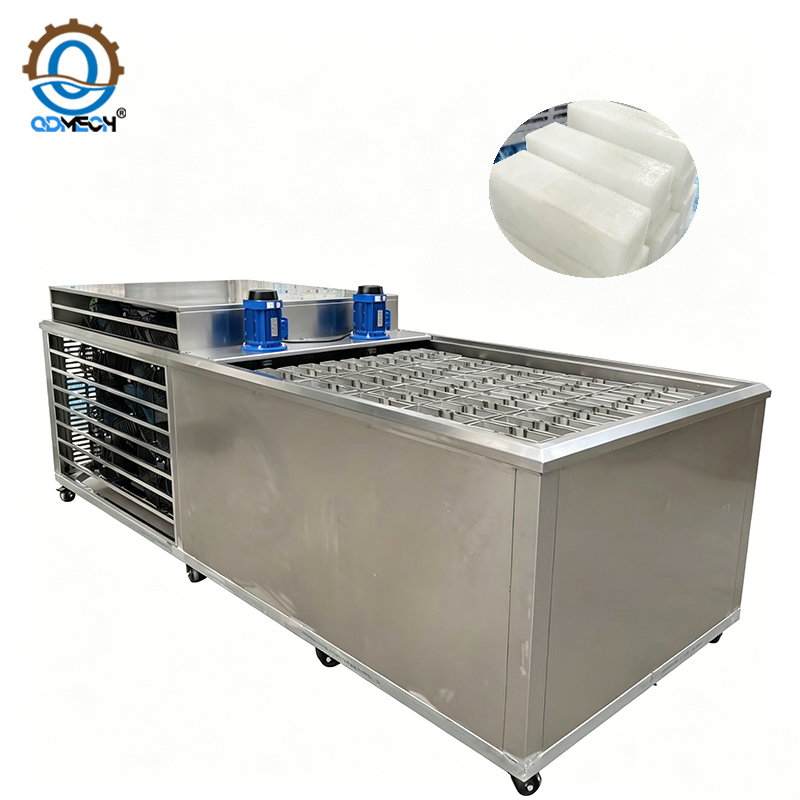

This equipment is an industrial large-scale ice-making machine, equipped with a Panasonic compressor and eco-friendly R22/R410A refrigerant, featuring high cooling efficiency, stable operation and low energy consumption. It is fitted with multiple ice block molds, delivering one batch of ice every 4 hours. The whole machine is constructed from high-quality stainless steel, which is corrosion-resistant, easy to clean and extremely durable. Widely applied in fishery preservation, food processing, aquatic product transportation, construction site cooling, fruit and vegetable cold chain, coal mine cooling and other scenarios, it is the ideal choice for industrial ice production.

FAQ

Q1: What is the production capacity and cycle time for this machine?

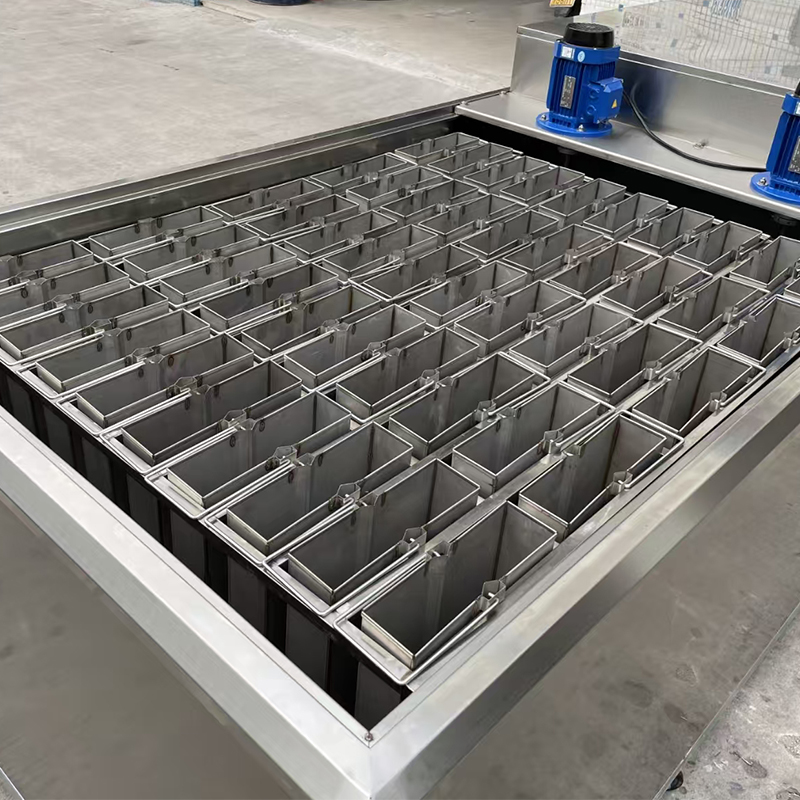

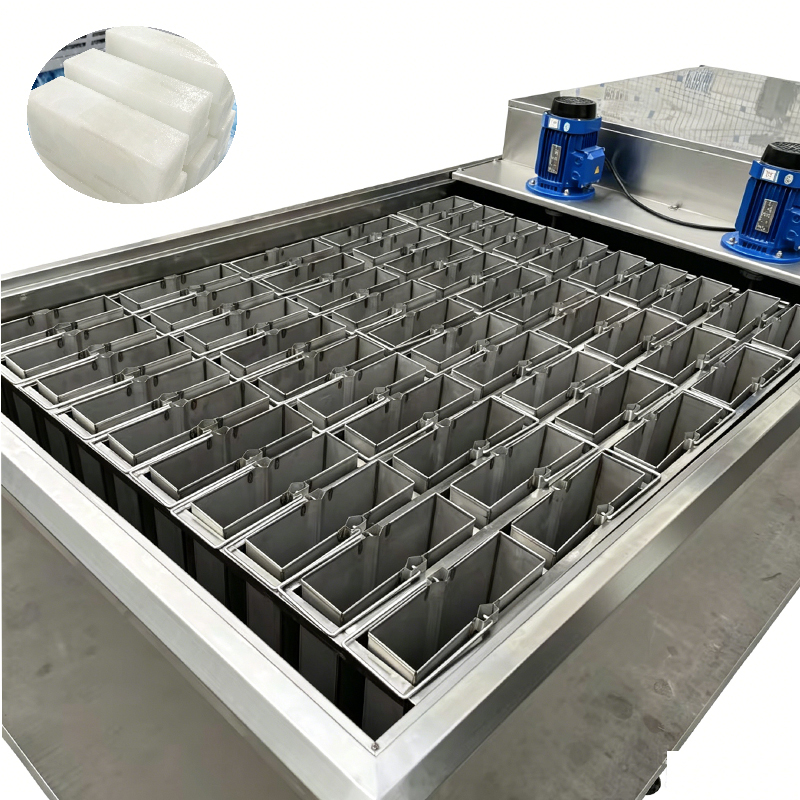

The machine has a production capacity of 1000KG per batch. The freezing cycle takes approximately 4 hours to complete one full batch of ice blocks using the included molds (size: 262×77×620262×77×620 mm).

Q2: What type of compressor does this machine use?
It is equipped with a high-quality Panasonic 6P compressor, known for its stability, durability, and efficient cooling performance, which helps maintain low energy consumption during long operating hours.

Q3: Is this machine suitable for outdoor or corrosive environments like fisheries?
Yes. The entire body is constructed from high-quality stainless steel, which provides excellent corrosion resistance against salt water and moisture. This makes it specifically suitable for fishery preservation, aquatic product transportation, and other wet industrial environments.

Q4: What are the power requirements for installation?
The machine operates on an industrial voltage of 380V at 50Hz with a total power rating of 6KW. Please ensure your facility has the appropriate 3-phase power supply before installation.

Q5: What industries is this ice machine best suited for?
Due to its large block ice output, it is widely applied in:

• Fishery & Aquatic Transport: Keeping catch fresh during transport.

• Food Processing: Cooling ingredients or preserving perishables.

• Construction Sites: Concrete cooling.

• Cold Chain Logistics: Vegetable and fruit preservation.

• Coal Mines: Dust suppression and cooling.
