QD-BX35A
QDMECH
AM-260922-001
Advantges
All parts contact the food directly are made of stainless steel or steel with the specially treated surfaces, which are endurable in use and in conformity with national food hygienic standard.
Technical Parameters
Model | QD-BX35A | QD-BX50A | QD-BX70A | QD-BX100A | QD-BX150A |
Voltage | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz |
Power | 0.75KW | 1.1KW | 1.5KW | 1.5KW | 1.5KW |
Barrel Size | 35KG/50L | 50KG/70L | 70KG/90L | 100KG/130L | 150KG/170L |
Material | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
Capacity | 35L/times | 50L/times | 70L/times | 100L/times | 150L/times |
Packing Size | 79*58*109cm | 89*58*109cm | 94*60*115cm | 108*65*118cm | 118*69*119cm |
N.W / G.W | 136KG / 166KG | 152KG / 186KG | 178KG / 210KG | 223KG / 263KG | 265KG / 330KG |

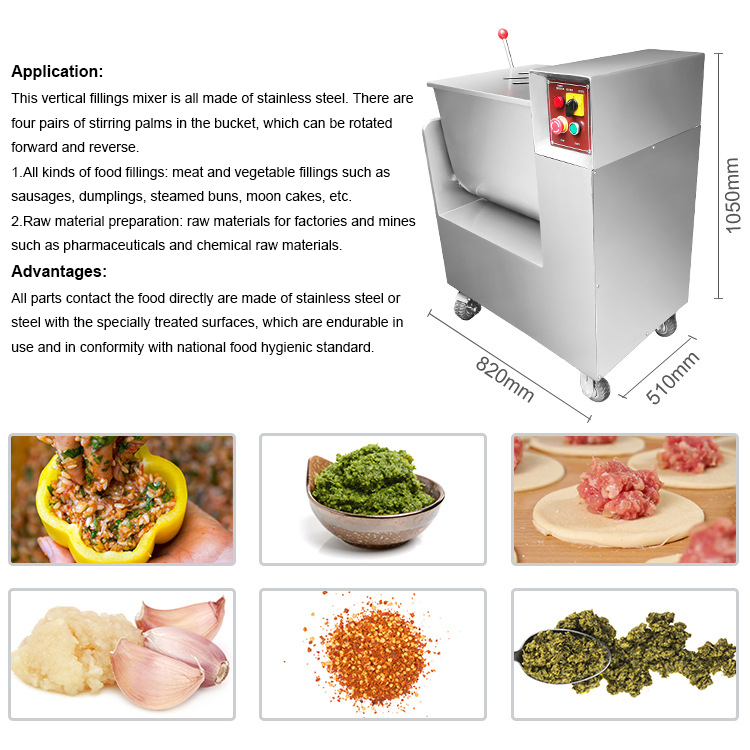

Application

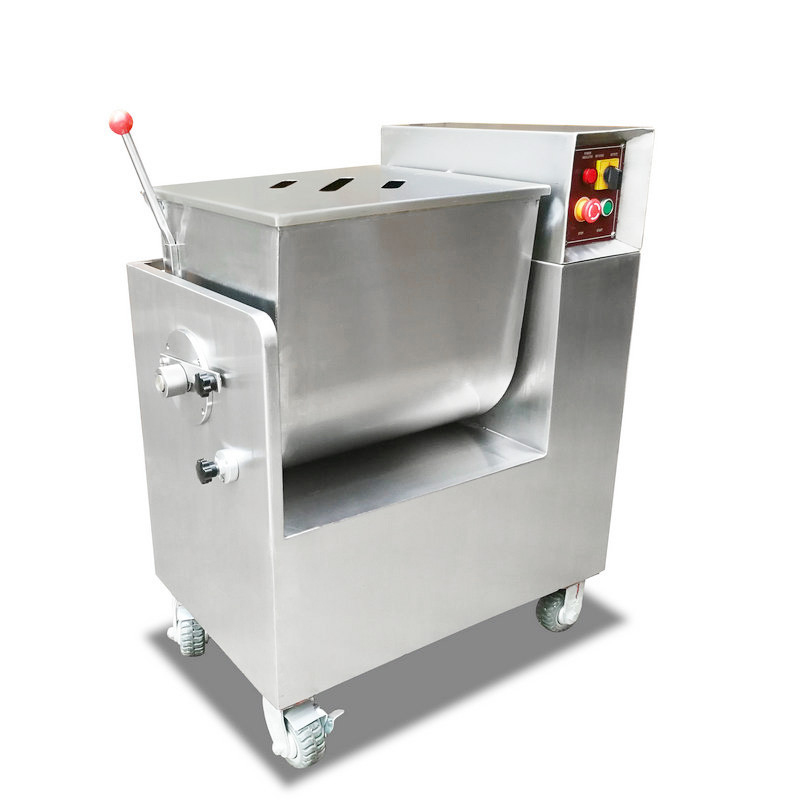

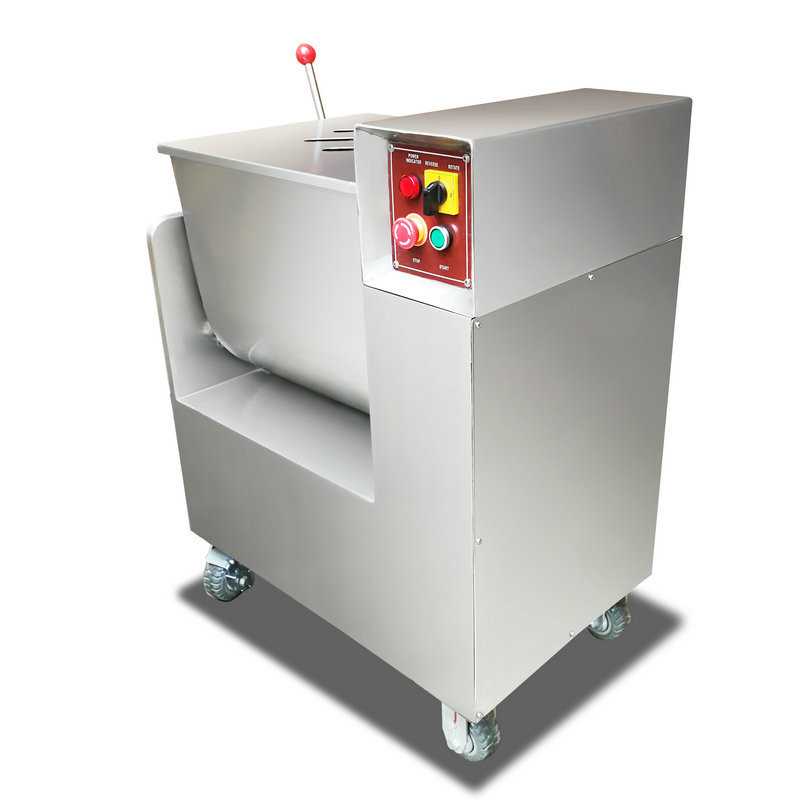

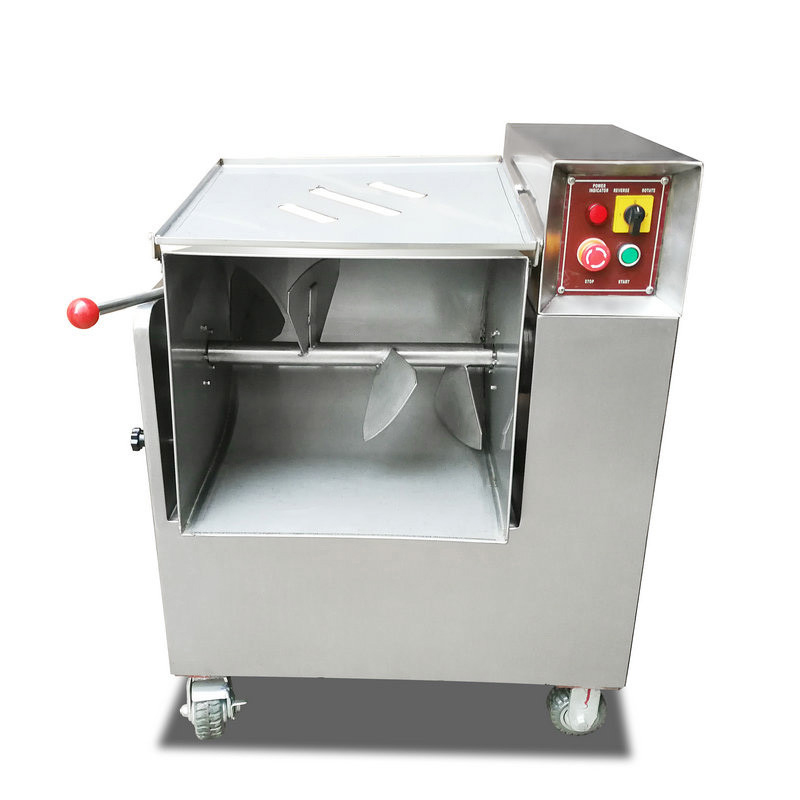

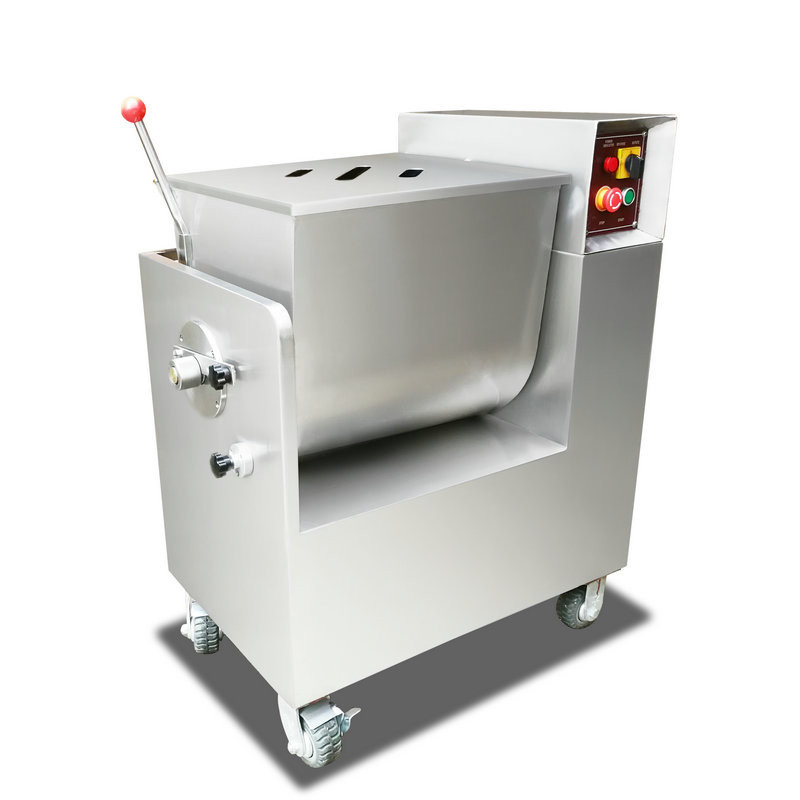

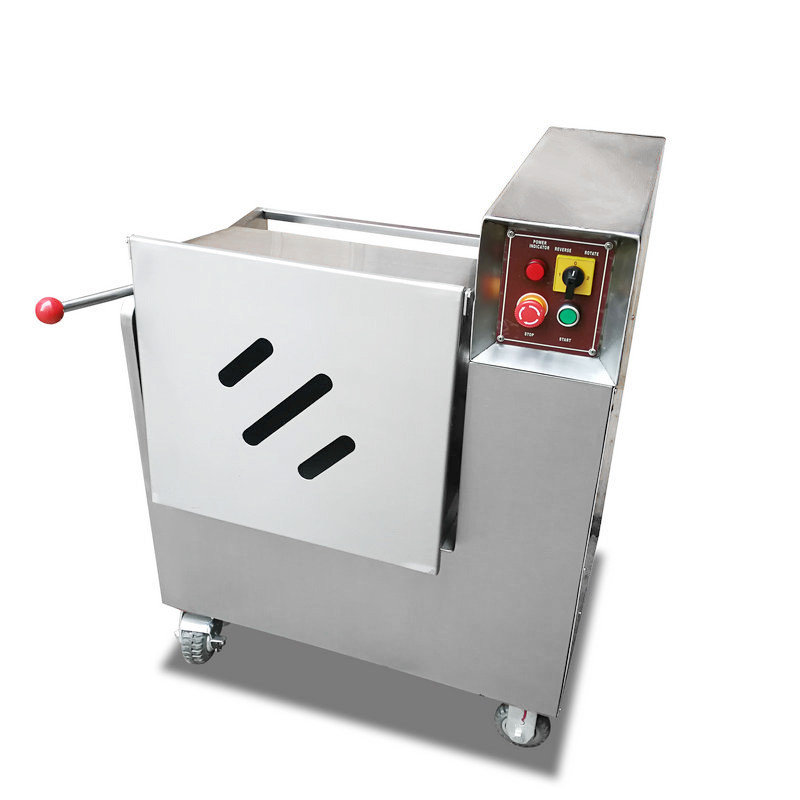

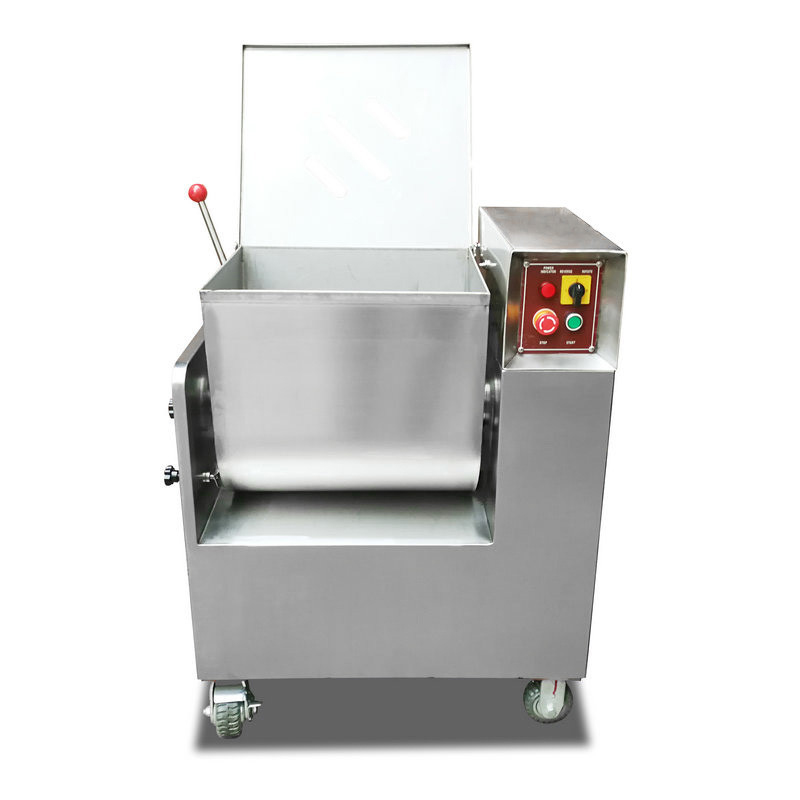

This vertical fillings mixer is all made of stainless steel. There are four pairs of stirring palms in the bucket, which can be rotated forward and reverse.
1.All kinds of food fillings: meat and vegetable fillings such as sausages, dumplings, steamed buns, moon cakes, etc.
2.Raw material preparation: raw materials for factories and mines such as pharmaceuticals and chemical raw materials.
FAQ
A1: Yes. It works perfectly for meat fillings, vegetable mixtures and mixed meat-vegetable stuffing for dumplings, buns and sausages.
A2: All food contact parts are stainless steel. You can wash the tank and paddles directly with water after use for convenient daily cleaning.
A3: Standard voltage is 220V 50Hz. Custom voltage like 110V / 60Hz is available upon request.
A4: The QD-BX150A can process 150L materials per batch, with barrel size 150KG/170L.

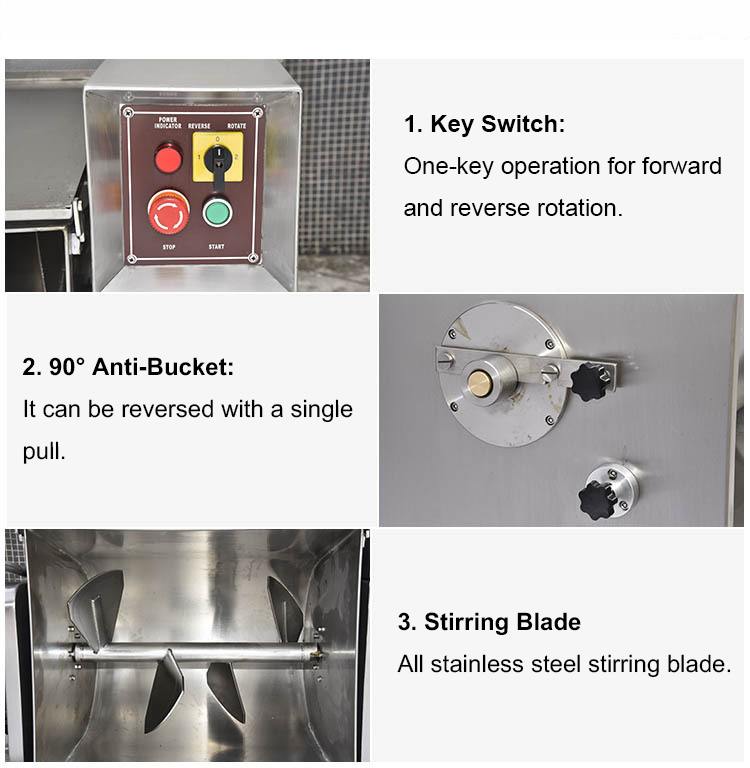

A5: Yes. The four pairs of paddles support forward and reverse rotation to guarantee uniform mixing without dead zones.
A6: It will be packed in solid wooden case to avoid damage during sea transportation.
