QD-SS752
QDMECH
AM-260717-001
Advantges

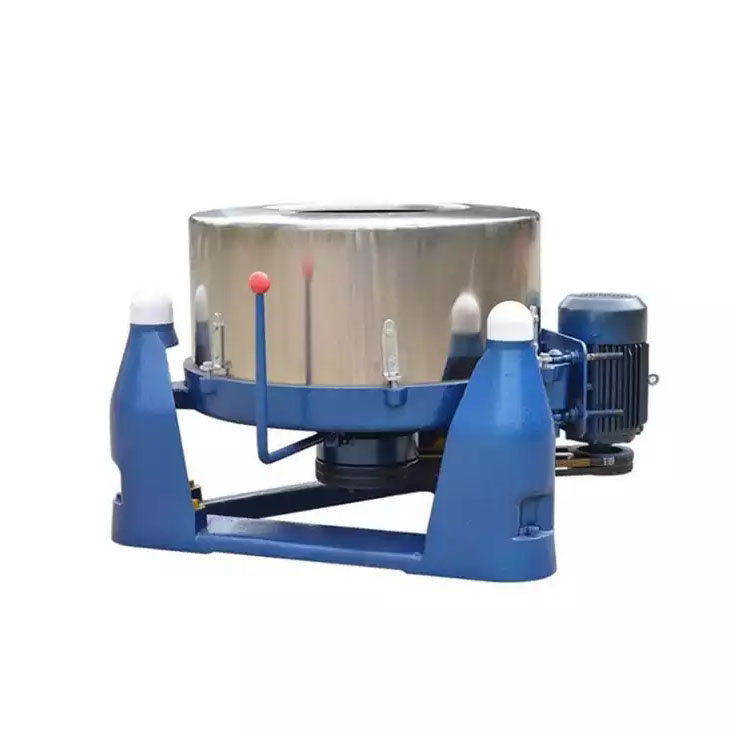

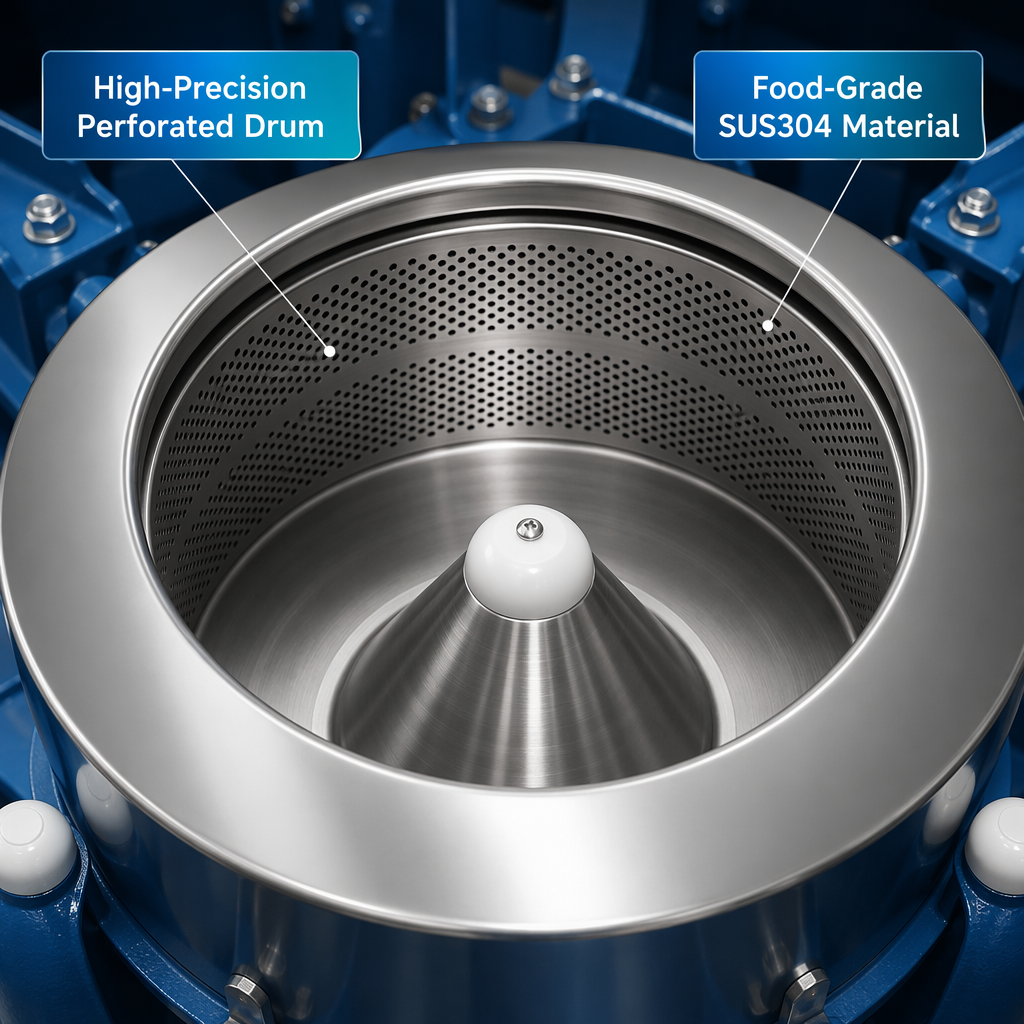

1. All stainless steel body and liner, not easy to rust, deformation, corrosion resistance, longer service life

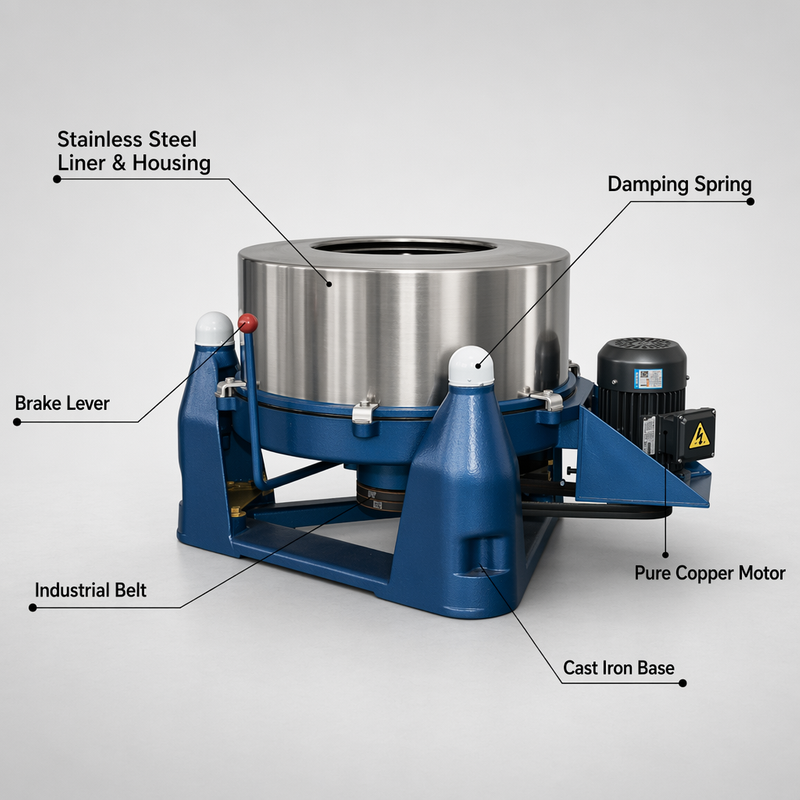

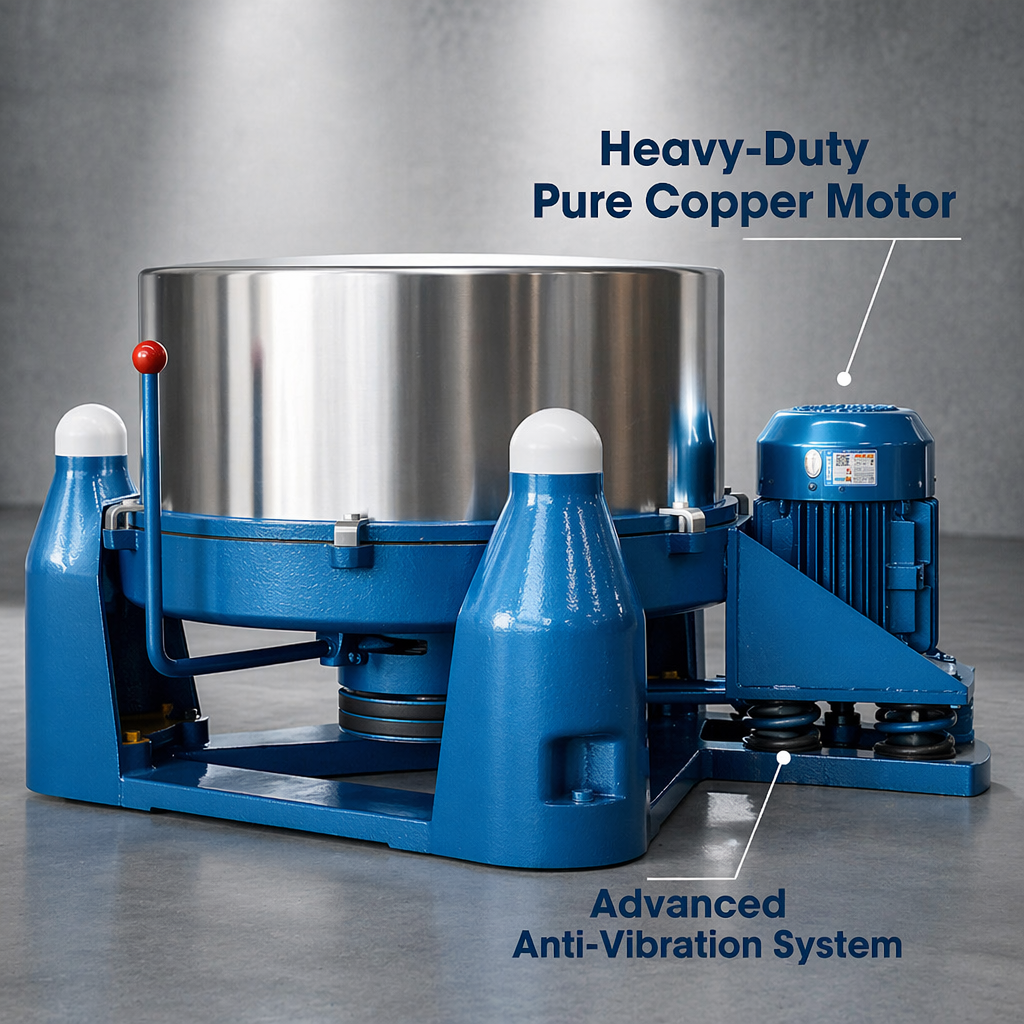

2. The triangle suspension damping is more stable, and the built-in spring can effectively reduce the vibration caused by the load imbalance in the drum
3.Side bottom water outlet, bottom water outlet design, dehydration fast outflow, dehydration effect is better
Technical Parameters
Model | Drum Diameter(MM) | Drum height(MM) | Spindle speed (R/MIN) | Motor power (KW) | Max capacity(Kg) | Dimensions(mm) | Weight ( KG) |
SS752-500 | 500 | 300 | 960 | 1.5 | 25 | 1000*1000*650 | 250 |
SS752-600 | 600 | 300 | 960 | 2.2 | 45 | 1250*1250*700 | 450 |
SS752-800 | 800 | 340 | 910 | 4 | 80 | 1500*1500*800 | 760 |
SS751-1000 | 1000 | 380 | 900 | 5.5 | 130 | 1800*1800*900 | 1100 |
SS751-1200 | 1200 | 480 | 700 | 7.5 | 220 | 2000*2000*1020 | 1600 |
SWE301-1500 | 1500 | 600 | 750 | 11 | 500 | 2550*1950*1400 | 2400 |
Application
Suitable for all kinds of hotels, dry cleaners, washing factories, hospitals, food processing and hardware parts dehydration.
FAQ
A: The whole body and inner drum liner adopt full stainless steel material, which is anti-rust, anti-deformation and corrosion-resistant to extend service life.
A: It equips triangle suspension damping structure with built-in springs, which effectively offsets vibration caused by uneven material load inside the drum for stable high-speed operation.
A: Side and bottom dual water outlet design enables rapid water outflow, greatly improving overall dehydration efficiency and drying results.
A: It fits hotel linen washing, dry cleaning shops, laundry factories, hospitals, food processing plants and hardware metal parts surface dewatering procedures.
A: We supply 6 complete models ranging SS752-500 (25kg) up to SWE301-1500 (500kg max capacity), covering small workshop and large industrial mass production demands.
A: Yes. Each model has matched drum diameter, motor power and rotation speed. You can select the suitable unit based on your daily output requirement to balance cost and efficiency.
