Food Grade 304 Stainless Steel Vacuum Sausage Stuffer

The VF820 vacuum filling machine is widely used for sausage processing, meat products manufacturing, and food industrial production lines. It is suitable for filling various pasty and granular meat materials (excluding liquid), such as fresh sausage, smoked sausage, cooked sausage, and other processed meat products. The machine can work with automatic linking & kinking devices and card punching machines from different brands, realizing high-efficiency automated filling, quantitative dosing, and forming production. It is ideal for meat processing factories, food production plants, central kitchens, and largescale food processing enterprises.

Quantity:
Availability:





Inquiry Add to Cart AliExpress

Model:
VF820
Brand:
QDMECH
Code:
HN-20260429-01

Electric Sausage Stuffer Vacuum Filling Machine 304 Stainless Steel Vacuum Sausage Stuffer sausage vacuum stuffer Multifunctional Meat Filling Machine sausage meat stuffer vacuum quantitative sausage vacuum stuffer vacuum electric sausage stuffer machine automatic vacuum sausage stuffer

Product Advantage

Technical Parameters

Application Scenarios

FAQ

Product Advantage

1.Food-grade & Durable Structure

Made of high‑quality 304 stainless steel, easy to clean, fully meets food safety standards, sturdy and long service life.

2.High Efficiency & Large Capacity

Max filling capacity up to 8500KG/H, equipped with 200L hopper and double‑chain hoist for fast and hygienic material loading.

3.Stable & Precise Performance

Servo motor drive with 20‑bit encoder ensures high filling accuracy (±1.5%). Self‑developed hard‑tooth reducer delivers stable transmission.

4.German Vacuum System

Adopts original BUSCH or Leybold vacuum pump, providing stable vacuum, no bubbles in products, and excellent filling quality.

5.Easy Operation & Maintenance

10-inch touch screen (Chinese/English switchable), IoT real-time monitoring, universal manipulator, and low wearing parts reduce operating cost.

6.Strong Adaptability

Large discharge port for thick or large particles; vacuum adjustable 0–100% to fit different products and processes.

Technical Parameters

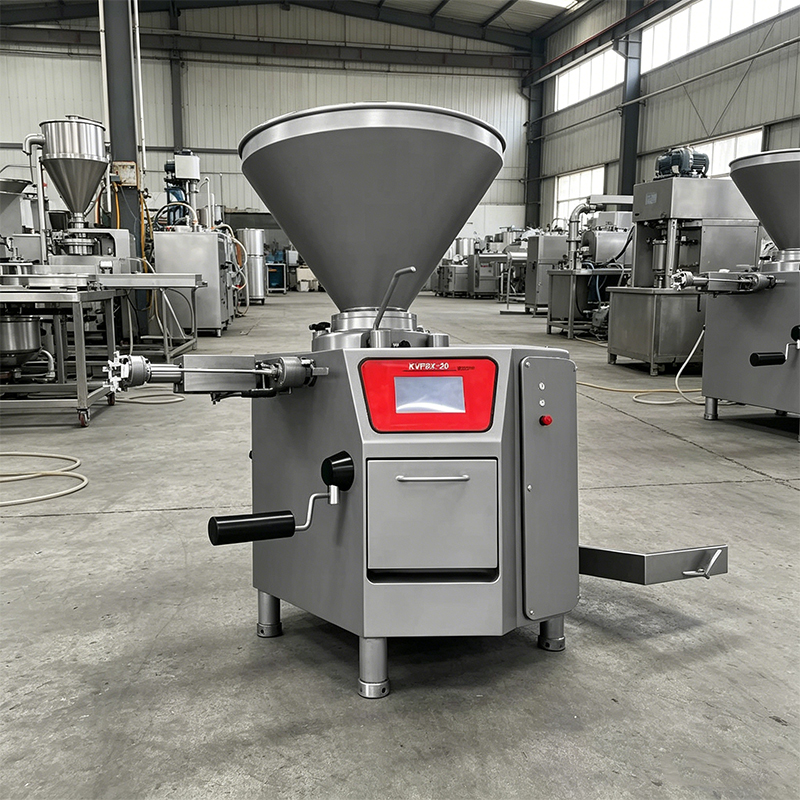

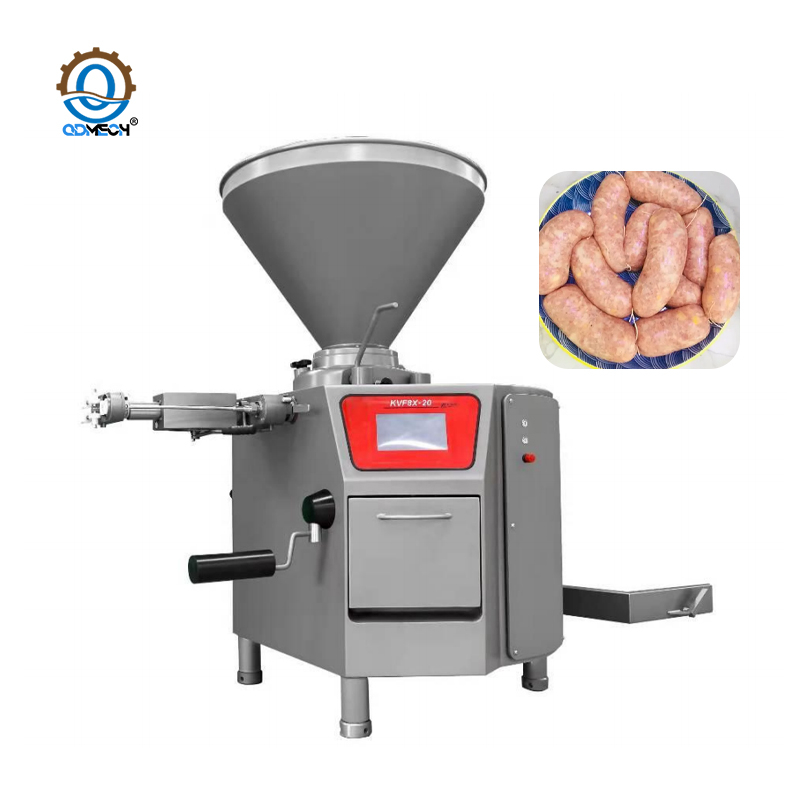

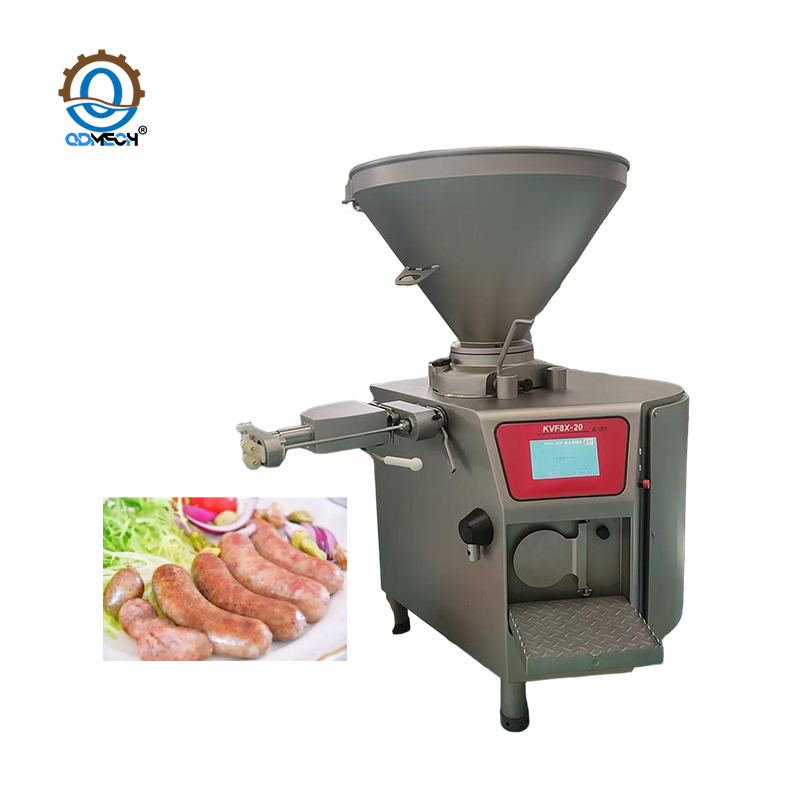

This is the VF820 Vacuum Filling Machine (Vacuum Stuffer), constructed from 304 welded stainless steel, with a three-phase 380V AC power supply, total power of 9.85 kW, and a maximum direct displacement of 8500 kg/h. It features a servo-driven vane pump delivering up to 40 bar outlet pressure, ±1.5% filling accuracy (product dependent), a 200L hopper with double-chain hoist feeding system, adjustable filling center height (993–1050 mm), and a Germany BUSCH/Leybold vacuum pump with 0–100% adjustable vacuum degree. The machine supports a maximum kinking speed of up to 700 pcs/min (product dependent), is controlled by a 10-inch touch screen (Chinese/English switchable) and INNOVANCE H3U PLC, weighs approximately 1500 kg, measures 1880 × 1400 × 2000 mm, and is compatible with various clipper machines.

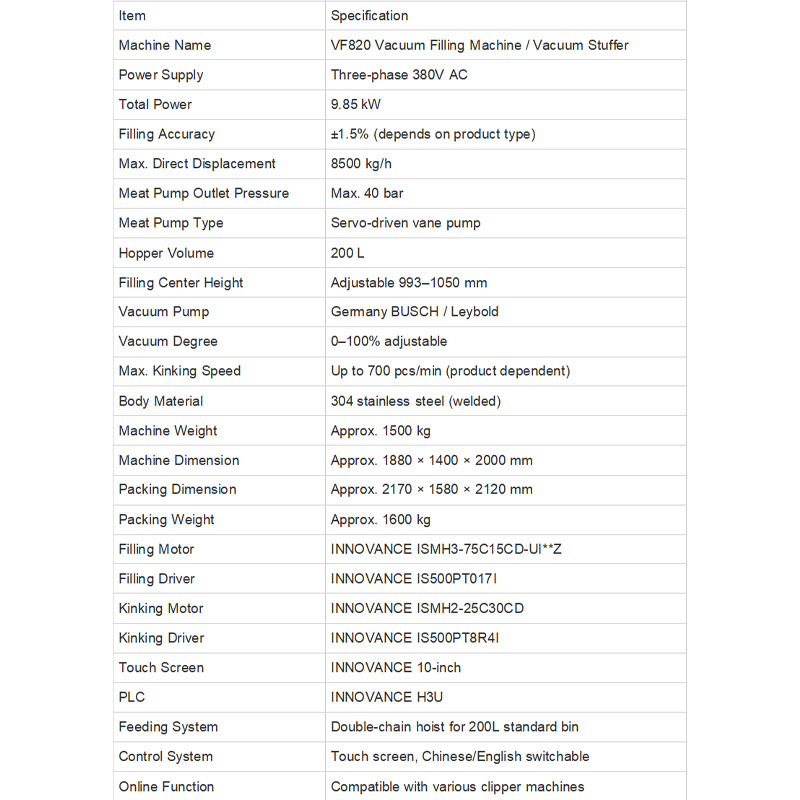

Item	Specification
Machine Name	VF820 Vacuum Filling Machine / Vacuum Stuffer
Power Supply	Three-phase 380V AC
Total Power	9.85 kW
Filling Accuracy	±1.5% (depends on product type)
Max. Direct Displacement	8500 kg/h
Meat Pump Outlet Pressure	Max. 40 bar
Meat Pump Type	Servo-driven vane pump
Hopper Volume	200 L
Filling Center Height	Adjustable 993–1050 mm
Vacuum Pump	Germany BUSCH / Leybold
Vacuum Degree	0–100% adjustable
Max. Kinking Speed	Up to 700 pcs/min (product dependent)
Body Material	304 stainless steel (welded)
Machine Weight	Approx. 1500 kg
Machine Dimension	Approx. 1880 × 1400 × 2000 mm
Packing Dimension	Approx. 2170 × 1580 × 2120 mm
Packing Weight	Approx. 1600 kg
Filling Motor	INNOVANCE ISMH3-75C15CD-UI**Z
Filling Driver	INNOVANCE IS500PT017I
Kinking Motor	INNOVANCE ISMH2-25C30CD
Kinking Driver	INNOVANCE IS500PT8R4I
Touch Screen	INNOVANCE 10-inch
PLC	INNOVANCE H3U
Feeding System	Double-chain hoist for 200L standard bin
Control System	Touch screen, Chinese/English switchable
Online Function	Compatible with various clipper machines

Product Details

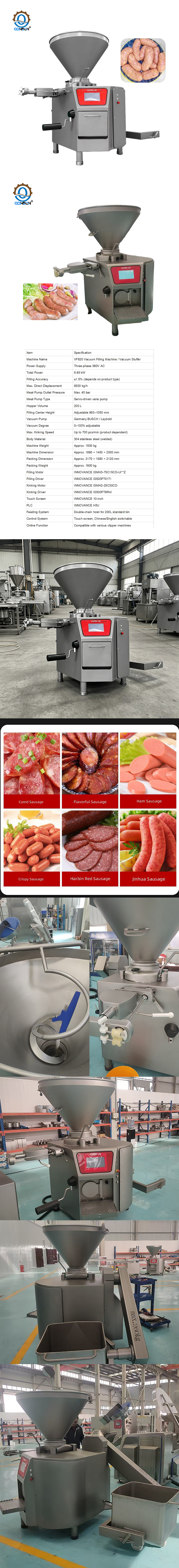

详情页

FAQ

1. What materials is the machine made of?

It is fully welded with food-grade 304 stainless steel, meeting international food safety standards, easy to clean, corrosion-resistant and durable.

2. What products can this machine fill?

Suitable for filling pasty and granular meat materials (not for liquids), including fresh sausage, smoked sausage, cooked sausage and other meat products.

3. What is the maximum output and filling accuracy?

Max direct filling capacity: 8500 kg/h; filling accuracy: ±1.5% (varies slightly by product).

4. What brand is the vacuum pump?

Equipped with original German BUSCH or Leybold vacuum pump, vacuum degree 0–100% adjustable, ensuring no bubbles in products.

5. Can it work with other equipment?

Yes, it can connect with clipper machines, linking & kinking devices of most brands to realize fully automatic production.

6. What is the hopper volume and feeding method?

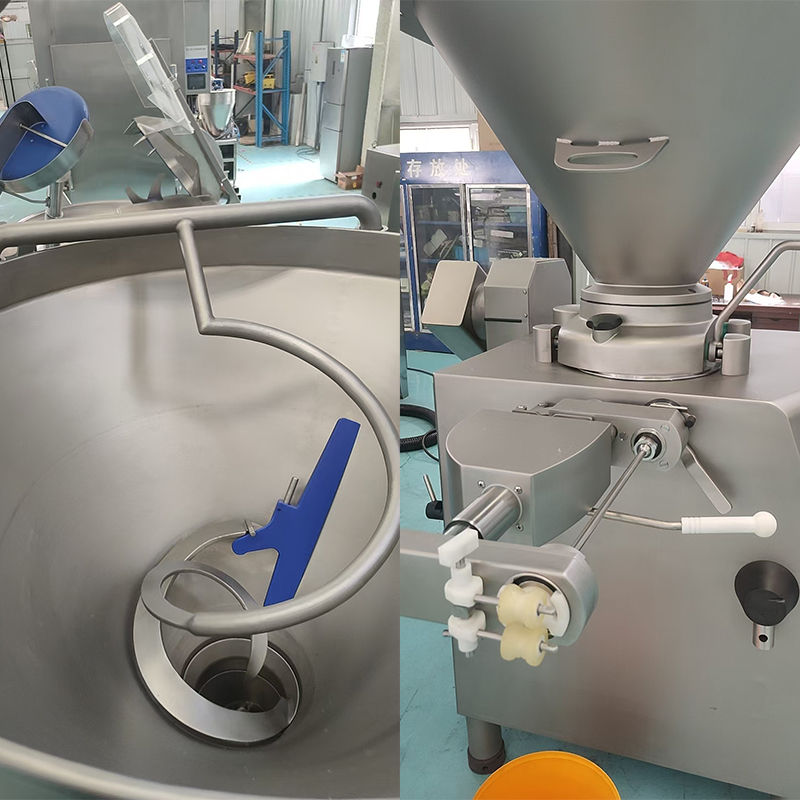

Hopper: 200L, equipped with double‑chain hoist for fast, hygienic loading of standard 200L bins.

7. What control system does it use?

10‑inch touch screen (Chinese/English switchable) + INNOVANCE H3U PLC, supporting quantitative filling, quantitative kinking and IoT real‑time monitoring.

8. What about wearing parts and maintenance?

Core parts adopt high‑precision alloy steel with strong wear resistance; manipulator is universal with imported models, spare parts sufficient, maintenance simple and low cost.
