Automatic High Capacity Egg Inkjet Printer

This Y-600 series egg coding machine is specially designed for the egg processing industry, perfectly matching with egg washing machines, grading machines, and packing machines. It can be flexibly customized with extended conveyor belts to fit different production line layouts. The machine supports 1-6 print heads, making it ideal for marking eggs, duck eggs, and other egg products with production dates, traceability codes, brand logos, and QR codes. It also offers multi-language interface options (Chinese, English, Korean, Russian, etc.) to meet global market demands.

Quantity:
Availability:





Inquiry Add to Cart AliExpress

Model:
Y-600-1
Brand:
QDMECH
Code:
HN-20260409-01

Egg Inkjet Printer Egg Stamping Inkjet Marking Machine Egg Coding Machine Egg Barcode Stamping Machine Egg Letters Coder

Product Advantage

Technical Parameters

Product Details

Product Video

FAQ

Product Advantage

1.Food-Safe & Reliable

Adopts food-contact grade ink cartridges with authoritative test reports, ensuring safe and hygienic egg coding without any health risks.

2.High Cost-Efficiency

A single set of cartridges can print up to 800,000+ eggs, with low running costs and maintenance-free design (integrated print head and ink cartridge structure) to reduce downtime.

3.Flexible & Customizable

Supports 1-6 print head configurations, compatible with washing, grading, and packing machines. Extended conveyor belts and multi-language interfaces are available for global customers.

4.Stable & Durable

Equipped with imported nozzle chips for clear, non-clogging printing, and a spring anti-collision device to protect the print head. We provide comprehensive after-sales support for quality assurance.

Technical Parameters

This egg printing machine features a main unit measuring 560 × 370 × 285 mm with a net weight of approximately 16 kg, and packing dimensions of 610 × 345 × 390 mm. It adopts a TIJ thermal inkjet print head and uses YUDA9 ink cartridges, equipped with a 7‑inch HD touch screen and Linux operating system, supporting Chinese, English, Korean, Russian and other interface languages. The machine is configured with 6 ink cartridges of 40 ml each, with a print head quantity of 1–6 heads (customizable), offering a font height of 2–9 mm and a printing distance of 2–10 mm. It reaches a maximum printing speed of 50,000 eggs per hour, and one set of cartridges can print about 800,000 to 1,000,000 times. It operates stably at -5°C to 50°C and 10%–80% RH (non‑condensing), with a power supply of 110~220V 50/60Hz and power consumption of 100W for the main unit. It is compatible with egg washing machines, grading machines and packing machines, and supports customization including extended conveyor belts and multi‑language functions.

	Item	Specification
	Machine Dimensions	560 × 370 × 285 mm
	Net Weight	Approx. 16 kg
	Packing Dimensions	610 × 345 × 390 mm
	Ink Cartridge Type	YUDA9
	Print Head Type	TIJ Thermal Inkjet
	Operating System	Linux System
	Display	7-inch HD Touch Screen
	Interface Languages	Chinese, English, Korean, Russian, etc.
	Ink Volume	40 ml × 6 heads
	Font Height	2–9 mm
	Printing Distance	2–10 mm
	Printing Speed	Max. 50,000 eggs/hour
	Printing Capacity	Approx. 800,000–1,000,000 prints per set of cartridges
	Operating Temperature	-5°C ~ 50°C
	Operating Humidity	10%–80% RH (non-condensing)
	Power Supply	110~220V, 50/60Hz
	Power Consumption	100W (main unit)
	Print Head Quantity	1–6 heads (customizable)
	Compatible Equipment	Egg washing machines, grading machines, packing machines
	Customization	Extended conveyor belt available; multi-language support

Product Details

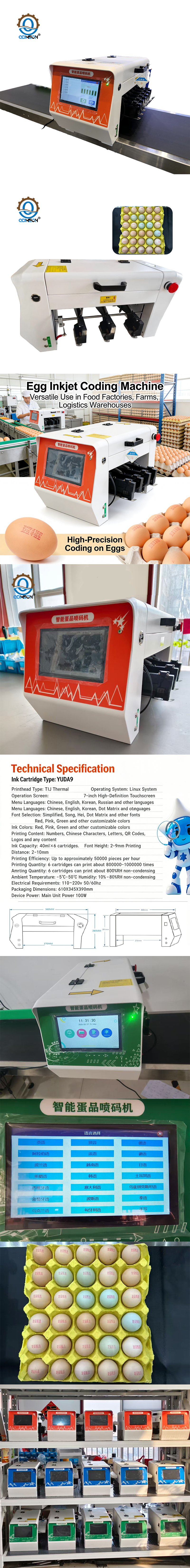

详情页

Product Video

FAQ

Q: What products is this inkjet printer compatible with?

A: This machine is specifically designed for egg coding and is fully compatible with egg washing machines, grading machines, and packaging machines. It seamlessly integrates into modern egg processing production lines.

Q: Does it support multi-language operation?

A: Yes, it comes with a user-friendly 7-inch HD touch screen display and supports multiple interface languages, including Chinese, English, Korean, Russian, and more, to meet global market demands.

Q: What is the maximum printing speed for eggs?

A: It offers high efficiency with a maximum printing speed of 50,000 eggs per hour, making it suitable for high-volume production lines.

Q: What is the printing resolution and adjustable range?

A: It features a TIJ thermal inkjet print head. The adjustable font height ranges from 2mm to 9mm, and the printing distance can be set between 2mm to 10mm, ensuring clear and legible codes even on curved egg surfaces.
