QD-20
QDMECH
AM-260827-003
Advantges
1. The whole machine has good stability and low noise.
2. The separation of slag and slurry can be completed at one time; the starch is of good quality and relatively fine, and the slag does not contain slag skin, slag lump, or diced matter.
3. Save consumables, automatically feed potatoes, crush, separate, discharge slurry, and discharge slag.
4. The licker roller works with water, which shortens the oxidation reaction in the air of the slag slurry and improves the purity of starch.
Technical Parameters
Model | QD-20 |
Voltage | 380V |
Supporting power | medium speed 1440 rpm (380V) 2 ton type: 5.5 kW 2 ton double-layer machine needs 7.5 kW. |
Product size | 2 ton type: 1300*500*850mm 2 tons double layer: 1300*600*1300mm |
washing machine size | 2000*800*1100mm/ 2000*650*500mm/ total length 4 meters |
Rotating speed | main shaft 2000, counter shaft 600 rp mmedium speed 1440 rpm |
Luosi1 | 80 mesh (can be replaced as needed). |
The height of the licker barb | 2MM |
The separation degree of slurry and residue is about 98%, and the powder content of residue is about 2%. | |
Application

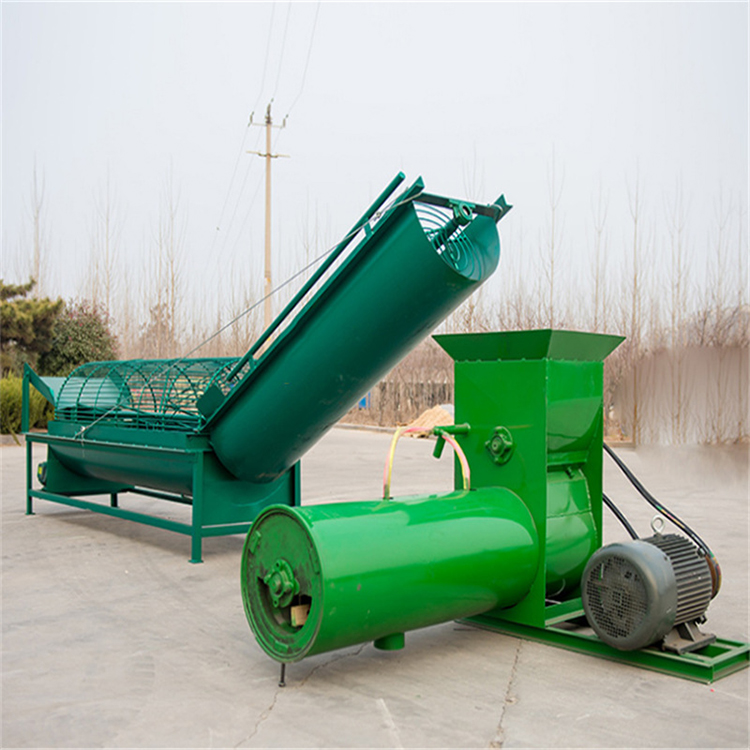

High degree of automation, from fresh potato cleaning, fresh potato conveying, crushing to slag and slurry separation.
There are many types of processing raw materials: potatoes, sweet potatoes, plantain taro, cassava, kudzu root, lotus root, etc. can be processed.
FAQ
Q1: What raw materials can this starch machine process?
A: It works for potatoes, sweet potatoes, cassava, taro, plantain, kudzu root, lotus root and other root crops for starch extraction.
Q2: What is the separation efficiency of slurry and residue?
A: The separation degree reaches around 98 %, only about 2 % powder remains in the residue for high‑quality starch output.
Q3: What power and voltage for QD‑20 model?
A: Standard voltage is 380V. 2‑ton type power:5.5 kW; 2‑ton double‑layer type power:7.5 kW.
Q4: Can we change the mesh size?
A: It is equipped with 80‑mesh screen, and replacement screens of different meshes are available as required.
Q5: Does this unit need manual feeding all the time?
A: It supports automatic feeding, crushing, slurry discharging and residue discharging for high automation and less labor input.
Q6: Does the machine help reduce starch oxidation?
A: The scraping roller runs with water, which shortens air‑exposed oxidation and improves final starch purity.
