Automatic Vacuum Packaging Machine

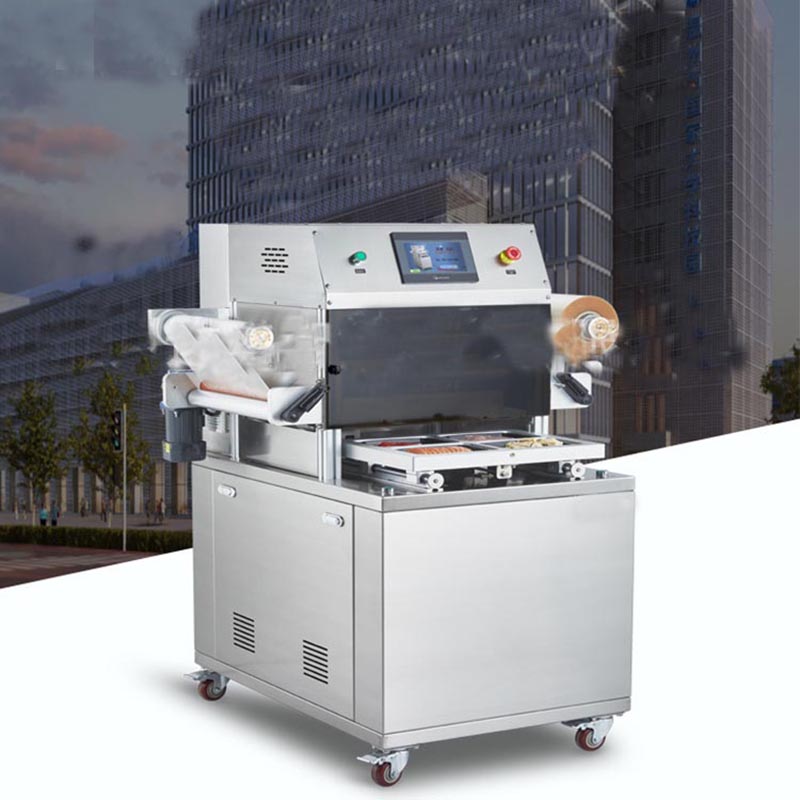

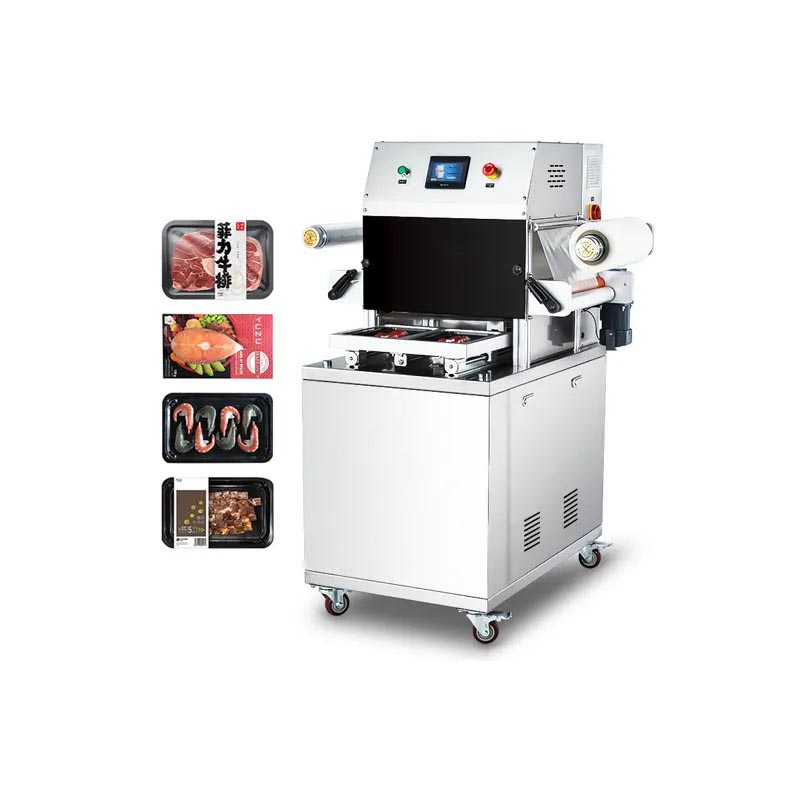

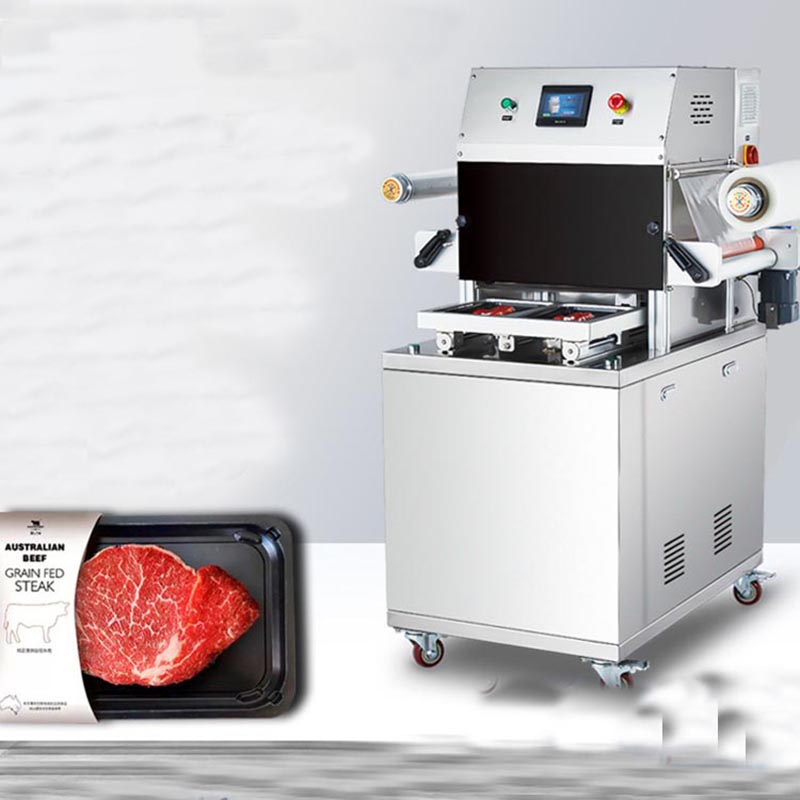

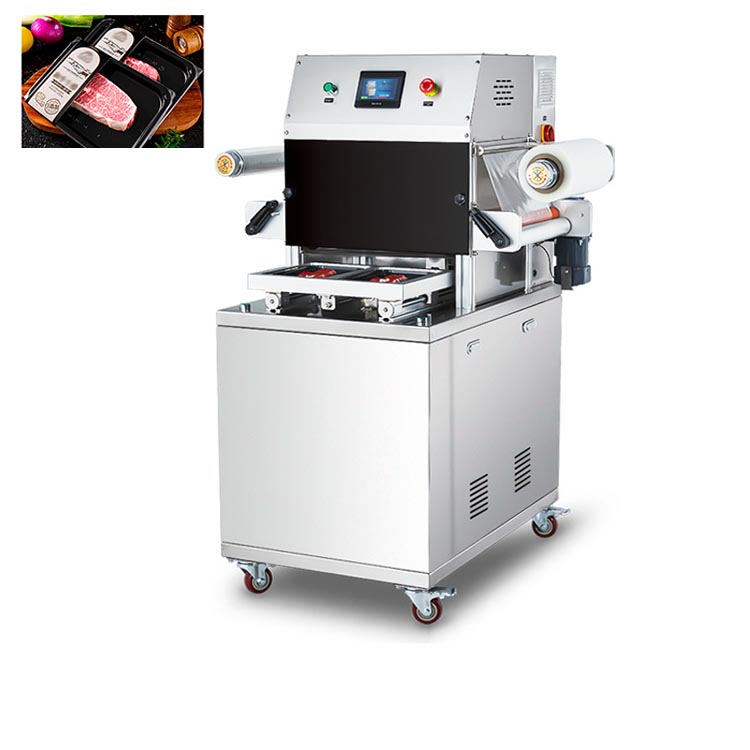

Fully automatic vacuum skin packaging machine, with a wide range of applications, can be used in various scenarios, such as fresh meat skin, whole fish skin, whole chicken skin, durian skin, etc., with floor standing vacuum skin packaging, automatic film cutting, multiple boxes at once, strong suction and no air leakage.

Quantity:
Availability:





Inquiry Add to Cart

vacuum machine for food packaging vacuum skin packaging machine electric vacuum packaging machinery food packaging machine vacuum packaging machinery rice vacuum packaging machine vertical vacuum packaging machine vacuum skin packing machine vacuum sealer multi-function packaging machines packaging machine snack vacuum packaging machine vacuum packaging machine for plastics packing

Product Advantage

Technical Parameters

Product Uses

Product Video

Product Advantage

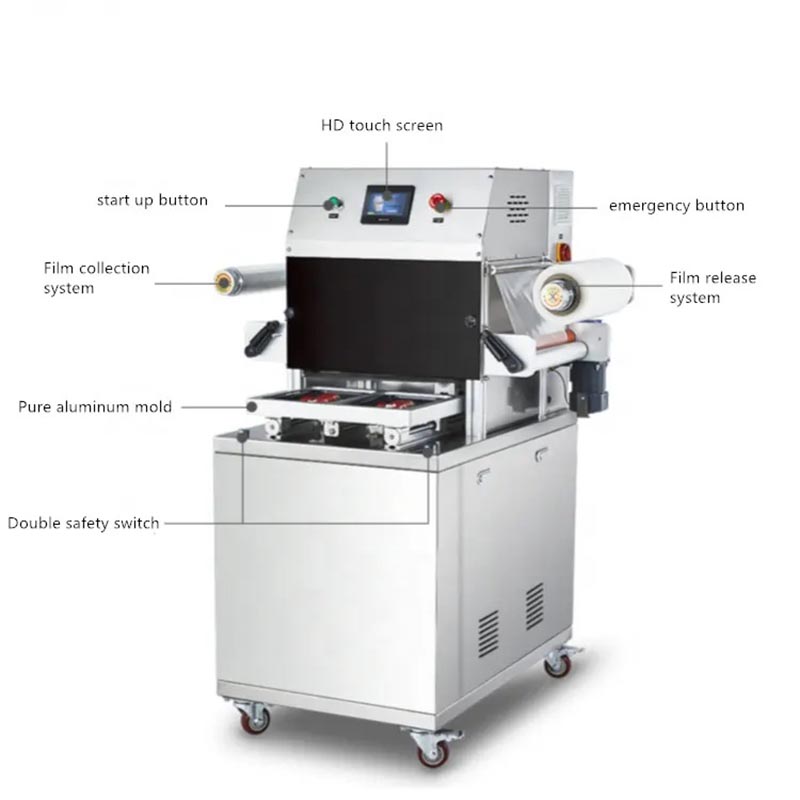

The fully automatic vacuum skin packaging machine has the following characteristics.

1. Vacuum body fitting, high-end packaging

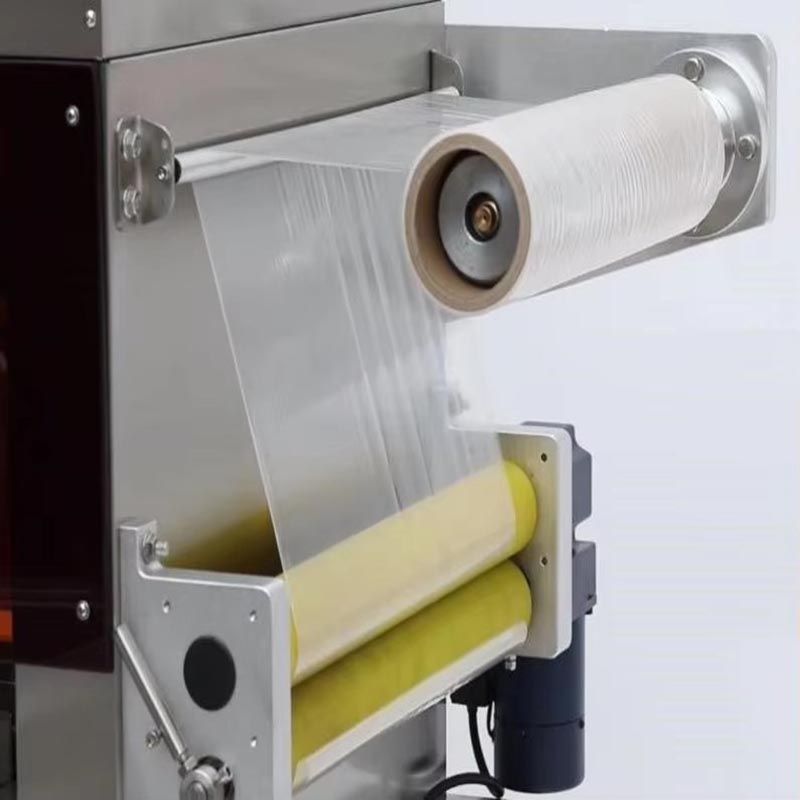

2. Automatic film cutting and rolling

3. Box type considerate preservation technology extends preservation time

4. Good safety protection performance and easy operation.

5. Sealed packaging without odor, refrigerated storage for 7-12 days

详情图（3）

详情图 (4)

Technical Parameters

Fully Automatic Vacuum Skin Packaging Machine
Model	DQ305L-V	DQ320L-V	DQ370L-V	DQ400L-V	DQ440L-V
Maximum width of rolled film	280mm	320mm	370mm	390mm	440mm
Maximum diameter of rolled film	220mm	220mm	220mm	220mm	220mm
Gas replacement rate	≥99%	≥99%	≥99%	≥99%	≥99%
Valve accuracy	±2%	±2%	±2%	±2%	±2%
Packaging speed	3～4 times/min	3～4 times/min	3～4 times/min	5～6 times/min	5～6 times/min
Production capacity (box/hour) output 1	≈240	≈240	≈240	≈240	≈240
Production capacity (boxes/hour) out of 2	≈400	≈400	≈400	≈400	≈400
Production capacity (boxes/hour) out of 4	———	———	≈700	≈700	≈700
Vacuum pump displacement	20	40	63	100	100
Voltage	220v/50hz	380v/50hz	380v/50hz	380v/50hz	380v/50hz
Power	2.5kw	3.5kw	4.5kw	5kw	5.3kw
Air pressure	0.6～0.8Mpa	0.6～0.8Mpa	0.6～0.8Mpa	0.6～0.8Mpa	0.6～0.8Mpa
Weight	145kg	160kg	265kg	300kg	300kg
Dimensions	920×780×1400mm	1020×920×1400mm	1080×980×1430mm	1200×1070×1480mm	1210×1140×1510mm
The maximum size of the tray (mm) is 1	310×220×100（×1）	390×260×100（×1）	———	———	———
The maximum size of the tray (mm) is 2	220×140×100（×2）	260×180×100（×2）	310×200×100（×2）	330×230×100（×2）	———
The maximum size of the tray (mm) is 4	———	———	200×140×100（×4）	230×150×100（×4）	260×170×100（×4）

Product Uses

Here are four specific application scenarios of automatic vacuum skin packaging machine.

1. Automatic vacuum skin packaging machine, suitable for sealed storage of fruits and vegetables, locking in fruit and vegetable moisture, and air conditioning storage of fruits and vegetables.

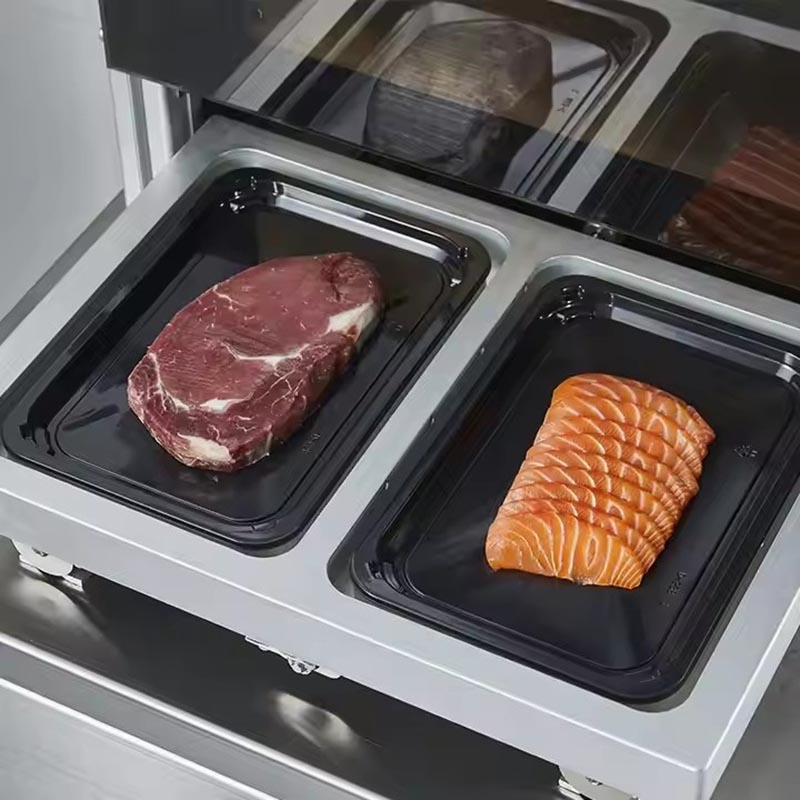

2. Suitable for sealed storage of various types of meat, slowing down meat spoilage and ensuring the taste of the meat.

详情图（1）
