Industrial Grade Vacuum Stuffer 304 Stainless Steel High Capacity Sausage Meat Filling Machine

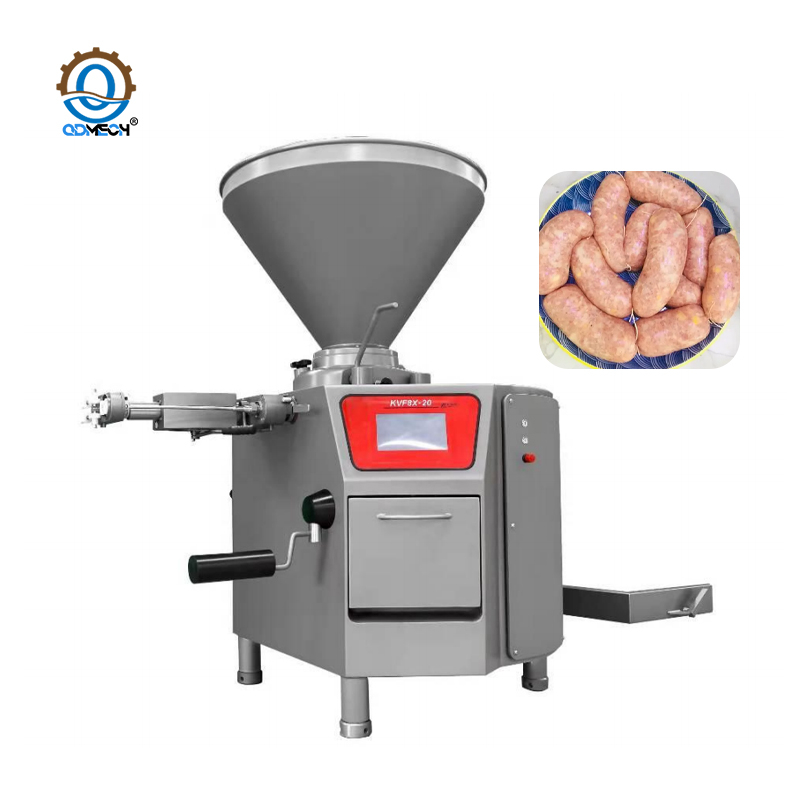

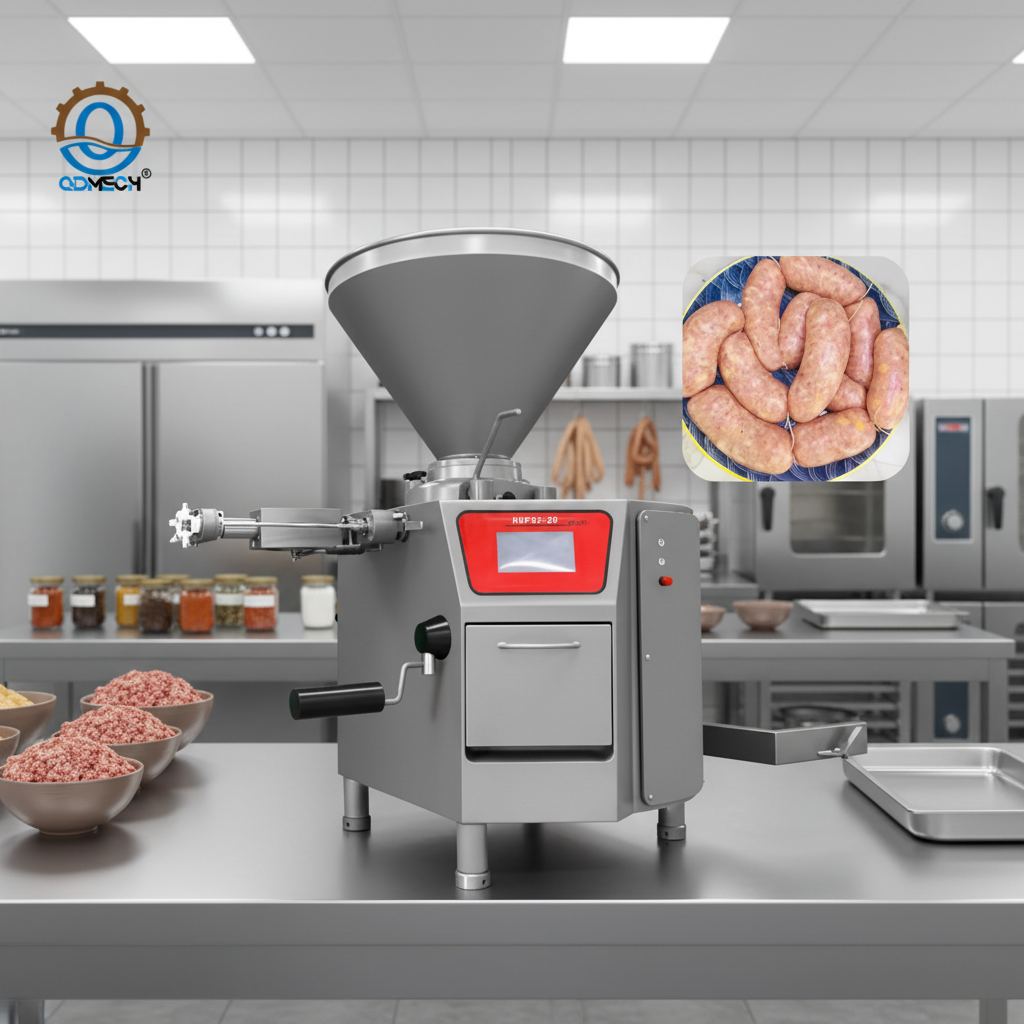

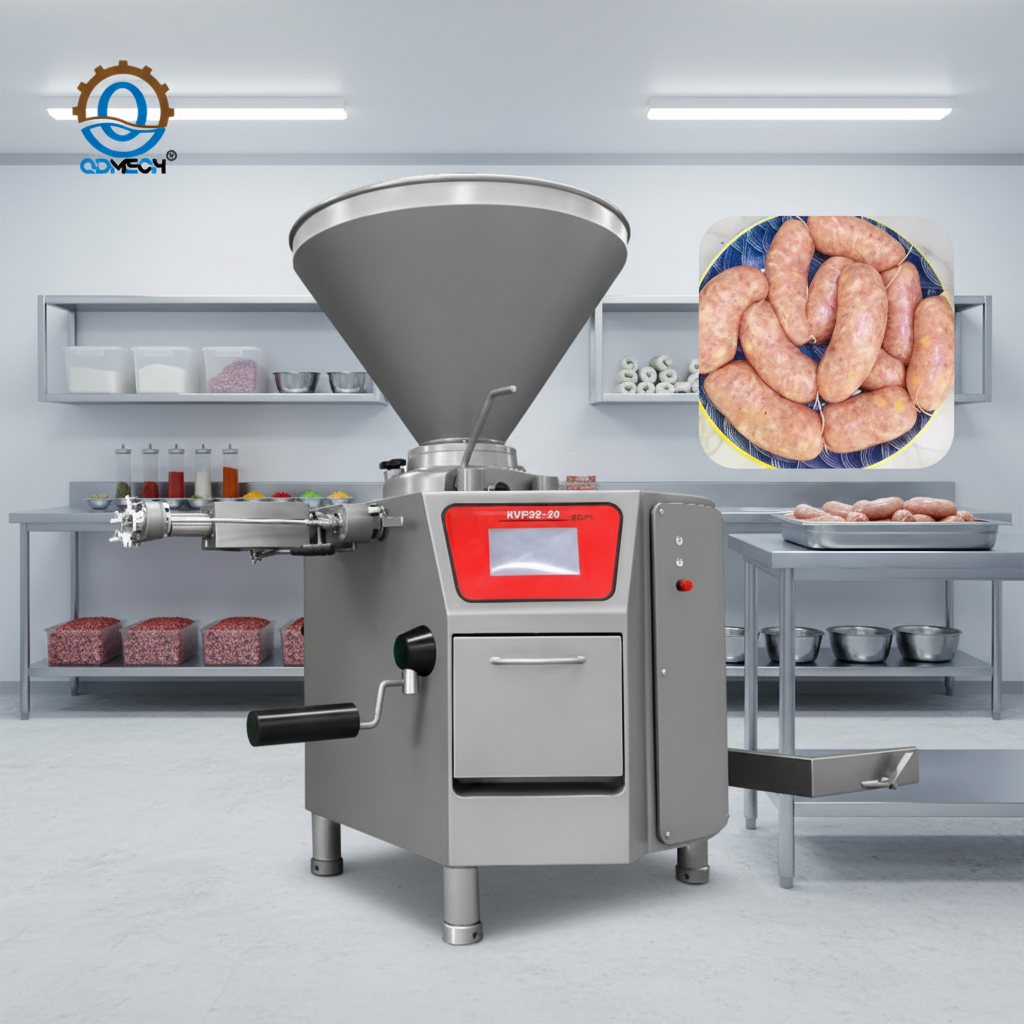

The VF820 Vacuum Filling Machine is a high-capacity, industrial-grade solution designed for the efficient processing of sausages and various meat products. Constructed from durable 304 stainless steel, it ensures food safety and longevity in demanding production environments. The machine features a massive 200L hopper equipped with a double-chain hoist for easy loading, capable of achieving a maximum filling capacity of 8500 kg/h. It utilizes a high-quality Germany BUSCH or Leybold vacuum pump to eliminate air bubbles, ensuring a dense texture and superior product quality.

Quantity:
Size:	188014002000 mm
Material:	stainless steel
Availability:





Inquiry Add to Cart AliExpress

Model:
QD-VF820
Brand:
QDMECH
Code:
AM-260529-001

Vacuum Stuffer Vacuum Filling Machine Sausage Stuffer Meat Filling Machine Meat Stuffer 304 Stainless Steel Stuffer Industrial Vacuum Stuffer High Capacity Sausage Stuffer PLC Controlled Filler Servo Driven Stuffer

Product Advantage

Technical Parameters

Application Scenarios

Product Video

Product Advantage

1.Food-grade & Durable Structure

Made of high‑quality 304 stainless steel, easy to clean, fully meets food safety standards, sturdy and long service life.

2.High Efficiency & Large Capacity

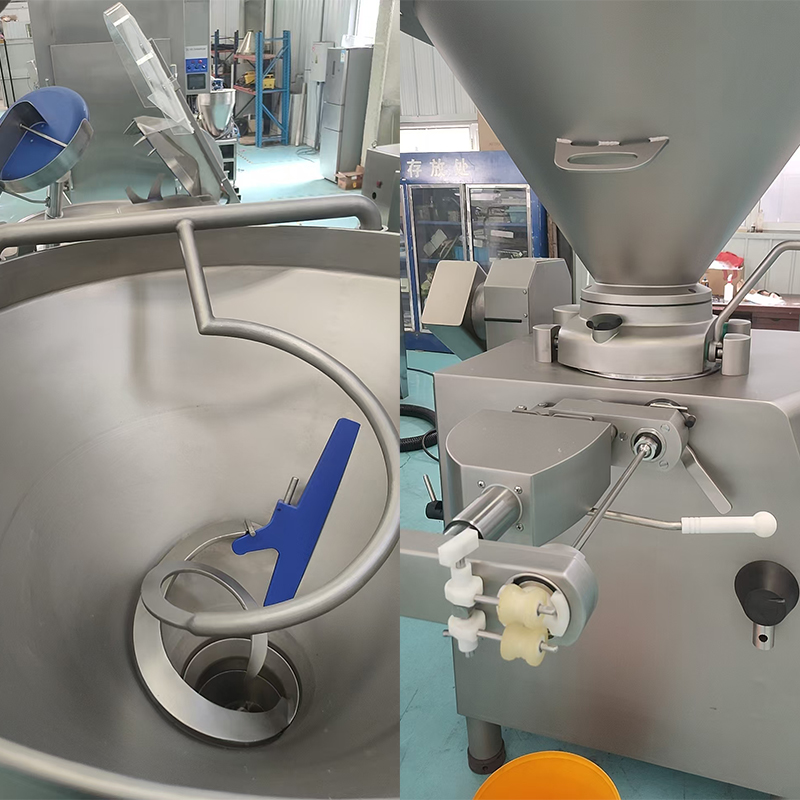

Max filling capacity up to 8500KG/H, equipped with 200L hopper and double‑chain hoist for fast and hygienic material loading.

3.Stable & Precise Performance

Servo motor drive with 20‑bit encoder ensures high filling accuracy (±1.5%). Self‑developed hard‑tooth reducer delivers stable transmission.

4.German Vacuum System

Adopts original vacuum pump, providing stable vacuum, no bubbles in products, and excellent filling quality.

5.Easy Operation & Maintenance

10-inch touch screen (Chinese/English switchable), IoT real-time monitoring, universal manipulator, and low wearing parts reduce operating cost.

6.Strong Adaptability

Large discharge port for thick or large particles; vacuum adjustable 0–100% to fit different products and processes.

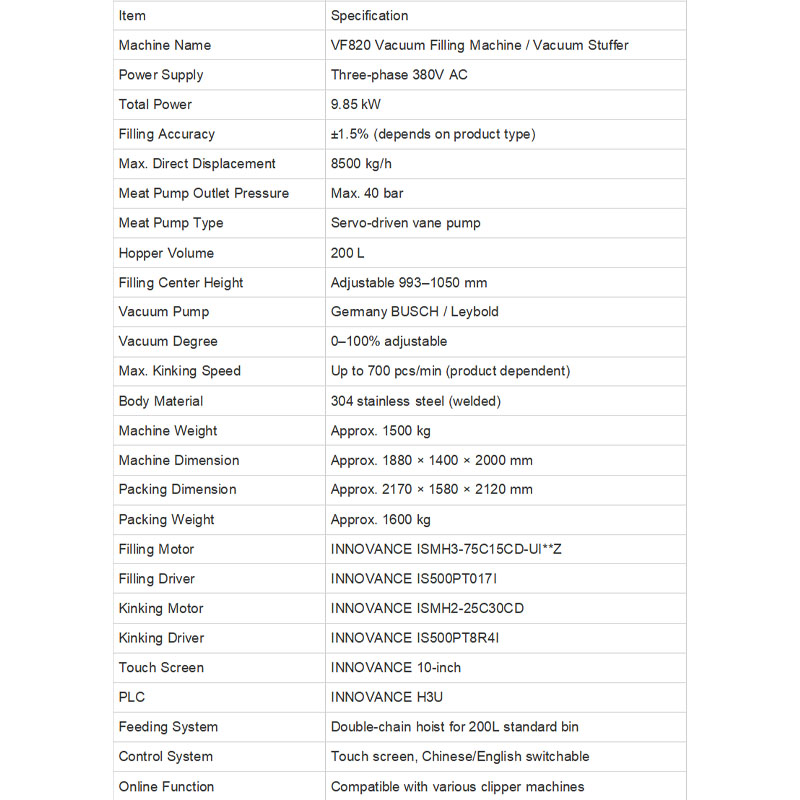

Technical Parameters

Item	Specification
Machine Name	VF820 Vacuum Filling Machine / Vacuum Stuffer
Power Supply	Three-phase 380V AC
Total Power	9.85 kW
Filling Accuracy	±1.5% (depends on product type)
Max. Direct Displacement	8500 kg/h
Meat Pump Outlet Pressure	Max. 40 bar
Meat Pump Type	Servo-driven vane pump
Hopper Volume	200 L
Filling Center Height	Adjustable 993–1050 mm
Vacuum Degree	0–100% adjustable
Max. Kinking Speed	Up to 700 pcs/min (product dependent)
Body Material	304 stainless steel (welded)
Machine Weight	Approx. 1500 kg
Machine Dimension	Approx. 188014002000 mm
Packing Dimension	Approx. 2170 × 1580 × 2120 mm
Packing Weight	Approx. 1600 kg
Filling Motor	INNOVANCE ISMH3-75C15CD-UI**Z
Filling Driver	INNOVANCE IS500PT017I
Kinking Motor	INNOVANCE ISMH2-25C30CD
Kinking Driver	INNOVANCE IS500PT8R4I
Touch Screen	INNOVANCE 10-inch
PLC	INNOVANCE H3U
Feeding System	Double-chain hoist for 200L standard bin
Control System	Touch screen, Chinese/English switchable
Online Function	Compatible with various clipper machines

Application Scenarios

VF820 vacuum filling machine is widely used for sausage processing, meat products manufacturing, and food industrial production lines. It is suitable for filling various pasty and granular meat materials (excluding liquid), such as fresh sausage, smoked sausage, cooked sausage, and other processed meat products. The machine can work with automatic linking & kinking devices and card punching machines from different brands, realizing high-efficiency automated filling, quantitative dosing, and forming production. It is ideal for meat processing factories, food production plants, central kitchens, and large scale food processing enterprises.

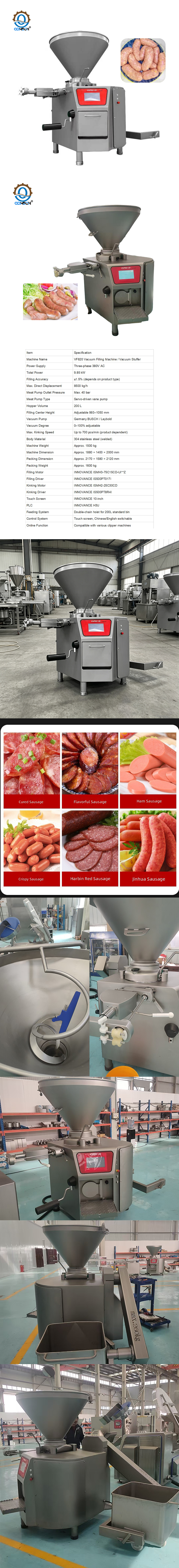

详情页

Product Video

FAQ

Q: What types of meat products can the VF820 process?

A: The VF820 is versatile and suitable for filling various pasty and granular meat materials, including fresh sausage, smoked sausage, cooked sausage, and other processed meat products. It handles both fine emulsions and coarse granular mixtures effectively.

Q: How does the machine ensure there are no air bubbles in the sausage?

A: It employs a high-performance vacuum system featuring an original Germany BUSCH or Leybold vacuum pump. The vacuum degree is adjustable from 0–100%, which effectively removes air from the meat mixture before filling, resulting in a compact texture and better shelf life.

Q: Is the machine compatible with automatic casing linking machines?
A: Yes, the VF820 is designed to work seamlessly with automatic linking devices and card punching machines from different brands, allowing for a fully automated production line from filling to forming.

Q: How is the large 200L hopper loaded safely?

A: The machine comes equipped with a double-chain hoist system specifically designed for the 200L standard bin. This feature allows for safe and hygienic lifting and loading of heavy meat mixtures without manual strain.

Q: What is the power requirement for this machine?

A: The VF820 requires a Three-phase 380V AC power supply with a total power consumption of approximately 9.85 kW.
