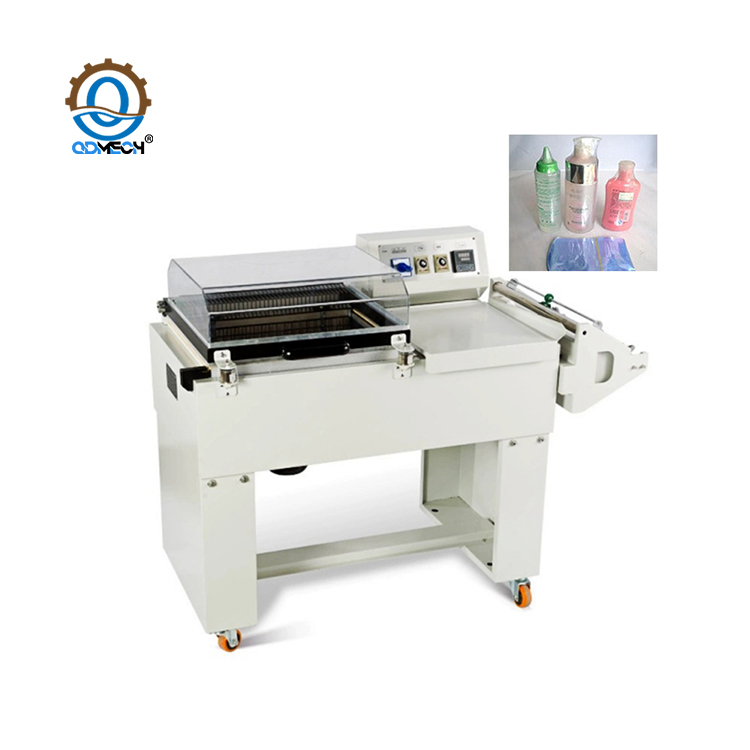

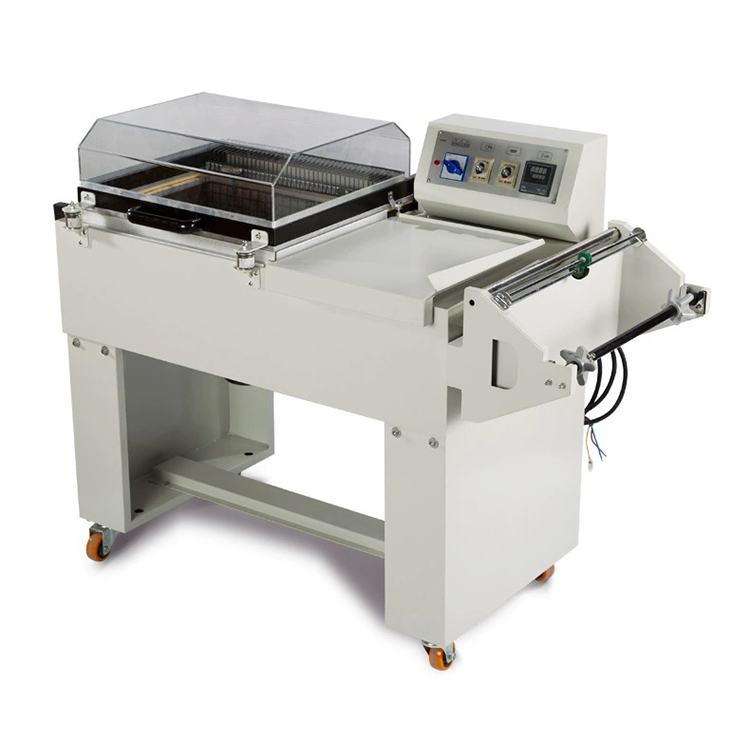

Film PVC PP POF 2 in 1 Sealing Cutting Heat Shrink Wrapping Machine

FM series 2 IN 1 shrink packaging machine achieves film sealing, cutting and shrink in one operation and is a very economical packaging machine for small amount productivity; use POF, PVC, PP as packaging materials. It has two functions for option: one is only seal-cut; another is both seal-cut and shrinking. The hot air is kept in a small heating room, which save power consumption greatly. In the shrinking process, packing products are wrapped perfectly with strong hot circulating airflow. Shrinking process can be observed through transparent cover. FM series machine is widely used in the external packaging of beverage, gift, hardware and plastics, etc.

Quantity:
Availability:





Inquiry Add to Cart AliExpress

Model:
FM-5540
Brand:
QDMECH
Code:
HN-20260109-02

Heat Shrink Machine Shrink Wrapping Machine Heat Shrink Packaging Machine Heat Shrink Wrap Machine Heat Shrink Sealing Machine Shrink Packing Machine Two-in-One Heat Shrink Machine Automatic Shrink Wrap Machine

Product Advantage

Technical Parameters

Application Scenarios

Product Video

Product Advantage

2-in-1 Multifunctional Design
Supports two optional working modes (independent seal-cut function + integrated seal-cut & shrink function), eliminating the need for multiple devices and adapting to diverse packaging needs of small-batch production.
Energy-Saving & Efficient Heating
The hot air is confined in a compact heating chamber, minimizing heat loss and greatly reducing power consumption while ensuring fast and uniform shrinkage, with a working efficiency of 500-800 times per hour.
User-Friendly Operation & Observation
Adopts a simple operational structure that requires no professional training, and is equipped with a transparent cover allowing real-time observation of the shrinking process, facilitating timely adjustments and ensuring packaging quality.
Wide Film Compatibility
Compatible with POF, PVC, PP shrink films with a thickness of 0.015-0.08mm, meeting the packaging requirements of different materials and product types without limiting material selection.
Stable Performance & Durable Structure
Built with high-quality components (including a 250W fan with 2800r rotation speed) and a robust frame design, ensuring stable operation during long-term use and reliable packaging results for various products.

Technical Parameters

The FM-5540 2-in-1 Shrink Packaging Machine is designed with practical and reliable technical specifications: it operates on a power source of 220V 50HZ or 110V 60HZ, with a total power of 3.8KW and a 250W fan running at 2800r. The seal-cut time can be adjusted within 0-3 seconds, and the machine achieves a working efficiency of 500-800 times per hour. It accommodates shrink films with a thickness of 0.015-0.08mm and can handle products with a maximum packaging size of 550×400×300mm. The net weight of the machine is 120kg, with EXW prices of 1040USD (220V 50HZ) and 1499USD (110V 60HZ) respectively.

Model	FM5540
Power Source	220V 50HZ
Seal-cut time	0-3 seconds
Shrinking time	500-800 times/hour
Film thickness	0.015-0.08mm
Fan power	250W
Power	3.8KW
Working efficiency	500-800times/hour
Max. packing Size	550×400×300mm
Thickness of shrink film	0.015-0.08mm
Weight	120kg

Application Scenarios

The FM-5540 2-in-1 Shrink Packaging Machine is an economical and practical packaging solution widely suitable for small-batch production scenarios across multiple industries. It is ideal for the external packaging of beverages (such as bottled drinks, canned juices), gifts (including boxed souvenirs, customized presents), hardware products (like small tools, metal components), and plastic items (such as plastic parts, daily-use plastic products). Additionally, it can be used for packaging small electronic accessories, stationery sets, snack boxes, and other small to medium-sized products, providing neat, tight, and aesthetically pleasing packaging effects that enhance product presentation and protect items from dust, moisture, and damage during storage and transportation. It is particularly suitable for small factories, workshops, retail stores, and online store warehouses with limited production volume but diverse packaging needs.

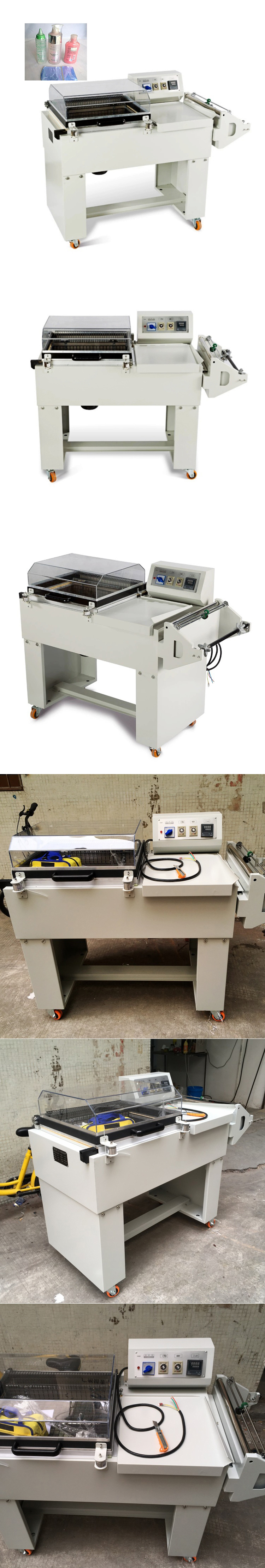

详情页
