Home » Products » Snack Beverage Machine » Commercial High Efficiency Ice Plate Machine With Middle Ice Outlet

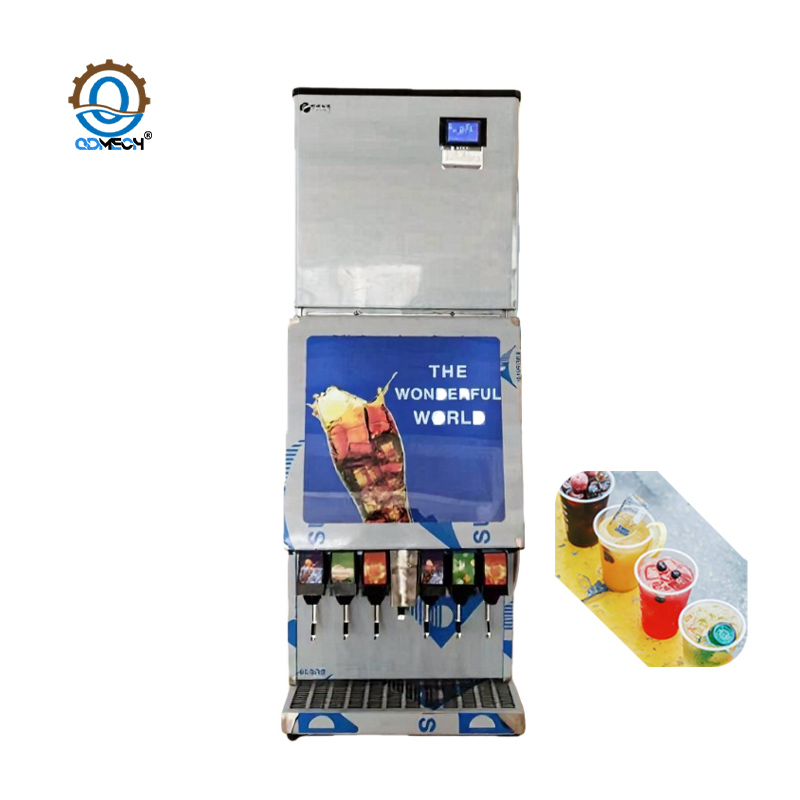

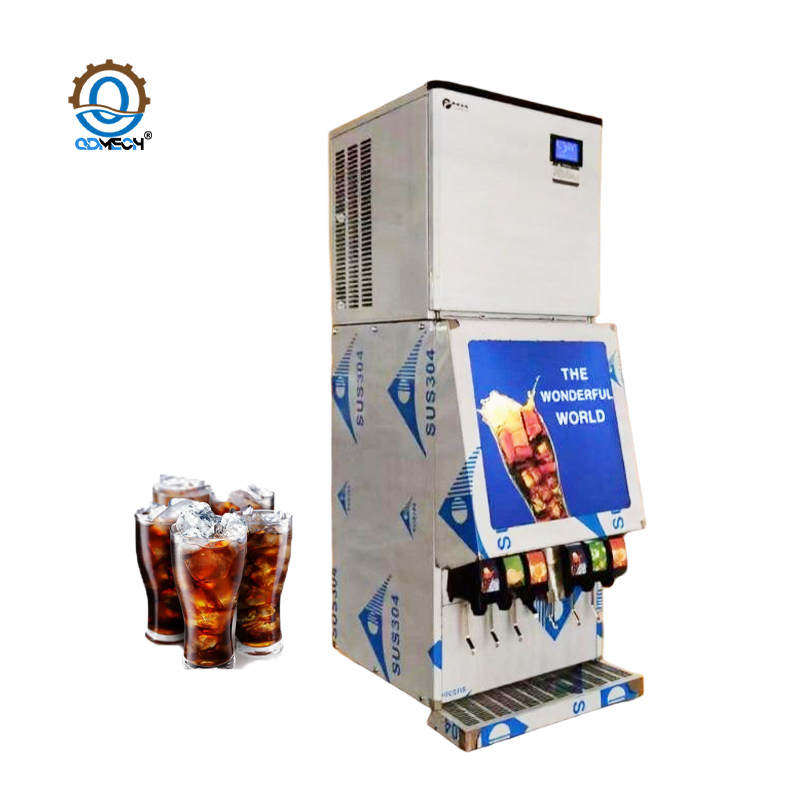

Commercial High Efficiency Ice Plate Machine With Middle Ice Outlet

This integrated carbonated beverage machine with ice dispenser is widely used in fast food restaurants, convenience stores, gas stations, cinemas, catering halls, cafes, and self-service beverage shops. It perfectly meets the demand for fast, one-stop cold drink service, allowing customers to customize carbonated beverages like cola, sprite, and fanta with fresh ice directly at the point of sale.

Quantity:
Availability:





Inquiry Add to Cart AliExpress

Model:
BB-4-1
Brand:
QDMECH
Code:
HN-20260513-01

Carbonated Beverage Machin Cola Machine Ice Plate Machine Cold Beverage Dispenser 6 Valve Ice Plate Machine Cola Machine With Ice Outlet Soda Drink Machine Ice Beverage Dispenser Beverage Dispenser Machine

Product Advantage

Technical Parameters

Product Details

FAQ

Product Advantage

1.All-in-One Beverage & Ice Solution

Combines a 6-valve carbonated drink dispenser with an integrated ice outlet, eliminating the need for a separate ice machine. Customers can get both cold drinks and fresh ice in one go, streamlining service and saving kitchen space.

2.High Efficiency for High-Traffic Scenarios

With a 1700W single compressor, it delivers a high output of up to 150 cups per hour, ensuring fast service even during peak business hours, reducing customer wait times and improving turnover efficiency.

3.Compact & Space-Saving Design

The combined unit has a small footprint of just 57.5×78cm, fitting easily in limited counter or back-of-house spaces, making it ideal for small to medium-sized commercial venues.

4.Multi-Flavor Versatility

The 6-valve configuration supports dispensing of various carbonated beverages (cola, sprite, fanta, etc.) and other cold drinks, catering to diverse customer preferences with one machine.

5.Durable & Food-Safe Construction

Made of food-grade SUS304 stainless steel, it ensures long-lasting durability, easy cleaning, and compliance with commercial food safety standards.

Technical Parameters

Product Name	Integrated Carbonated Beverage Machine with Ice Dispenser
Product Model	BB-4-1
Configuration	6 beverage valves + 1 ice outlet
Total Power	1700W
Compressor Quantity	1 unit
Production Capacity	150 cups/hour

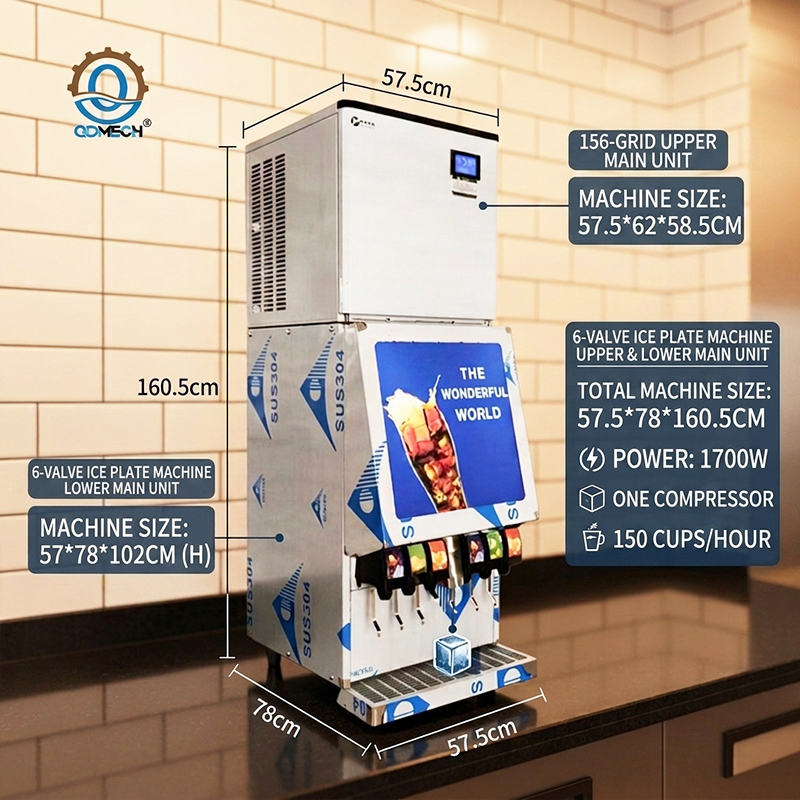

Upper Unit (Ice Maker) Size	57.5 × 62 × 58.5 cm (including plug)
Lower Unit (Beverage Dispenser) Size	57 × 78 × 102 cm (height)
Total Combined Size	57.5 × 78 × 160.5 cm
Ice Capacity	156 ice grids
Material	SUS304 stainless steel (food-grade)
Suitable Drinks	Carbonated beverages (cola, sprite, fanta, etc.) and other cold drinks

Product Details

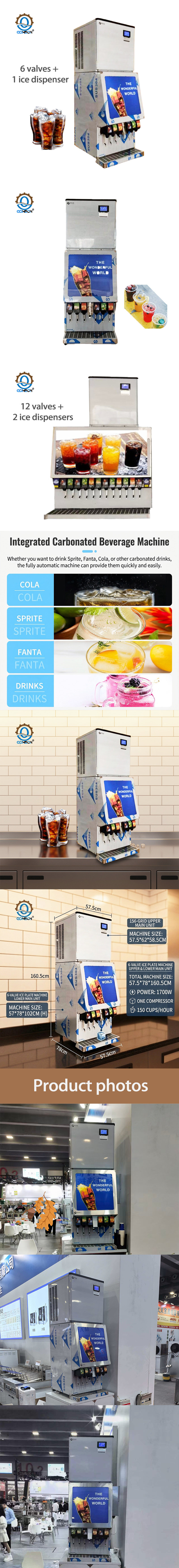

Ice plate machine

FAQ

Q1: What drinks can this machine dispense?

A1: It supports various carbonated beverages including cola, sprite, fanta, and other soda drinks, and you can add fresh ice directly via the middle ice outlet for iced drinks in one go.

Q2: What is the production capacity of this machine?

A2: It has a high efficiency of up to 150 cups per hour, ideal for fast-paced commercial environments like restaurants, convenience stores, and cinemas.

Q3: How many valves does this model have? Are other options available?

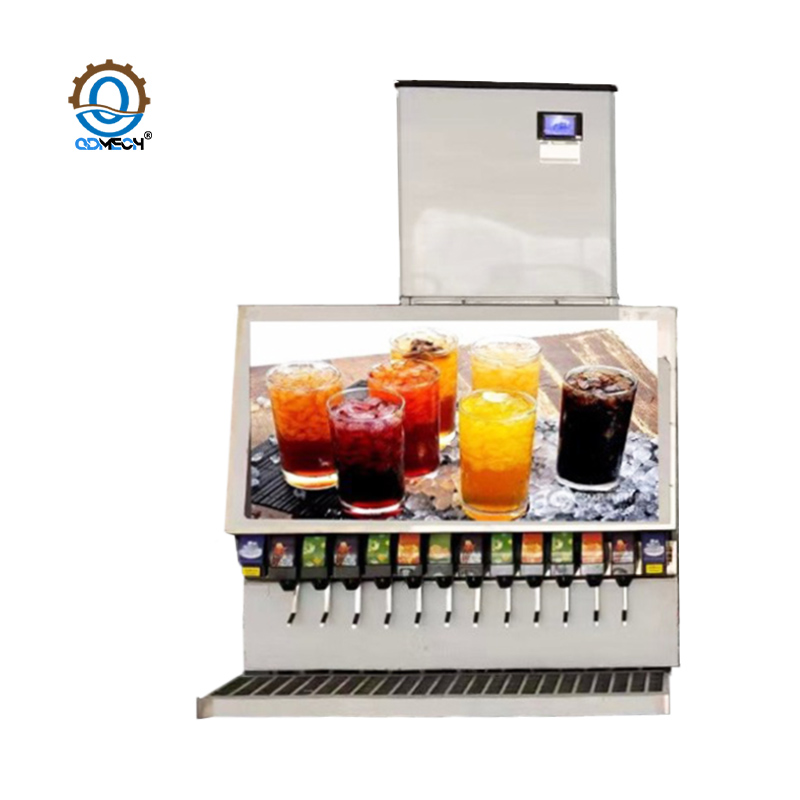

A3: This standard model comes with 6 beverage valves + 1 ice dispenser. We also offer customizable options from 4 to 12 valves to meet different business scales.

Q4: What are the power and compressor specifications?

A4: The machine runs on 1700W power with one reliable compressor, ensuring stable continuous operation for long working hours.

Q5: What are the dimensions of the full set machine?

A5: The combined upper (ice maker) and lower (beverage dispenser) unit has a total size of 57.5 × 78 × 160.5 cm. The upper ice unit alone is 57.5 × 62 × 58.5 cm, and the lower beverage unit alone is 57 × 78 × 102 cm.

Q6: Is the ice outlet compatible with the beverage dispensing?

A6: Yes, the middle ice outlet is integrated into the machine, allowing customers to get both drinks and fresh ice at the same station without needing a separate ice machine.

Q7: What material is the machine made of?

A7: The machine is constructed with food-grade SUS304 stainless steel, which is durable, easy to clean, and meets commercial food safety standards.

Q8: How many ice grids does the upper ice unit have?

A8: The upper ice maker features 156 ice grids, providing a steady supply of ice for continuous service.

Q9: Is the machine easy to maintain and clean?

A9: Yes, the modular design allows easy access to internal components for routine cleaning and maintenance, helping you keep the machine hygienic and extend its service life.

Q10: What kind of business scenarios is this machine suitable for?

A10: It is widely used in fast food restaurants, convenience stores, gas stations, cinemas, cafes, school canteens, and other high-traffic commercial venues that require fast cold beverage service.
