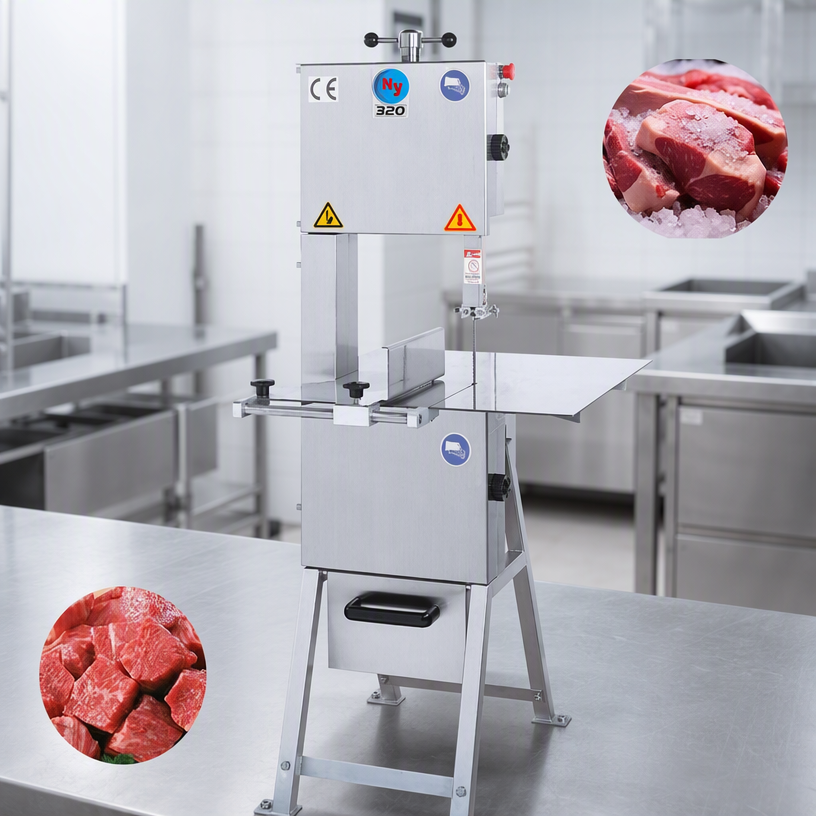

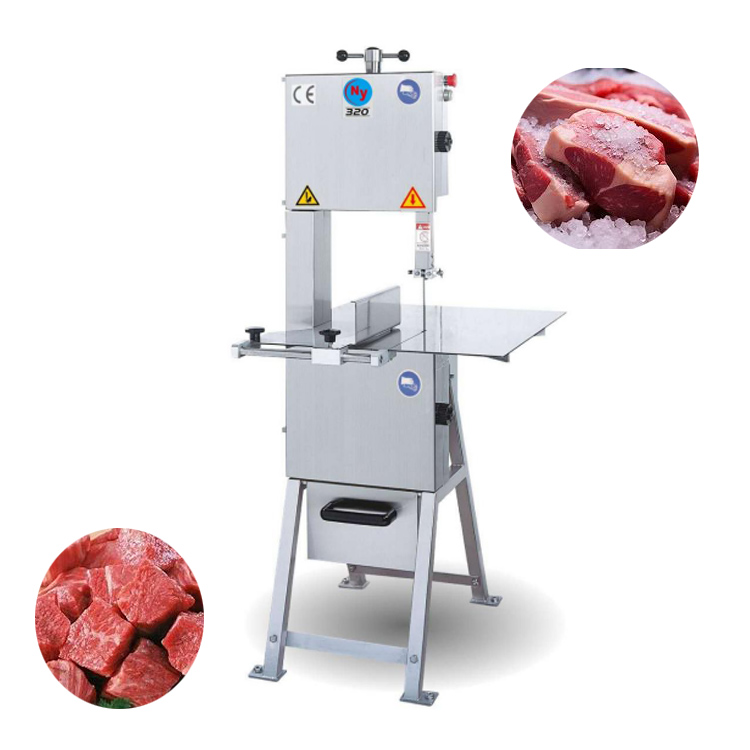

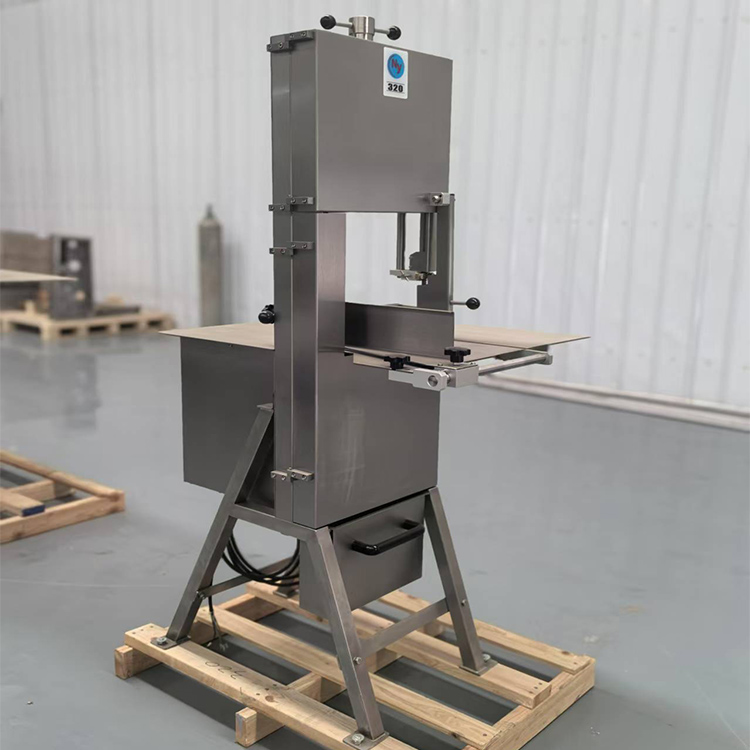

QD-320
QDMECH
AM-260821-002
Advantges
1. The whole machine is made of stainless steel SUS304, safe and hygienic, easy to clean.
2.High-speed saw cuts more smoothly and reduces meat chips.
3. It can make the best cutting effect, the least waste and the lowest cost.
4. Optional safety pusher design, improve work safety.
5.Table thickness is 5mm
Technical Parameters

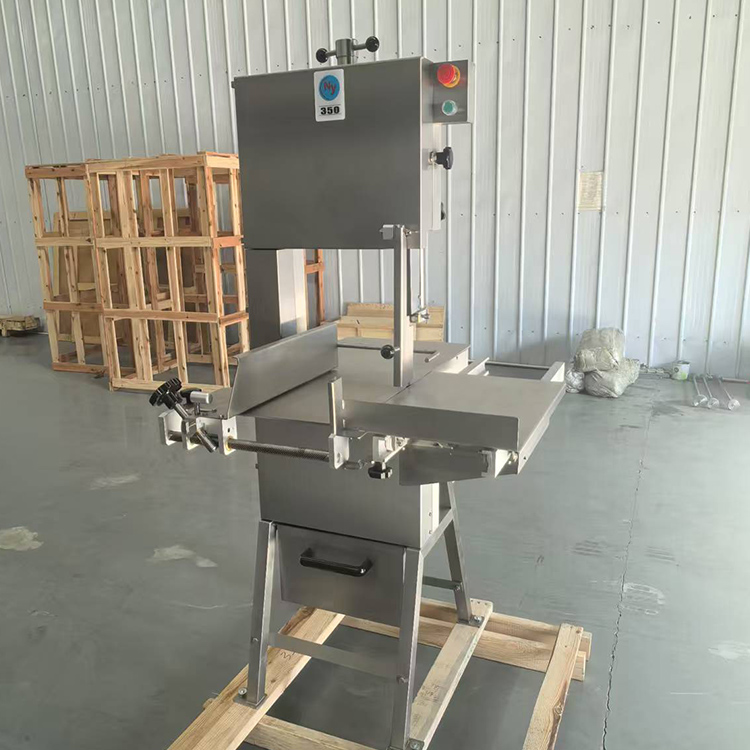

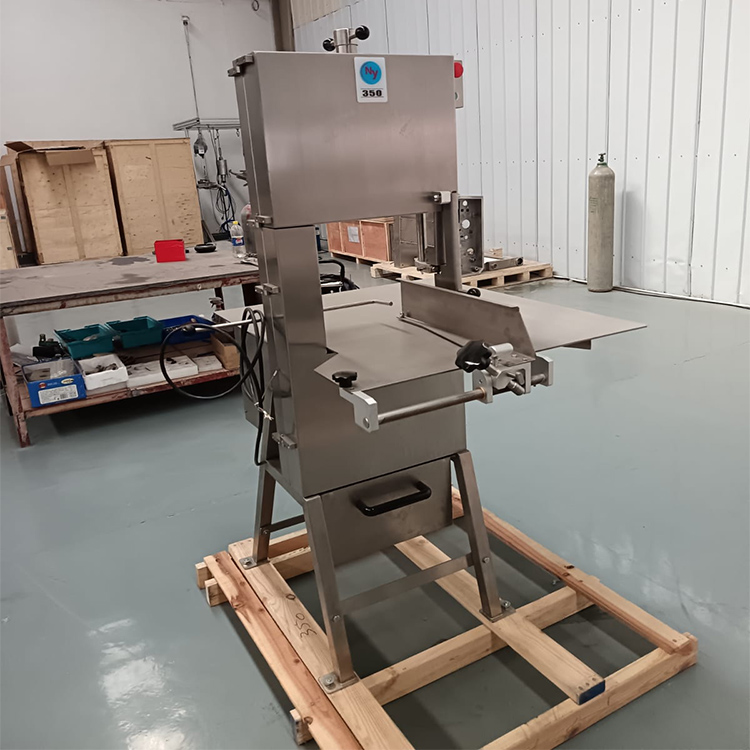

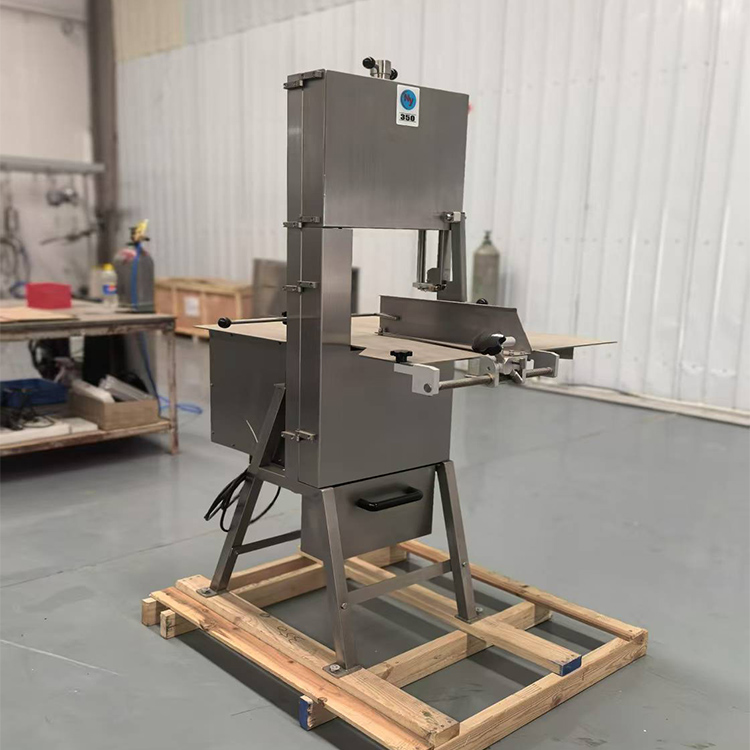

Model | QD-320 | QD-350(stationary tabletop) | QD-350(sliding tabletop) |
Dimension | 714*690*1672mm | 1028*778*1718mm | 1028*778*1718mm |
voltage | 380V | 380V | 380V |
power | 1.5KW | 2.2KW | 2.2KW |
weight | 125Kg | 140Kg | 140Kg |
Saw blade size | 2485*16*0.56mm | 2578mm | 2578mm |
Cutting speed | 28m/s | 32m/s | 32m/s |
Application
The bone saw machine uses a stainless steel shell and inner and outer frames. Compared with similar products, it is much heavier. The machine is thick, solid, stable, and will not shake when cutting. It can quickly saw bones into the desired size according to needs. It is easy to operate, saves time and effort, and has a wide range of uses.
FAQ
Q1: What materials can this bone saw machine cut?
A: It works for various bones, frozen meat, beef, pork and lamb carcass parts. It is for bone‑in meat processing, not for extra‑hard solid objects.
Q2: Are different models available for selection?
A: We have QD‑320, QD‑350 stationary tabletop and QD‑350 sliding tabletop for your option, with different dimension, power and cutting speed.
Q3: Can I get different voltage version?
A: Standard voltage is 380V. Custom voltage can be arranged according to your local power condition.
Q4: Does the machine come with safety pusher?
A: Safety pusher is optional accessory, which effectively improves operation safety during production.
Q5: Is it easy to clean the machine?
A: Main body adopts SUS304 stainless steel. Smooth surface allows quick washing, meets food‑grade hygiene requirements.
Q6: What is the table thickness?
A: The work table thickness is 5mm, solid and durable for heavy‑duty continuous work.
