QDMECH
HN-20260528-01
1.Food-Grade Hygiene & Safety
Made of imported 304 food-grade stainless steel, the machine ensures the produced tube ice is clean, odorless, and meets strict hygiene standards like HACCP and FDA, making it safe for direct contact with food and seafood.
2.High Efficiency & Low Energy Consumption
The welded evaporator design enables fast ice making with a short ice release time (completed within 90 seconds). It delivers high yield while saving energy, reducing operating costs with stable and continuous operation.
3.Fully Automatic & Easy Operation
Equipped with an intelligent control system, the machine supports automatic ice cutting, packaging, metering, and transportation, minimizing manual intervention and ensuring stable, trouble-free operation.
4.Durable & Reliable Performance
Built with a one-year warranty brand compressor and corrosion-resistant, pressure-resistant components, the machine is robust, low-maintenance, and suitable for long-term use in various harsh working environments.

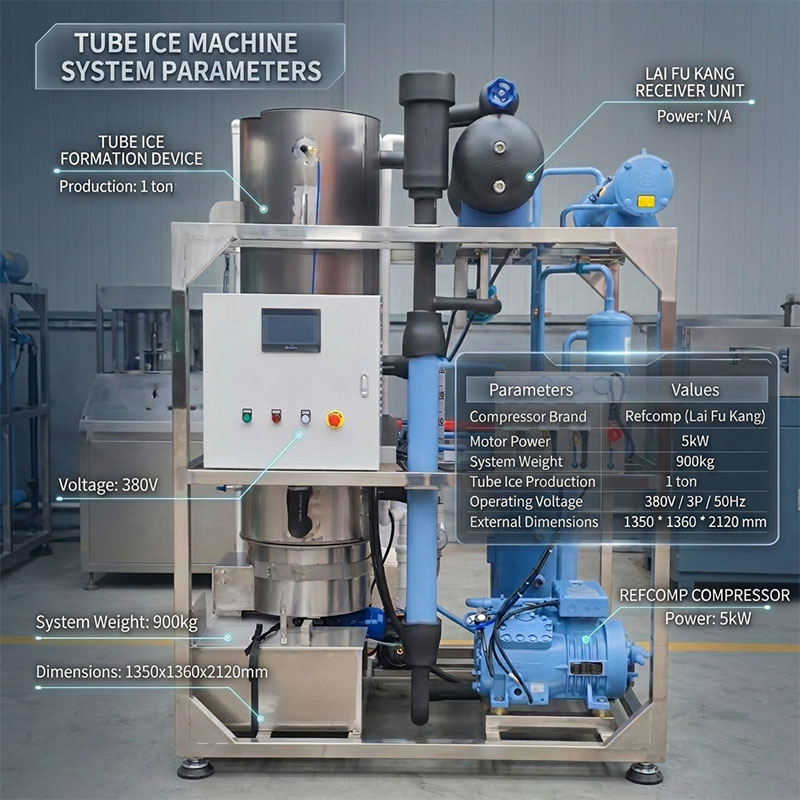

Parameter | Specification |
Production Capacity | 1 Ton/24h (customizable for larger models) |
Ice Type | Tube Ice |
Ice Diameter | 22mm / 28mm / 35mm (optional) |
Compressor Brand | Recomp (Lai Fu Kang) / Other famous brands |
Refrigeration Power | 5kW (customizable based on model) |
Voltage | 380V/3P/50Hz (customizable) |
System Weight | 900kg (1-ton model) |
External Dimensions | 1350×1360×2120mm (1-ton model) |
Evaporator Material | 304 Food-Grade Stainless Steel |
Ice Release Time | ≤90 seconds |

The standard model is 1 ton per 24 hours. We also support customized larger capacity models according to customer demands to meet different commercial and industrial ice-making needs.
It provides three optional ice diameters: 22mm, 28mm, 35mm. The tube ice is transparent, clean and uniform, perfect for seafood preservation and cooling use.
The whole machine adopts 304 food-grade stainless steel. It is corrosion-resistant, pressure-resistant, safe and hygienic, and the produced ice meets HACCP and FDA standards for direct food contact.

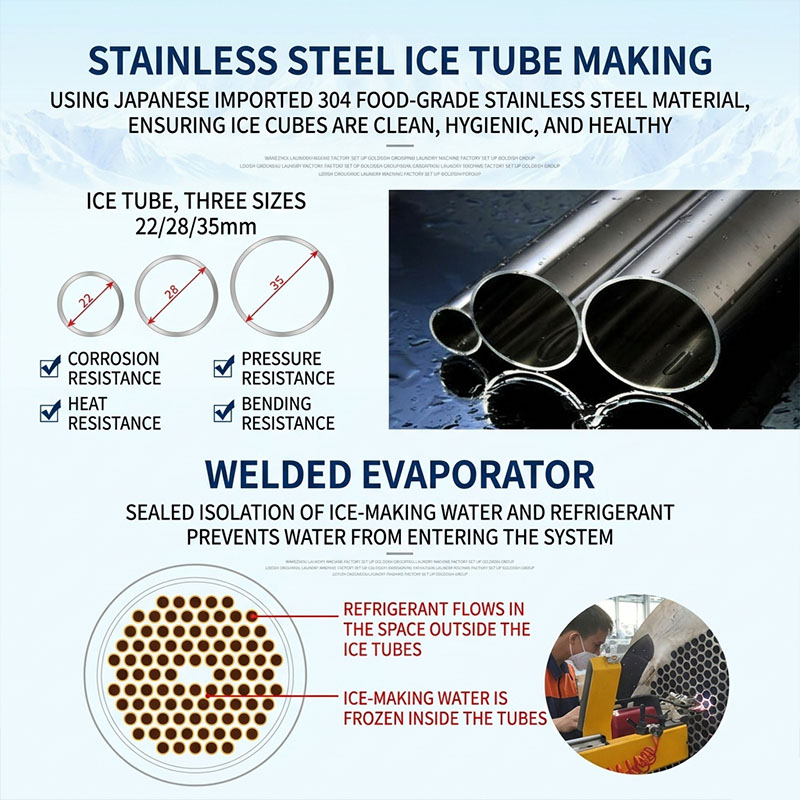

Equipped with welded evaporator design, the ice release time is within 90 seconds, featuring fast ice making speed, high output and stable continuous operation.
Standard configuration is 380V/50Hz, refrigeration power 5kW. Voltage and power can be customized to adapt to different national power supply standards.
