AM QDMECH Automatic Egg Roll Production Line with Mixing Baking and Rolling System for Snack Factory

Name: AM QDMECH Automatic Egg Roll Production Line with Mixing Baking and Rolling System for Snack Factory
Brand: QDMECH
Rating: 5.0 (30 reviews)

The QD-DJ15 Egg Roll Production Line is a comprehensive, fully automated solution designed for the large-scale manufacturing of crispy egg rolls and wafer sticks. This turnkey system integrates every stage of production—from batter mixing and precision baking to automatic cream filling, cutting, and final packaging. Built with high-grade stainless steel, it ensures hygiene, stability, and high output, making it the ideal choice for modern food factories aiming for efficiency and consistent quality.

Quantity:
Availability:





Inquiry Add to Cart

Model:
QD-DJ15
Brand:
QDMECH
Code:
AM-260422-007

Automatic egg roll production line Industrial wafer stick machine Commercial egg roll making machine Stainless steel biscuit stick machine High capacity egg roll maker Complete egg roll processing line Automatic wafer cone making machine CE certified bakery equipment Baking Machine Ice cream cone machine

Product Advantage

Technical Parameters

Application Scenarios

Product Video

Product Advantage

This QD-DJ15 Egg Roll Production Line is a comprehensive automated solution designed for the efficient manufacturing of crispy egg rolls, wafer sticks, and similar rolled snacks. The process begins with the automatic batter mixer and depositor, which precisely pours the mixture onto the baking plates. The batter is then baked into thin wafers, automatically rolled into shape by the rolling mechanism, and finally transported via the conveyor belt for cooling and packaging. This turnkey production line is ideal for snack food manufacturers, bakeries, and processing plants looking to scale up production while maintaining consistent product quality and shape.

Technical Parameters

1

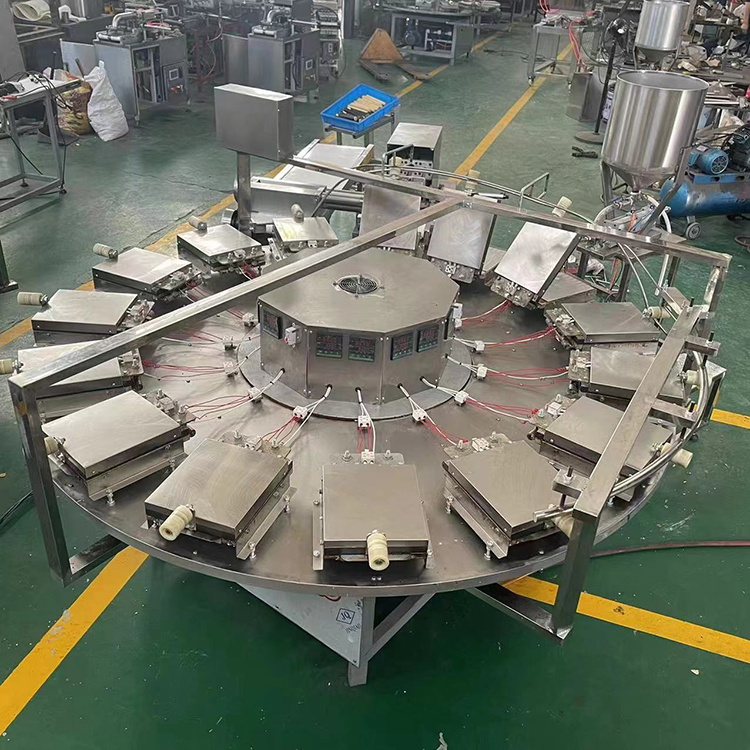

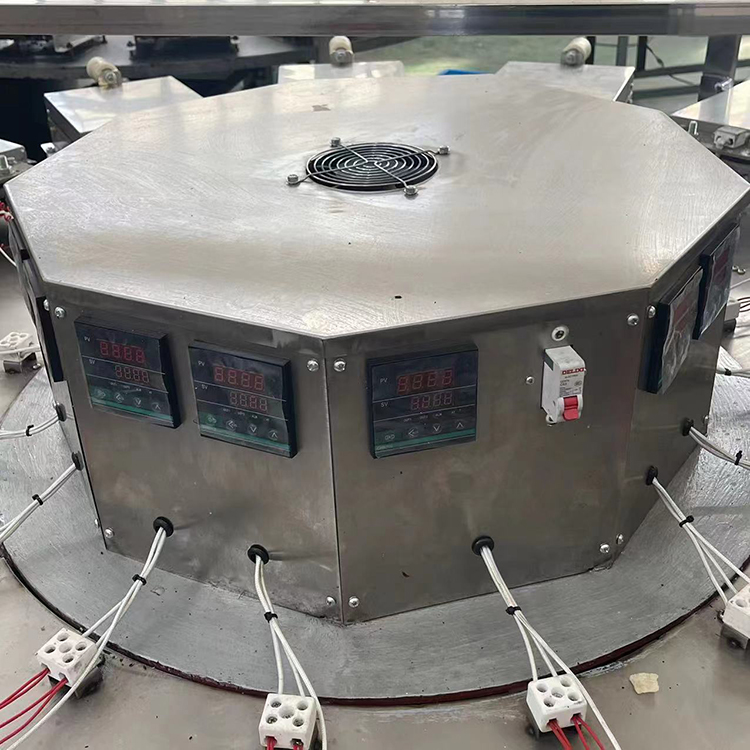

15HEADS EGG ROLL BAKER

Model NO.：QD-DJS15

Capacity：20kg/h

Power: 32kw

Voltage: 380v50hz

Weight: 750kg

Outer diameter:2000*1530mm

Baker size:220*280

Rotation speed：3r/min

Heating tube :220v50hz（2kw/head）

Material ：CARBON STEEL SHELF，SUS BODY

Application：making baking sheet by baking injecting mixture under certain temperature

Temperature:adjustable

2

AUTOMATIC FEEDING MACHINE

Size：600*550*1500mm

G.W.：150kg

Air pressure：5-6kgf/cm²

Material ：SUS

Application：The mixture is automatically conveyed to the baking head by means of an air pump and the extrusion volume is adjustable

3

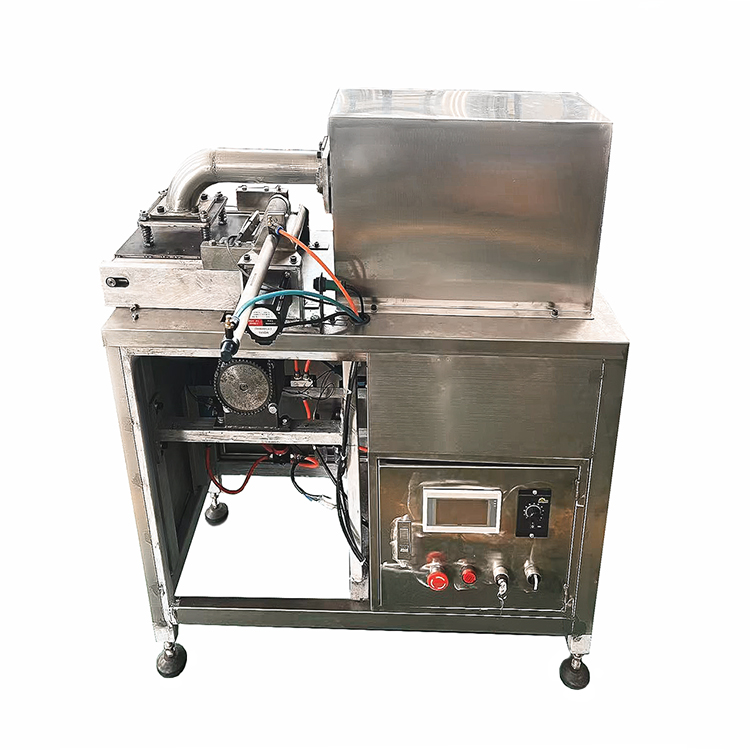

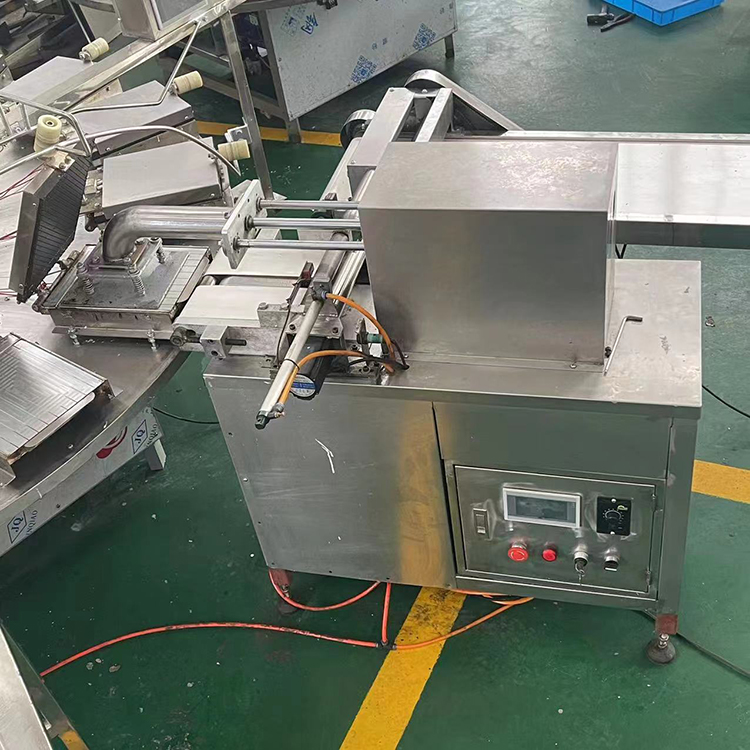

Automatic manipulator

Voltage：220v50hz

Power：1.1kw

Air pressure：5-6kgf/cm²

Size：800*700*1050

G.w.：220kg

Material：SUS

Application：The baked crust is automatically moved to the table top by this manipulator, which will automatically roll into a cylinder egg roll

4

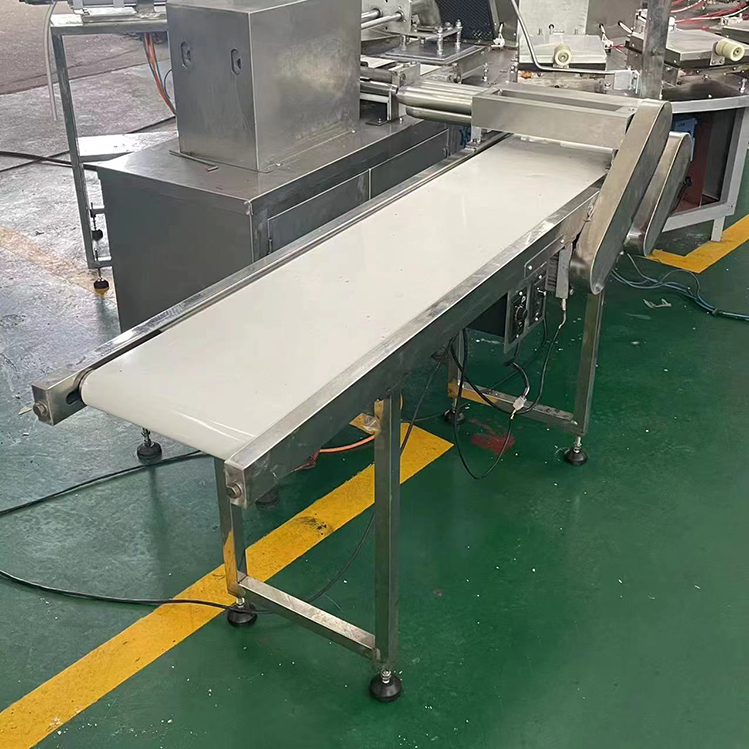

Convey belt

Power： 0.37kw

Voltage：220v50hz

Dimension:1500 * 600 * 880mm

G.w.：180kg

Material：SUS &Food grade PVC

Application：convey egg roll after formed well

5

Egg roll cutter

Power：0.6kw

Voltage：380v50hz 3 phase

Size: 1000*500*850mm

G.w.：200kg

Material：SUS

Application：Put long egg roll by human and it will cut into small segment based on customized size

Application Scenarios

This QD-DJ15 Egg Roll Production Line is a comprehensive automated solution designed for the efficient manufacturing of crispy egg rolls, wafer sticks, and similar rolled snacks. The process begins with the automatic batter mixer and depositor, which precisely pours the mixture onto the baking plates. The batter is then baked into thin wafers, automatically rolled into shape by the rolling mechanism, and finally transported via the conveyor belt for cooling and packaging. This turnkey production line is ideal for snack food manufacturers, bakeries, and processing plants looking to scale up production while maintaining consistent product quality and shape.

Product Video

https://chandamachine.en.made-in-china.com/product/ZxGUSmCAbDWd/China-Automatic-Chocolate-Wafer-Bar-Egg-Roll-Production-Line-Wafer-Biscuit-Roll-Making-Machine.html

FAQ

Q1: Is this machine suitable for a small home business?

A: This is an industrial-grade production line designed for factories with large floor space and high production volume requirements. If you are a small business, you might want to consider our semi-automatic single egg roll makers instead.

Q2: Can the line produce filled egg rolls (like chocolate or cream center)?

A: Yes, the production line can be equipped with an automatic cream filling machine (as seen in the quotation images) to inject various fillings into the egg rolls before they are cut and packed.

Q3: What is the installation process? Do you provide support?

A: We provide a turnkey solution. We will send engineers to your factory to install and debug the entire line, and train your workers on how to operate it. We also provide a detailed operation manual and video guides.

Q4: What is the lead time for such a large production line?

A: Typically, the production and testing time for a full line like the QD-DJ15 is around 30-45 working days after the deposit is received.

Q5: Can I customize the length or shape of the egg rolls?

A: Yes, the cutting machine and the baking molds can be customized to produce egg rolls of different lengths and diameters according to your market's preference.
